Fibre Channel ports
The 8/20q Fibre Channel Switch has twenty Fibre Channel ports. Ports are numbered 0–19 (Figure 3).
Each of the ports is served by a Small Form-Factor Pluggable (SFP+) transceiver and is capable of 8-Gb/s,
4-Gb/s, or 2-Gb/s transmission.
• SFPs are hot-pluggable.
• User ports can self-discover both the port type and transmission speed when connected to devices or
other switches.
• The port LEDs are located above ports 0–9 and below ports 10–19, and provide port login and activity
status information.
NOTE: Setting a Fibre Channel port that has an 8-Gb/s SFP transceiver to 1-Gb/s will down the port.

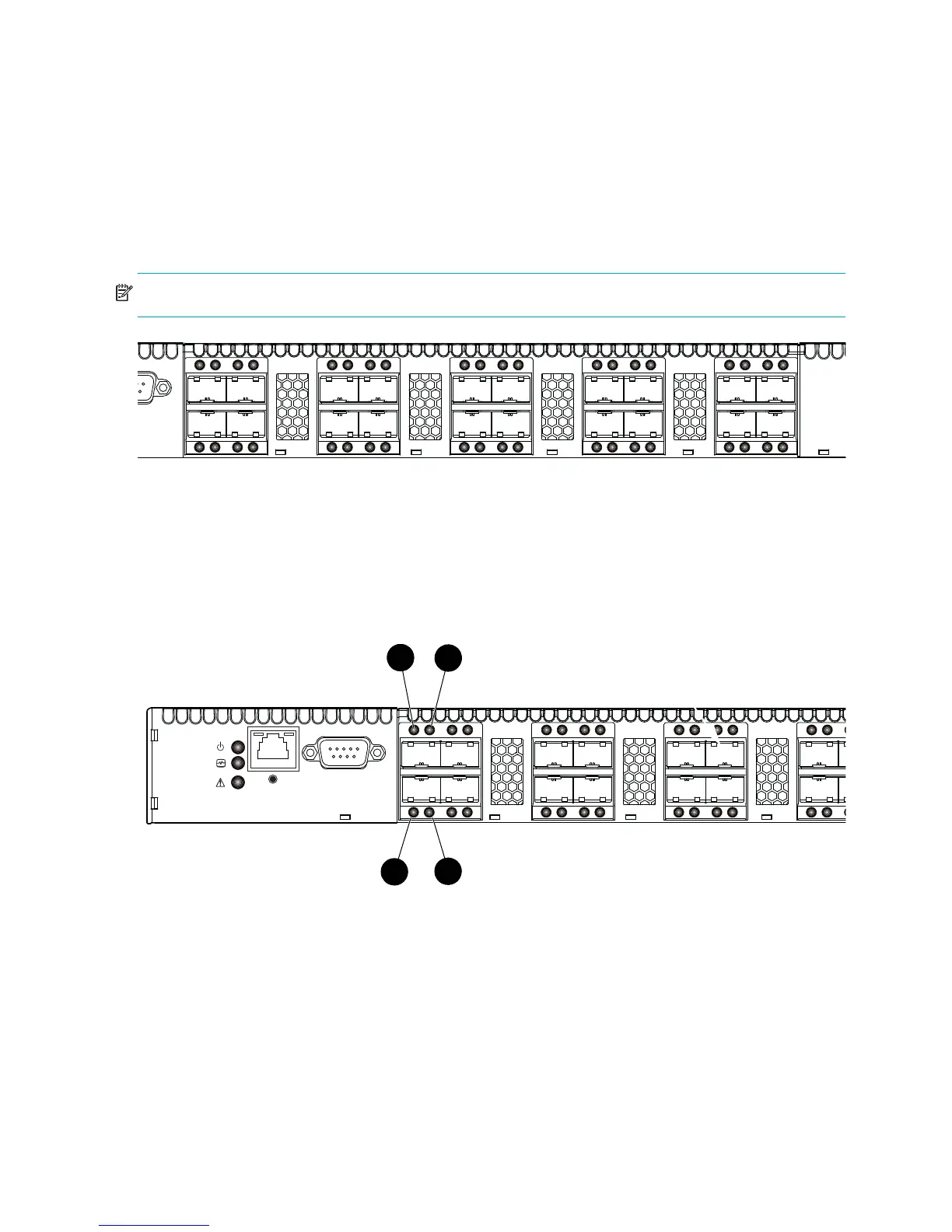

Figure 3 Fibre Channel ports
The 8/20q Fibre Channel Switch comes from the factory as an 8- or 16-port switch, enabling ports 0–7 or
0–15 respectively. You can enable additional ports up to the 20-port maximum using the HP StorageWorks
8/20q 4-port Upgrade License. For more information, see ”Installing feature license keys” (page 44).
Port LEDs
Each port has its own Logged-in LED (green) and Activity LED (green) (Figure 4).
Figure 4 Port LEDs
Port Logged-in LED (green)
The Logged-in LED indicates the logged-in or initialization status of the connected devices. After successful
completion of the POST, the switch extinguishes all Logged-in LEDs. Following a successful port login, the
switch illuminates the corresponding logged-in LED. This shows that the port is properly connected and
able to communicate with its attached devices. The Logged-in LED remains illuminated as long as the port
is initialized or logged in. If the port connection is broken or an error occurs that disables the port, the
Logged-in LED is extinguished. For more information, see ”Logged-in LED indications” (page 52).
01 2 89
10 11 12 13 14 15
34567
16 17 18 19
1 Logged-in LED (port 0) 2 Activity LED (port 0)
3 Activity LED (port 10) 4 Logged-in LED (port 10)
