HP StorageWorks 8/20q

HP StorageWorks 8/20q Fibre Channel Switch Installation and Reference Guide 33
Rack the switch
1. Remove and discard the four 10-32 screws from the sides of the switch.
2. Attach each rail to the switch using two 10-32 x .375-inch screws with captive washers (Figure 7).
Make sure the slotted ends of the rails are on the power-supply side (not the SFP-port side) of the switch.

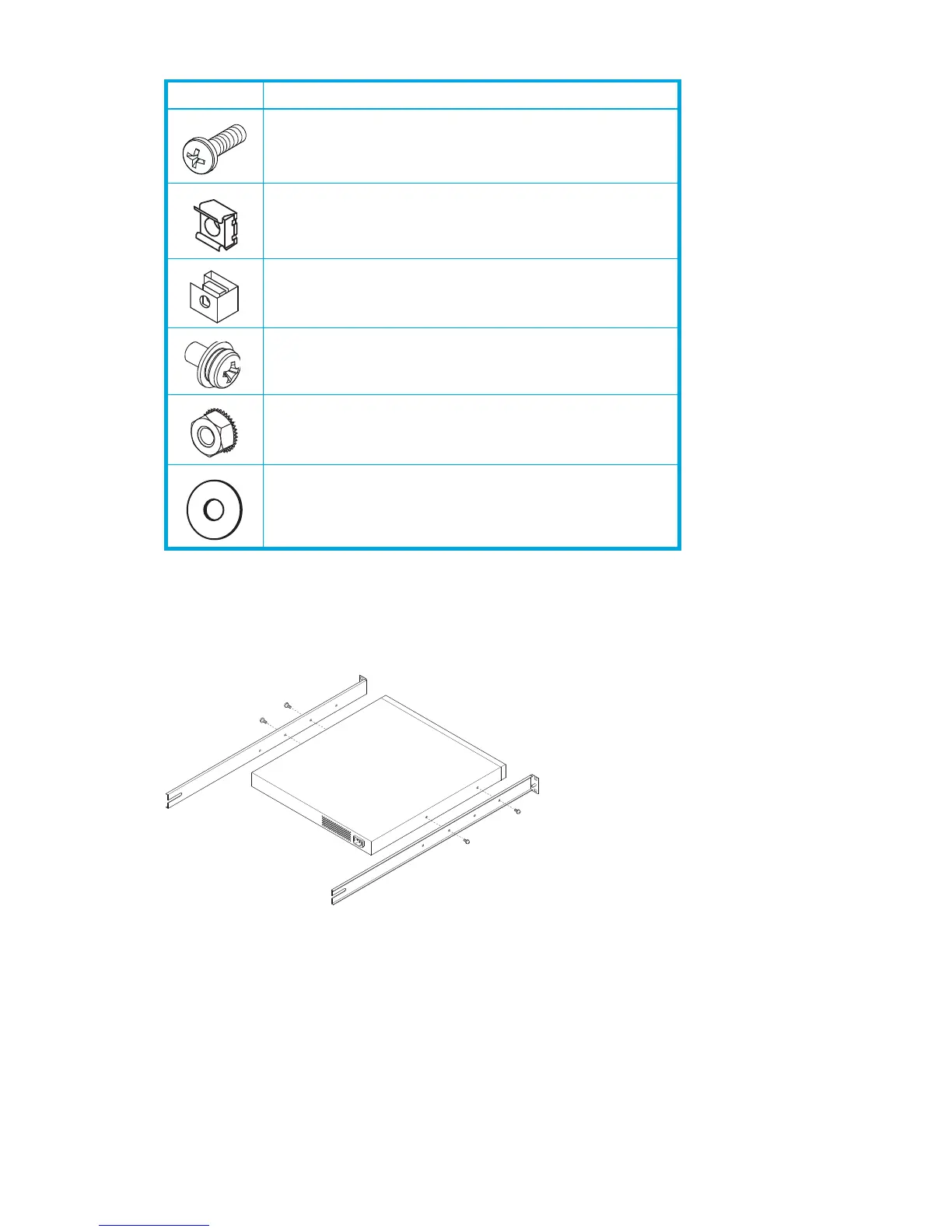

Figure 7 Attaching the rails to the switch
3. On the rack vertical posts, mark the holes that will be used by the rail flanges (three on each rear
vertical post, two on each front vertical post). Then, from the inside of each vertical post, insert an M6
cage-nut for the rack you are using (square or round hole) into each marked hole (Figure 8).
Ten (10) M6 machine screws
Ten (10) M6 cage-nuts for square rack holes
Ten (10) M6 cage-nuts for round rack holes
Four (4) 10-32 x
.375-inch screws with captive washers
Two (2) 1/4-20 hex nuts with lock washers
Two (2) 1/4-inch flat washers
Table 9 8/20q and SN6000 Fibre Channel Switch rack mount kit hardware
Item Description
