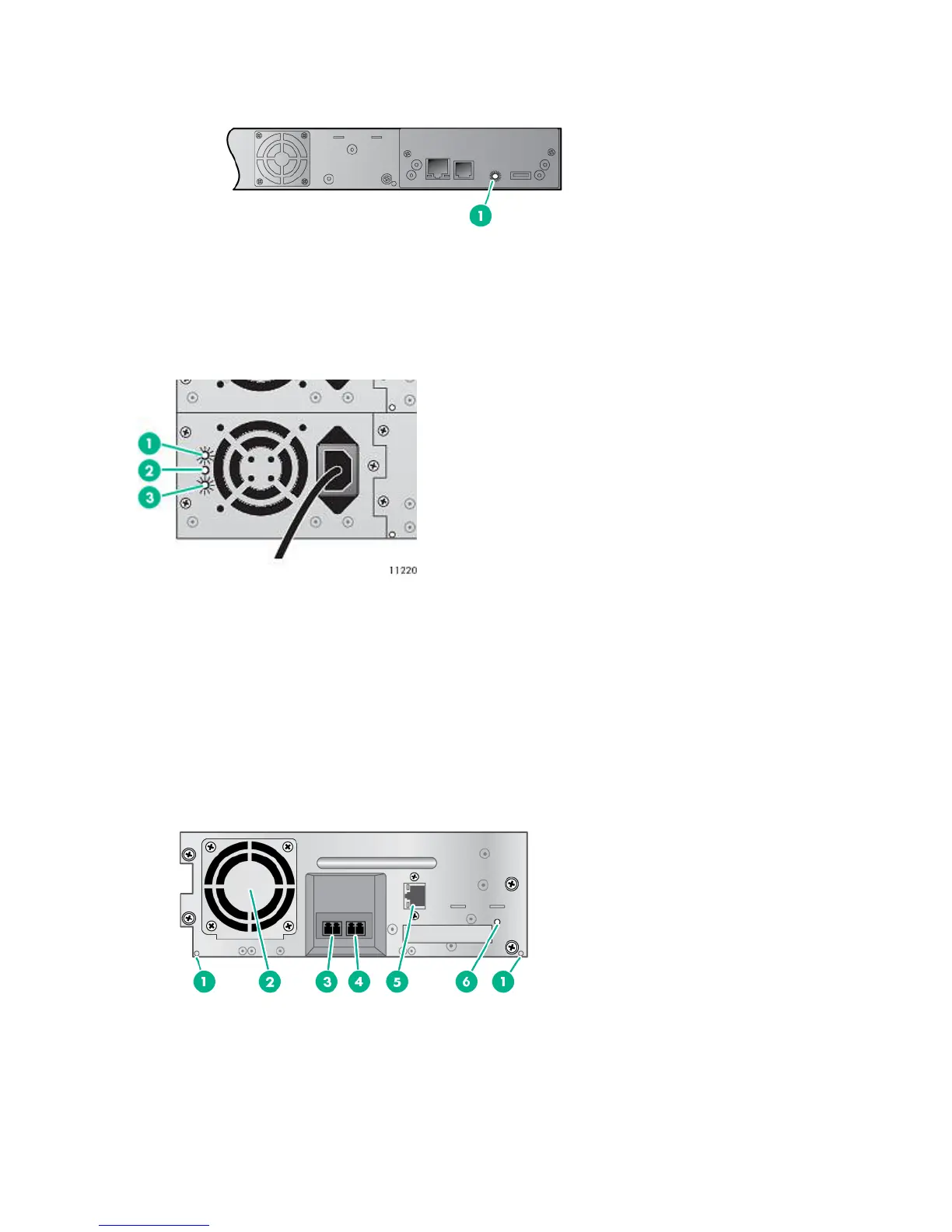

Figure 8 Controller health status indicator location
1. Controller health status LED
Power supply back panel (MSL4048, MSL8084, and MSL8096)
Figure 9 Power supply LEDs
AC power is connected.1. Blue
Fan failure. The fan is running too slow or is defective.2. Yellow
The power supply is producing good power for the library.3. Green
Tape drive back panels
Fibre Channel
LTO-4 and LTO-5 full-height
1. Magazine release hole
2. Fan
3. FC port A
4. FC port B (when present)
