To remove the library controller:
1. Loosen the two blue thumbscrews on the library controller and remove it from the library,
as shown in Figure 113 (page 200).

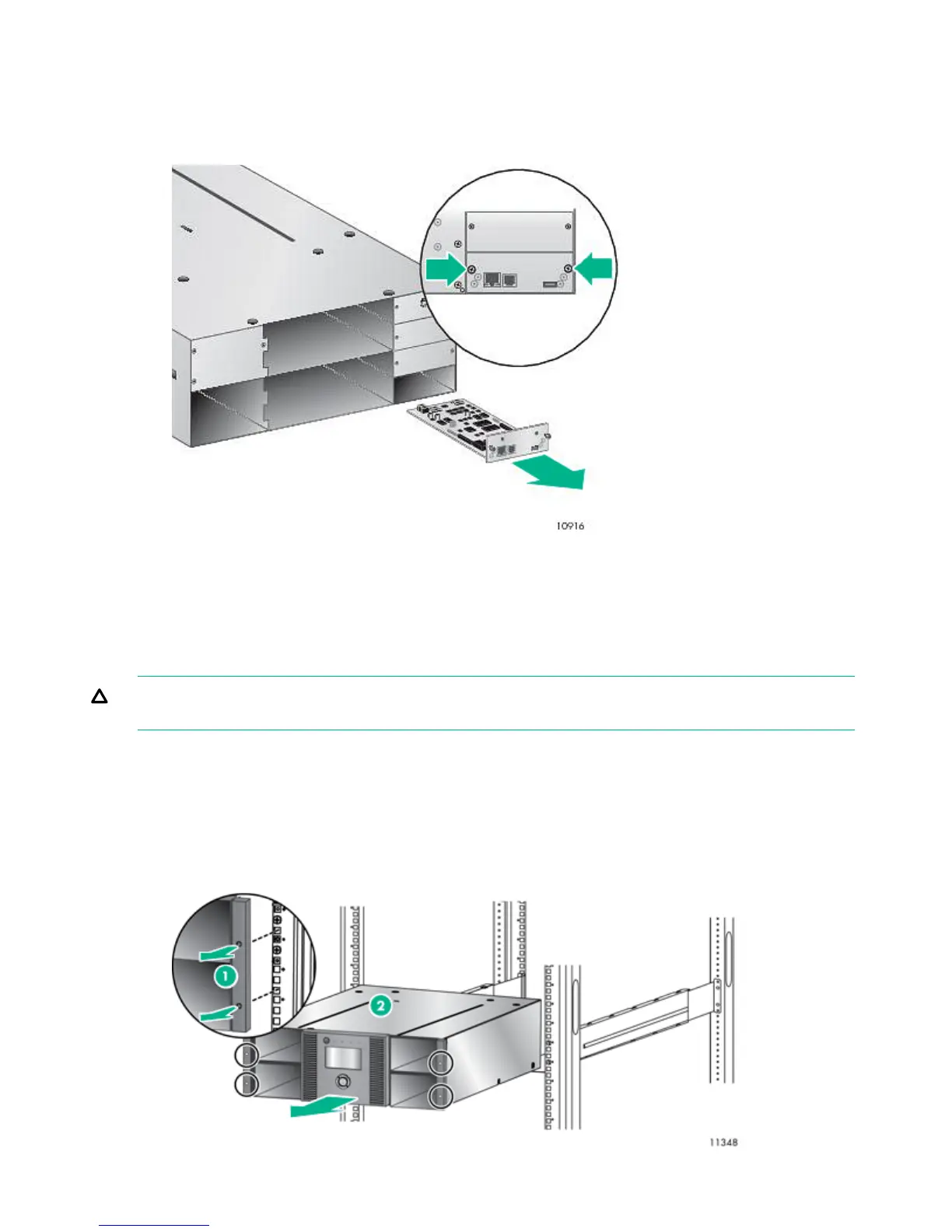

Figure 113 Removing the library controller
2. Place the library controller into a static safe bag.
Removing the base chassis
You will need a #2 Phillips screwdriver to remove and replace the base chassis assembly from
the rack or cover.
CAUTION: Lift the library from the side edges. Lifting the library from the magazine or tape
drive openings can damage the library.
To remove the base chassis from the rack or table top conversion cover:
1. Obtain adequate assistance to lift and stabilize the library during removal and replacement.
2. From the front of the library (see Figure 114 (page 200), 1) loosen the screws inside the left
and right front bezel (these are captive screws and cannot be removed), then 2) slide the
library out of the rack or cover using assistance.
Figure 114 Removing the base chassis from the rack
200 Upgrading and servicing the tape library
