5. Tape drive Ethernet port (when present)
6. Tape drive power indicator

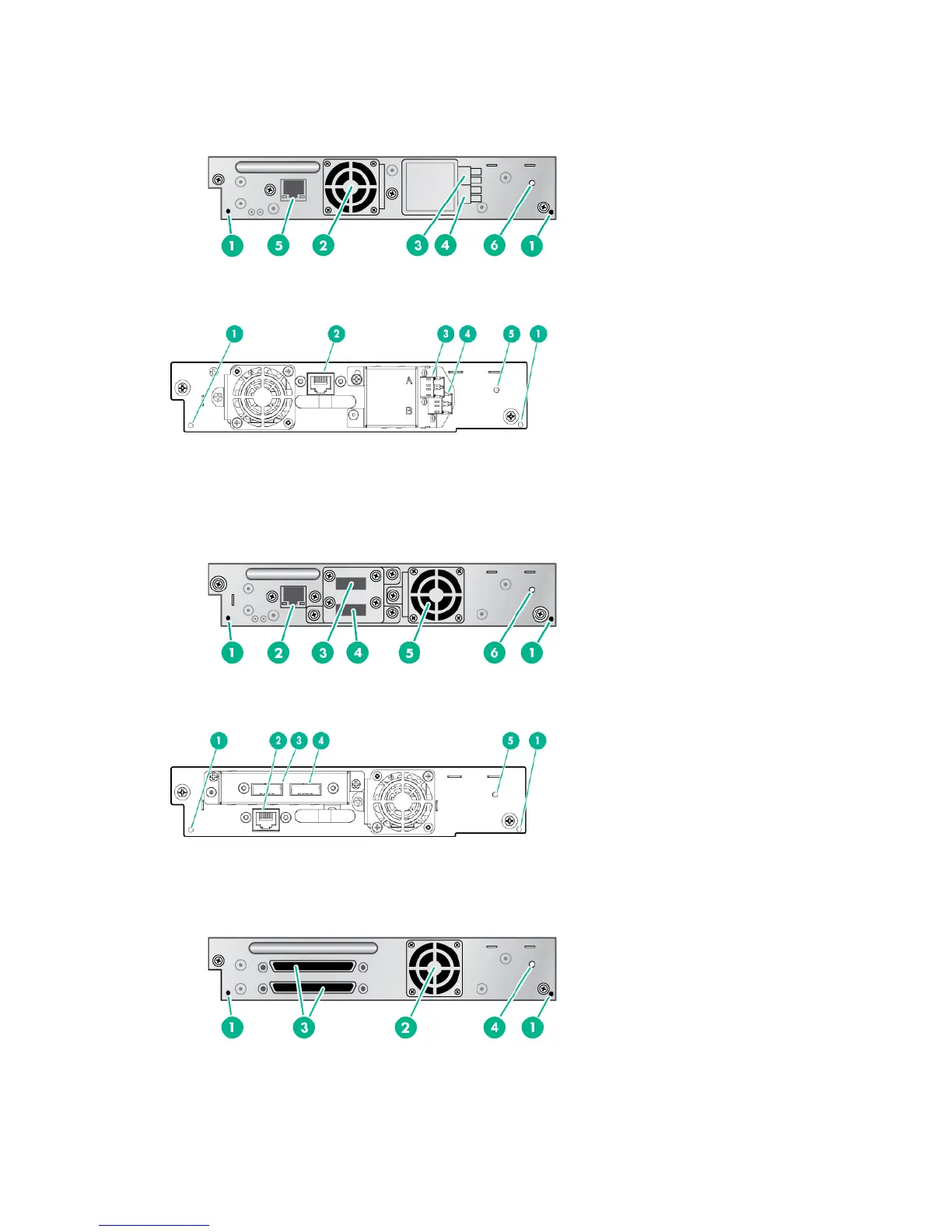

LTO-5 half-height and LTO-6
1. Magazine release hole
2. Fan
3. FC port A
4. FC port B (when present)
5. Tape drive Ethernet port
6. Tape drive power indicator
LTO-7
1. Magazine release hole
2. Tape drive Ethernet port
3. FC port A
4. FC port B
5. Tape drive power indicator
SAS
LTO-4, LTO-5, and LTO-6
1. Magazine release hole
2. Tape drive Ethernet port (when present)
3. SAS port A
4. SAS port B (when present)
5. Fan
6. Tape drive power indicator
LTO-7
1. Magazine release hole
2. Tape drive Ethernet port
3. SAS port A
4. SAS port B
5. Tape drive power indicator
Parallel SCSI
1. Magazine release hole
2. Fan
3. Parallel SCSI ports
4. Tape drive power indicator
Tape drive power indicator
Each tape drive has a green power indicator LED, which indicates that the tape drive is powered
on.
Tape drive back panels 13
