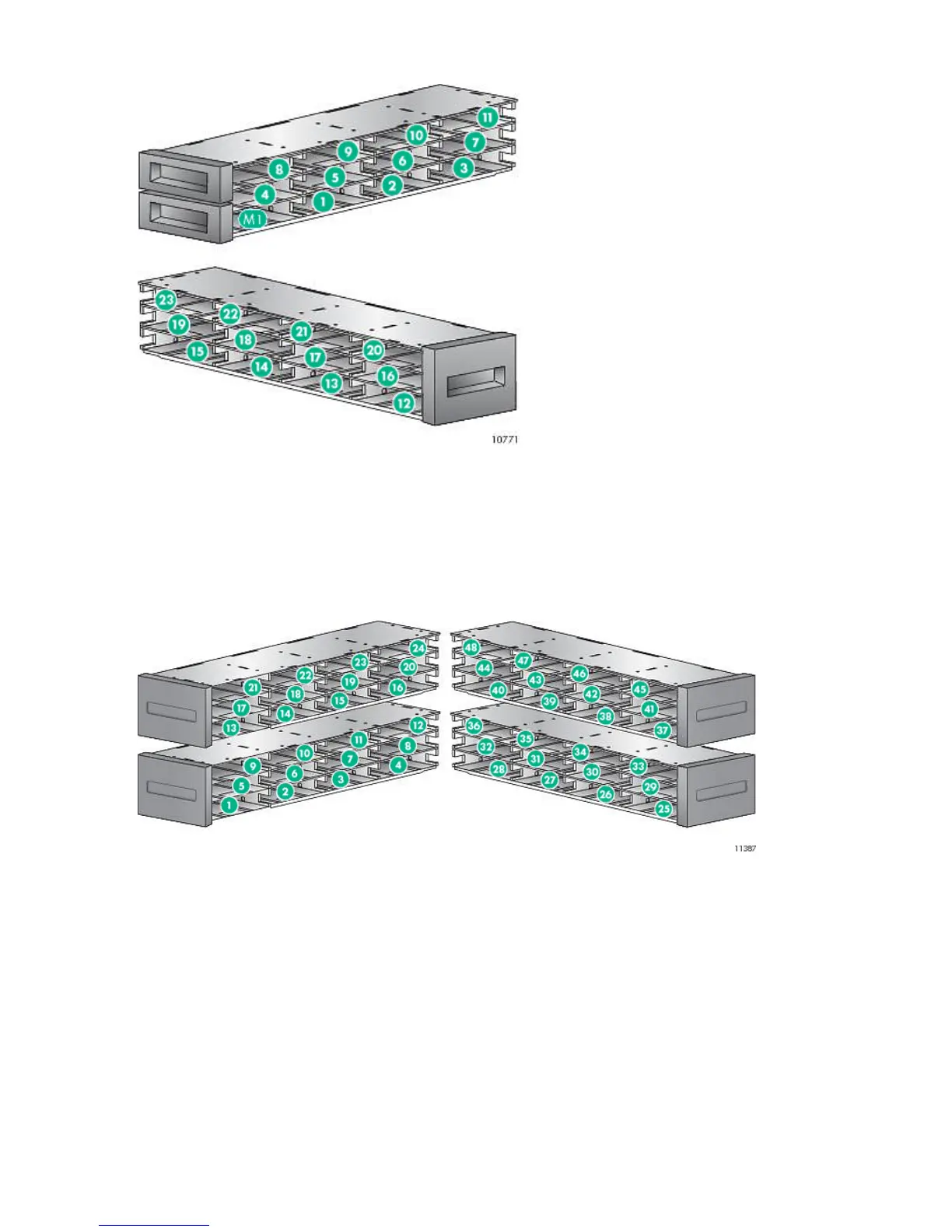

Figure 20 MSL2024 slot numbering with the single mailslot enabled
When the mailslot is disabled, the mailslot (M1) becomes Slot 1 and all other slots are re-numbered
accordingly.
On the MSL4048, MSL8048, and MSL8096, the storage slots are numbered starting with the of
the lower-left magazine, as shown in Figure 21 (page 48), Figure 22 (page 49), and
Figure 23 (page 49).
Figure 21 MSL4048 slot numbering with mailslot disabled
48 Tape cartridges and magazines
