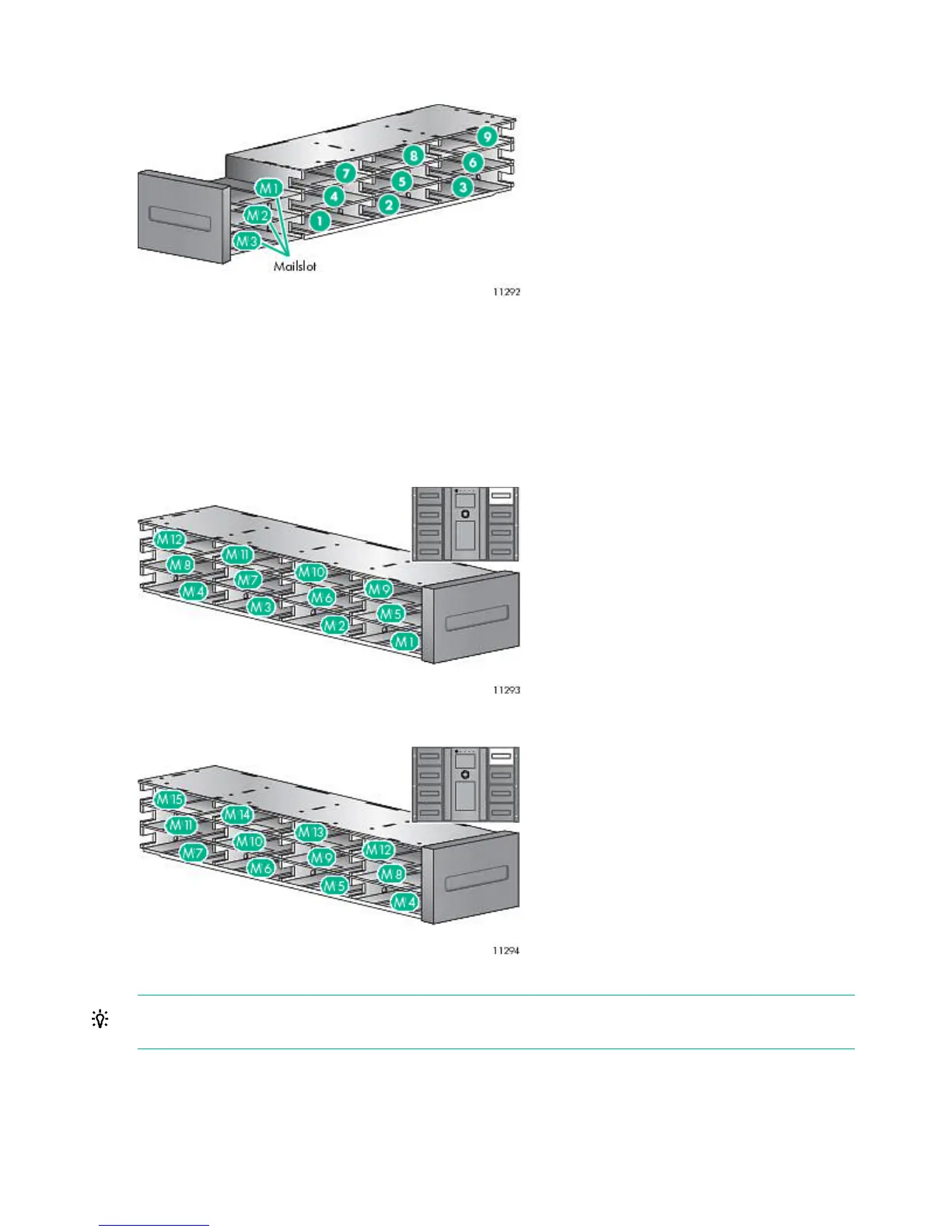

Figure 24 MSL4048, MSL8048, and MSL8096 lower-left magazine slot numbering with
mailslot enabled
On the MSL8096, when the upper-right mailslot is enabled, the numbering of the storage slots
in the other magazines is not affected. Mailslot numbering for the upper-right magazine when
just the upper-right mailslot is enabled is shown in Figure 25 (page 50). When both mailslots are
enabled, the mailslot numbers in the upper-right magazine are adjusted, as shown in
Figure 26 (page 50).
Figure 25 MSL8096 upper-right magazine slot numbering with only the upper-right mailslot
enabled
Figure 26 MSL8096 upper-right magazine slot numbering with both mailslots enabled
TIP: For the slot numbering for your library in its current configuration, see the RMI's Viewing
the tape cartridge inventory (page 64).
