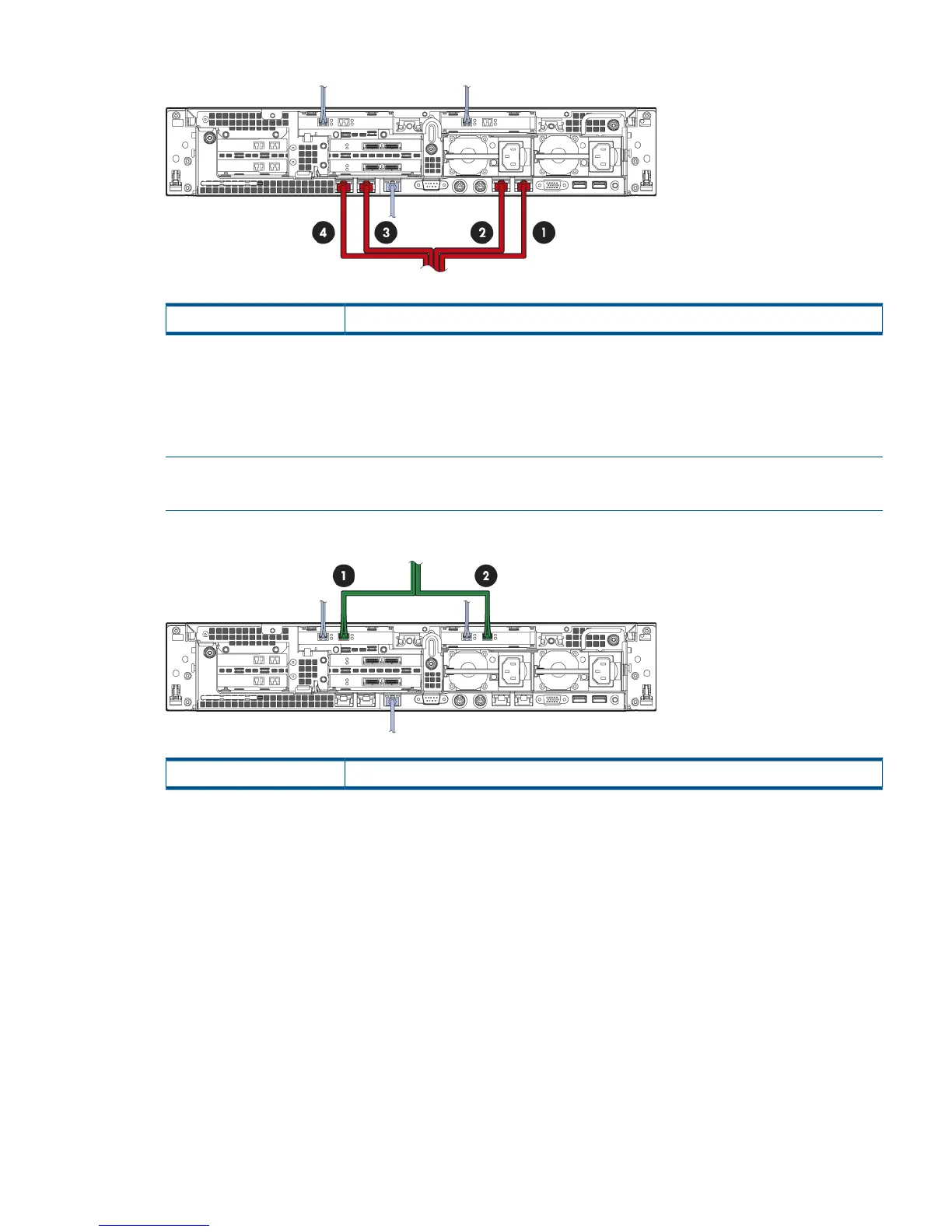

Figure 5 Template 2 cabling to customer's networks
bonded 1 GbE ports to customer's data and management network1, 2, 3 and 4
Template 3, uses 10GbE network only
Template 3 supports users who have a 10GbE network only. The same network is used for data
and management.
The recommended IP address range is 17 in total: 1 for management and 16 contiguous for data.
NOTE: When using a 10GbE network, you must provide the correct SFPs for your environment.
They are not supplied with the product.
Figure 6 Template 3 cabling to customer's networks
bonded 10 GbE ports to customer's data and management network1 and 2
Template 4, uses two 1GbE networks
Template 4 supports users who have two 1GbE networks. One 1 GbE network is used for data;
the other is used for management. The gateway must be in the same sub-net as the network that
is being used to connect to remote sites. This is normally the data path sub-net, for example used
for remote/external site replication traffic.
The recommended IP address range is 25 in total: 16 contiguous on the data sub-net; 1 + 8
contiguous on the management sub-net.
Supported network configurations (templates) 13
