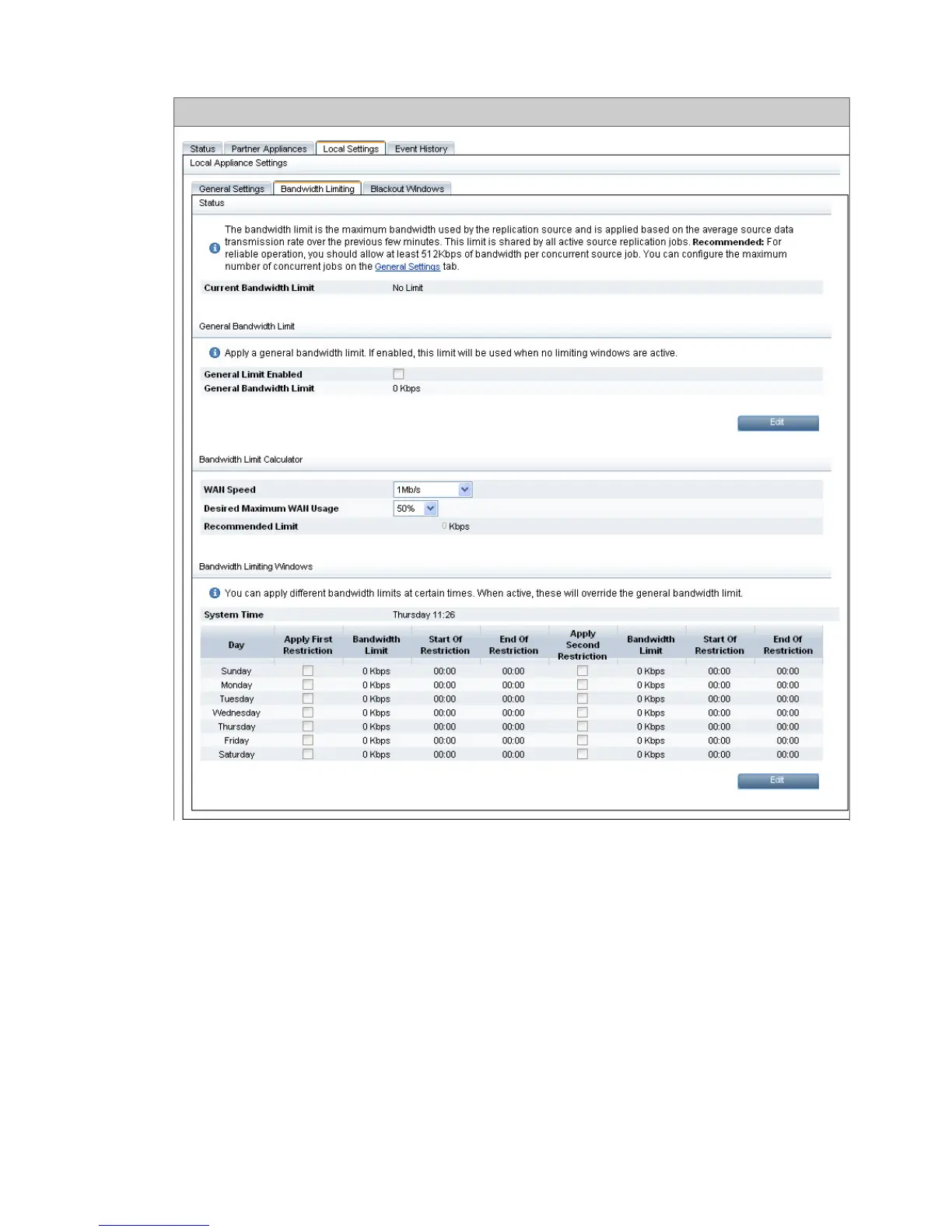

1. Display the Bandwidth Limiting tab.
2. Check the General Limiting Enabled box. You can now work out the recommended general
bandwidth limit, which is a simple calculation of:
(Max WAN Speed) x (Max Desired WAN Usage%).
A Bandwidth Limit Calculator is provided on this tab to work out limit values, if required.
3. Click Edit to edit the Bandwidth Limiting Windows.
You can configure two windows for each day. Use the spinners to select the Start of and End
of Restriction times. Enter the appropriate Bandwidth Limit in each required window. (If you
have used the Bandwidth Limit Calculator, enter the value from the Recommended Limit field.)
Be sure to check the appropriate Apply First/Second Restriction checkbox(es). This ensures
the times that have been specified are enabled. If it is not checked, the times are ignored.
52 Replication functions
