Rear Panels
The rear panel configurations of the UPS are shown in Figures 1-2, 1-3, 1-4, 1-5, and 1-6.
7
1
4
5
3
2
6

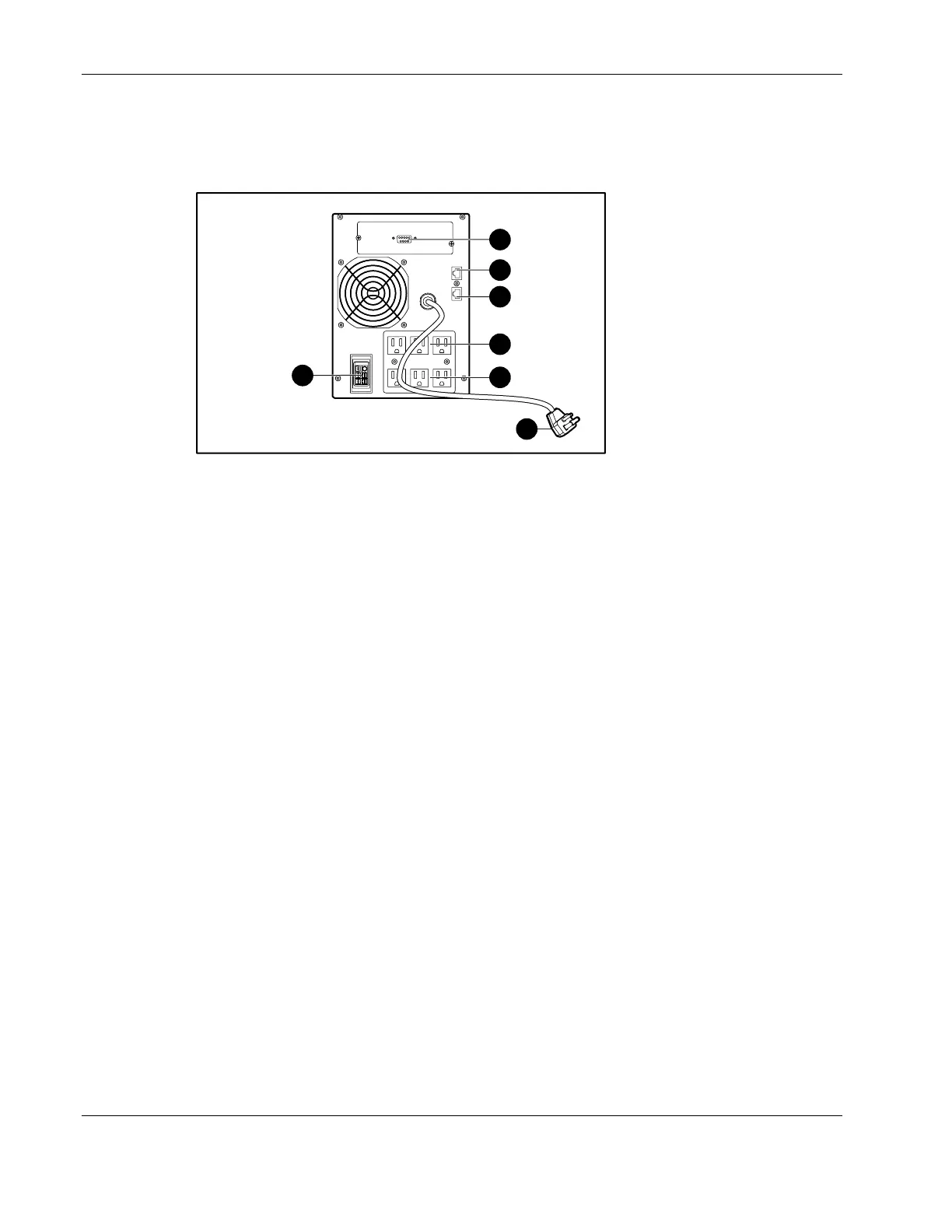

Figure 1-2: Rear panel of T1000 XR NA
1 Communications port/option slot
2 Network Transient Protector OUT jack
3 Network Transient Protector IN jack
4 Load segment 1 (three NEMA 5-15 receptacles)
5 Load segment 2 (three NEMA 5-15 receptacles)
6 Power cord with NEMA 5-15 plug
7 ERM connector

HP T1500 XR Specifications

General

Form Factor	Tower
Interface	USB
Frequency	50/60 Hz
Battery Type	Sealed lead-acid
Topology	Line Interactive
Transfer Time	4 ms
Operating Temperature	0°C to 40°C
Humidity	0% to 95% non-condensing
Storage Temperature	-4°F to 122°F (-20°C to 50°C)
