Battery Maintenance
HP Uninterruptible Power System T1000 XR and T1500 XR Models User Guide 4-5
HP CONFIDENTIAL Codename: Sherman Part Number: 216164-002 Last Saved On: 8/27/02 4:20 PM
3. Remove the metal battery bracket and set it to the side.

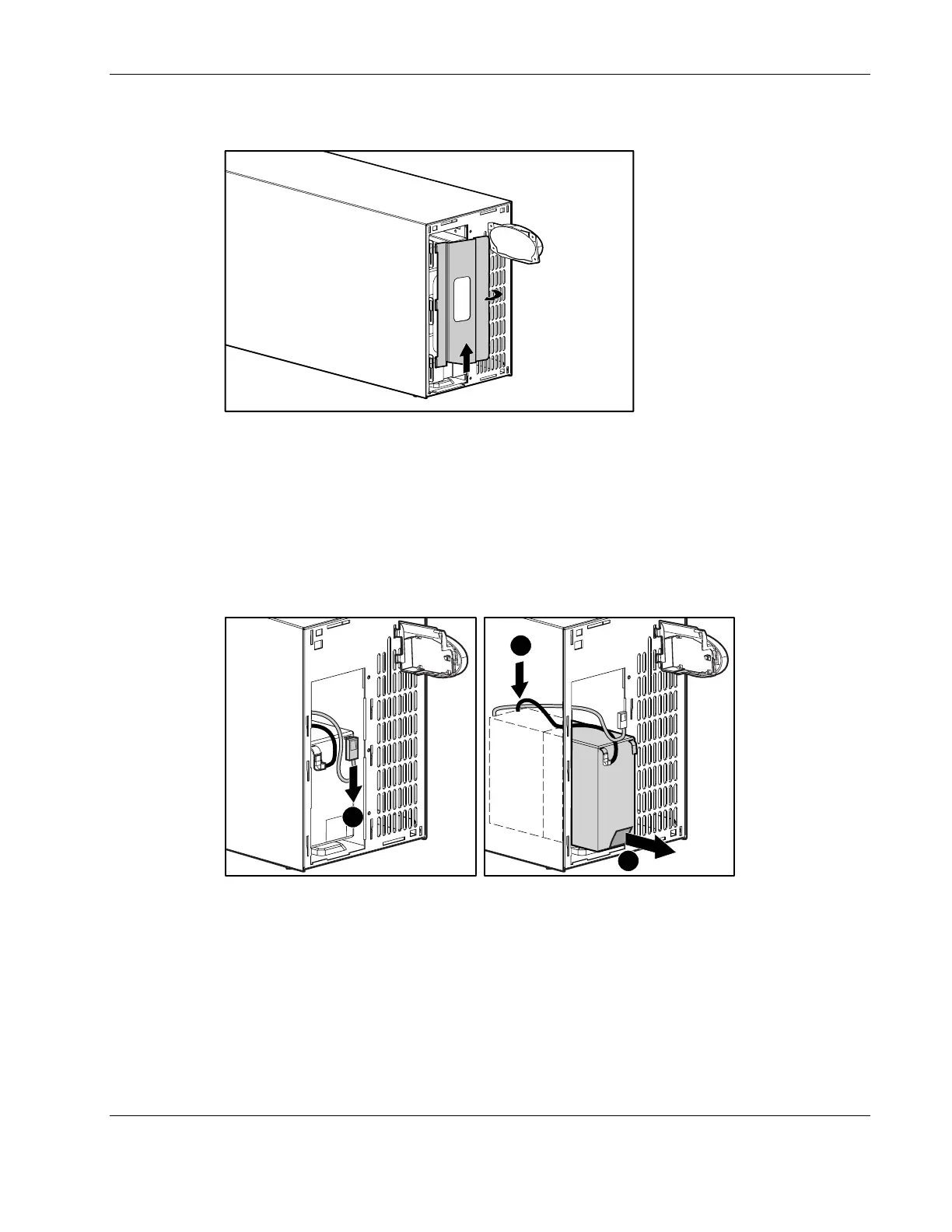

Figure 4-4: Removing the metal battery bracket
Removing the Battery Pack—UPS T1000 XR Models
To remove the battery pack:
1. Disconnect the positive (red) battery cable on the front of the battery pack (1). Remove
the battery pack to gain access to the rear battery cables (2). Disconnect the negative
(black) battery cable on the rear of the battery pack (3).
1
2
3
Figure 4-5: Disconnecting the battery cables

HP T1500 XR Specifications

General

Form Factor	Tower
Interface	USB
Frequency	50/60 Hz
Battery Type	Sealed lead-acid
Topology	Line Interactive
Transfer Time	4 ms
Operating Temperature	0°C to 40°C
Humidity	0% to 95% non-condensing
Storage Temperature	-4°F to 122°F (-20°C to 50°C)
