Item Description Item Description
1 Cover for internal USB ports 5 Headphone jack
2 Power On/Off 6 Microphone jack
3 ATA flash disk activity LED 7 Two front USB 2.0 ports
4 Power status LED

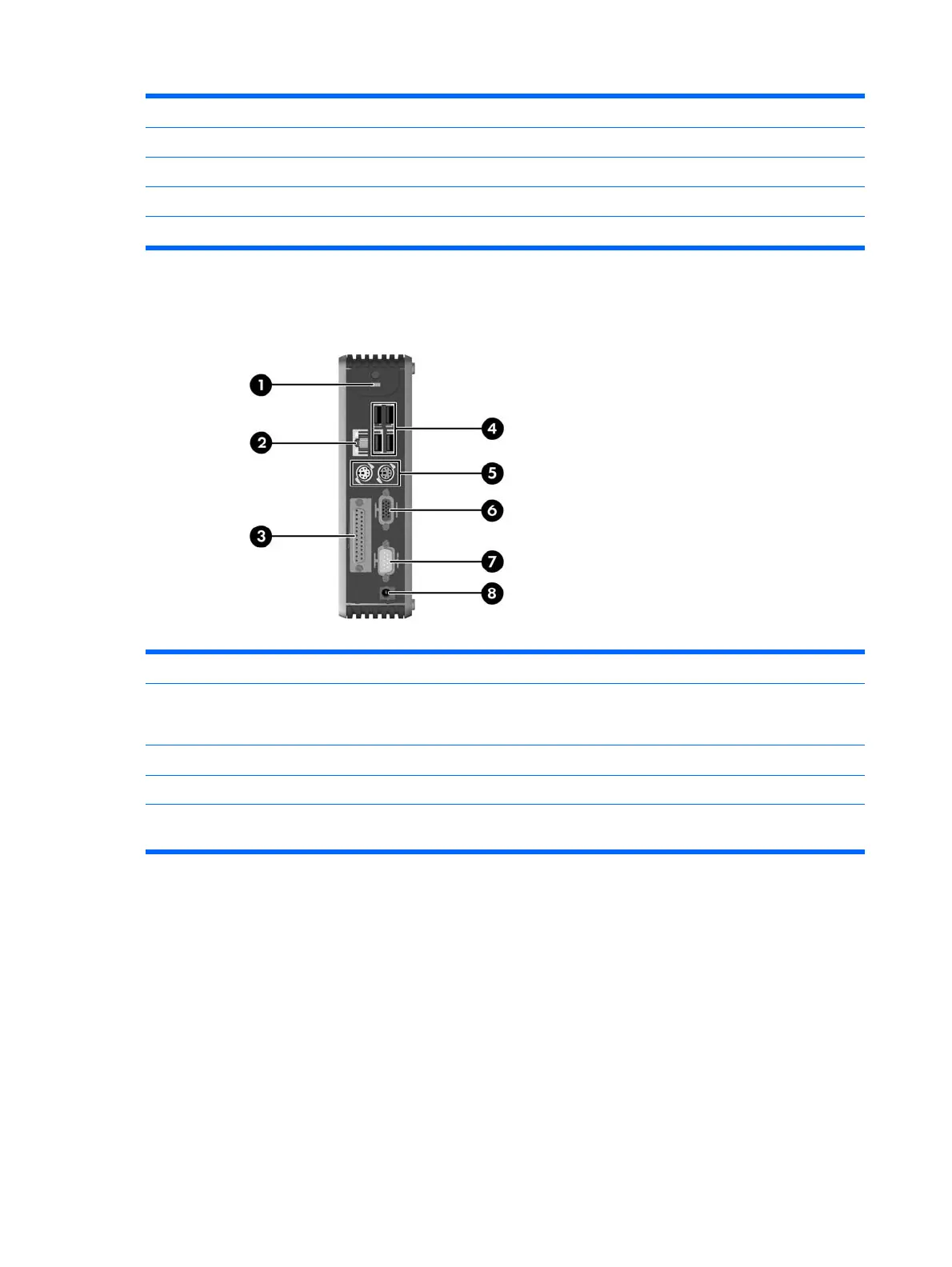

Rear View
Figure 1-2 Rear view
Item Description Item Description
1 Chassis cable lock slot and
cover for the secured internal
USB 2.0 ports compartment.
5 PS/2 mouse (lime) and
keyboard (purple) connectors
2 RJ-45 Network connector 6 Video connector
3 Parallel connector 7 Serial connector
4 Four USB 2.0 ports 8 Power connector (12V, 3.33A
DC)
Serial Number Location
The serial number is displayed on the side of the unit.
Figure 1-3 Serial number location
2Chapter 1 Product Description ENWW
