1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
Remove the top cover:

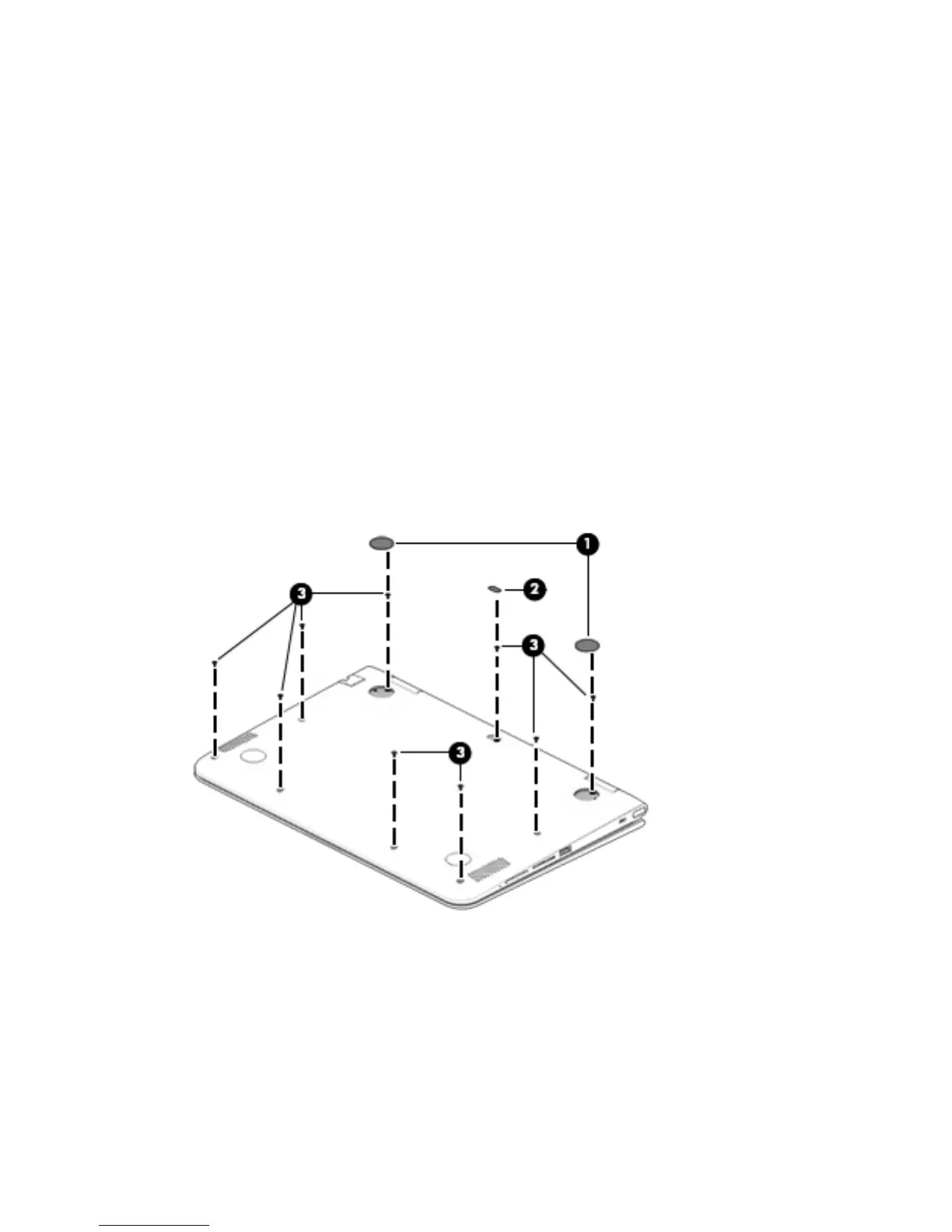

1. Position the computer upside-down.
2. Pry the two rear rubber feet o the bottom cover (1).
3. Pry the screw cover o the bottom cover (2).
Rubber feet and rubber screw cover are available in the Rubber Kit, spare part numbers:
Silver HP Pavilion x360 models: 809550-001
Red HP Pavilion x360 models: 809551-001
Green HP Pavilion x360 models: 809552-001
Purple HP Pavilion x360 models: 816522-001
Silver HP x360 310 G2 models: 824141-001
4. Remove the nine Phillips PM2.5×6.0 screws (3) that secure the top cover to the computer.
5. Position the computer upright, and then open the computer as far as possible.
30 Chapter 5 Removal and replacement procedures for Authorized Service Provider parts
