6. To remove the antenna cables:
NOTE: The antenna cables are available using spare part number 809530-001.
▲

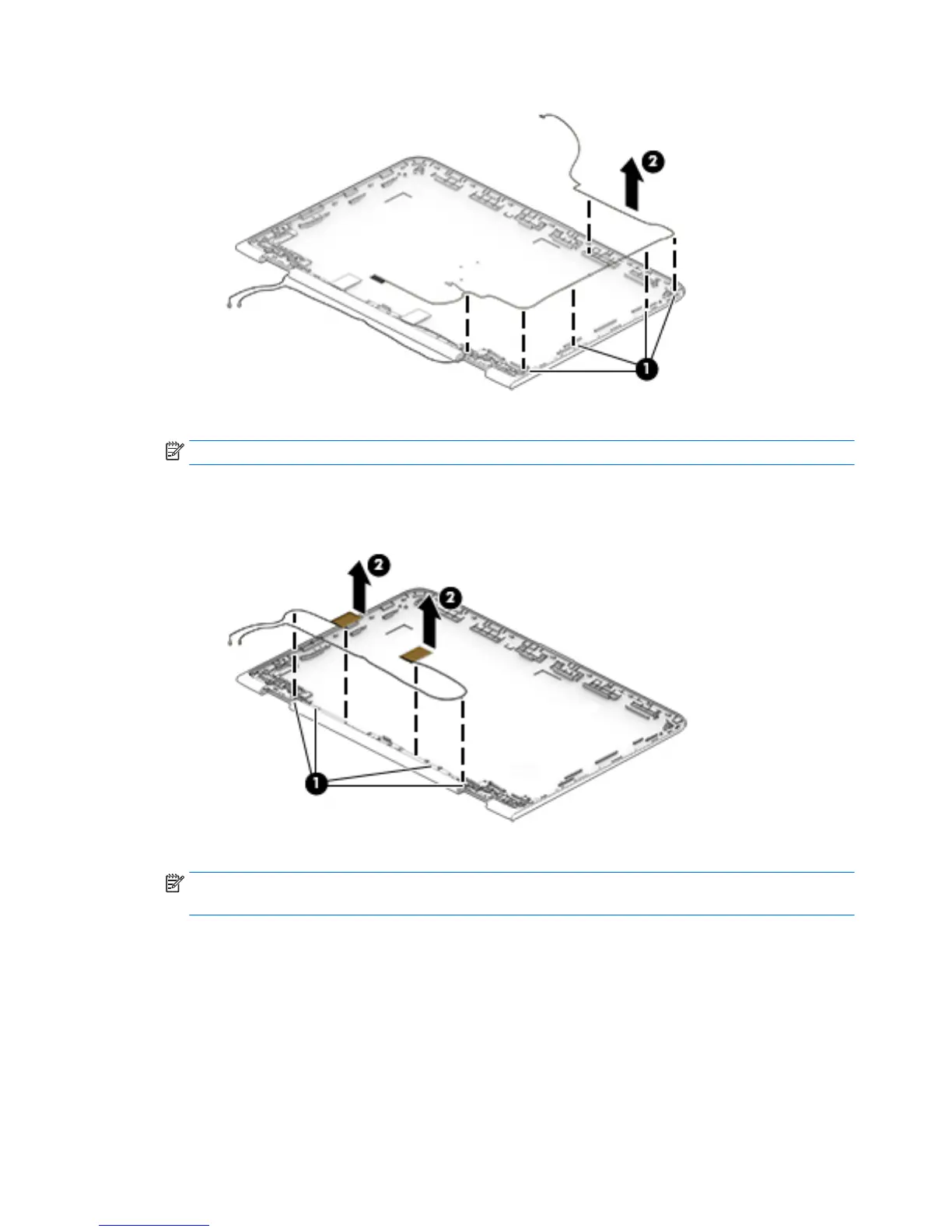

Remove the cables from the tape and clips (1) that secure them to the display enclosure, peel the
transceivers from the enclosure, and then lift the cables and transceivers from the display
enclosure (2).
7. To remove the sensor board:
NOTE: The sensor board is available using spare part number 809547-001 on models with an Intel
Core processor or 819790-001 on models with an Intel Pentium or Celeron processor.
a. Disconnect the cable from the board (1).
b. Remove the tape that secures the board to the display (2).
60 Chapter 5 Removal and replacement procedures for Authorized Service Provider parts
