HP Z210 CMT Workstation rear panel components
The following figure shows the rear panel of a typical HP Z210 CMT Workstation.

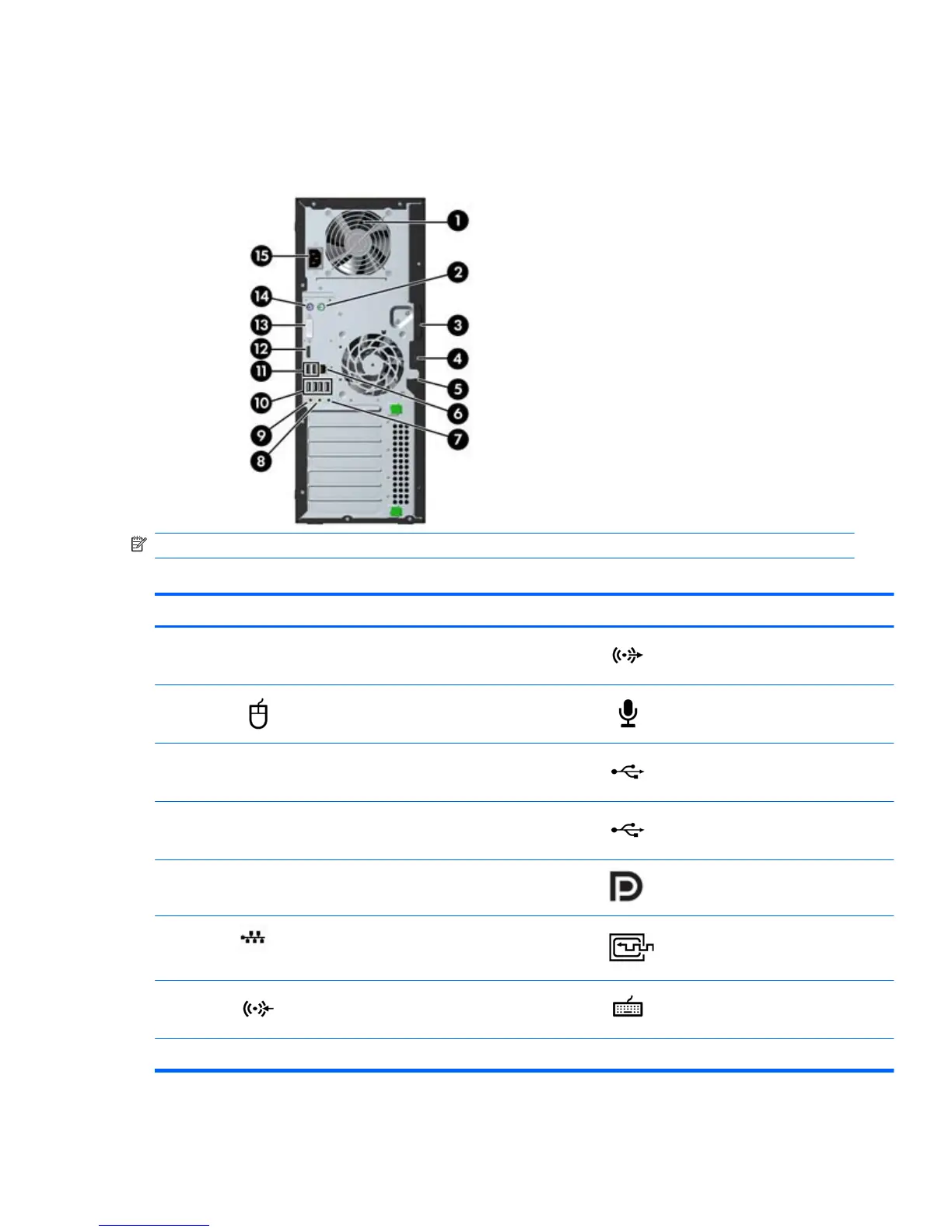

Figure 2-3 HP Z210 CMT Workstation rear panel
NOTE: The labels for the rear panel connectors use industry-standard icons and colors.
Table 2-3 Rear panel components
Item Symbol Description Item Symbol Description
1 Power supply fan 8
Audio line-out connector (green)
2
PS/2 mouse connector (green) 9 Microphone connector (pink)
3 Universal chassis clamp opening 10
USB 2.0 ports (4)
4 Cable lock slot 11
USB 2.0 ports (2)
5 Padlock loop 12
Display Port (DP) connector
6
RJ-45 network connector 13 DVI-I connector
7
Audio line-in connector (blue) 14 PS/2 keyboard connector (purple)
15 Power cord connector
10 Chapter 2 Workstation components ENWW
