8 Installing PCI/PCIe devices

This section describes how to install a PCI or PCIe card in the workstation. To increase the performance

and functionality of your system, PCI/PCIe devices such as graphics cards or audio cards can be

installed in the expansion card slots on the workstation.

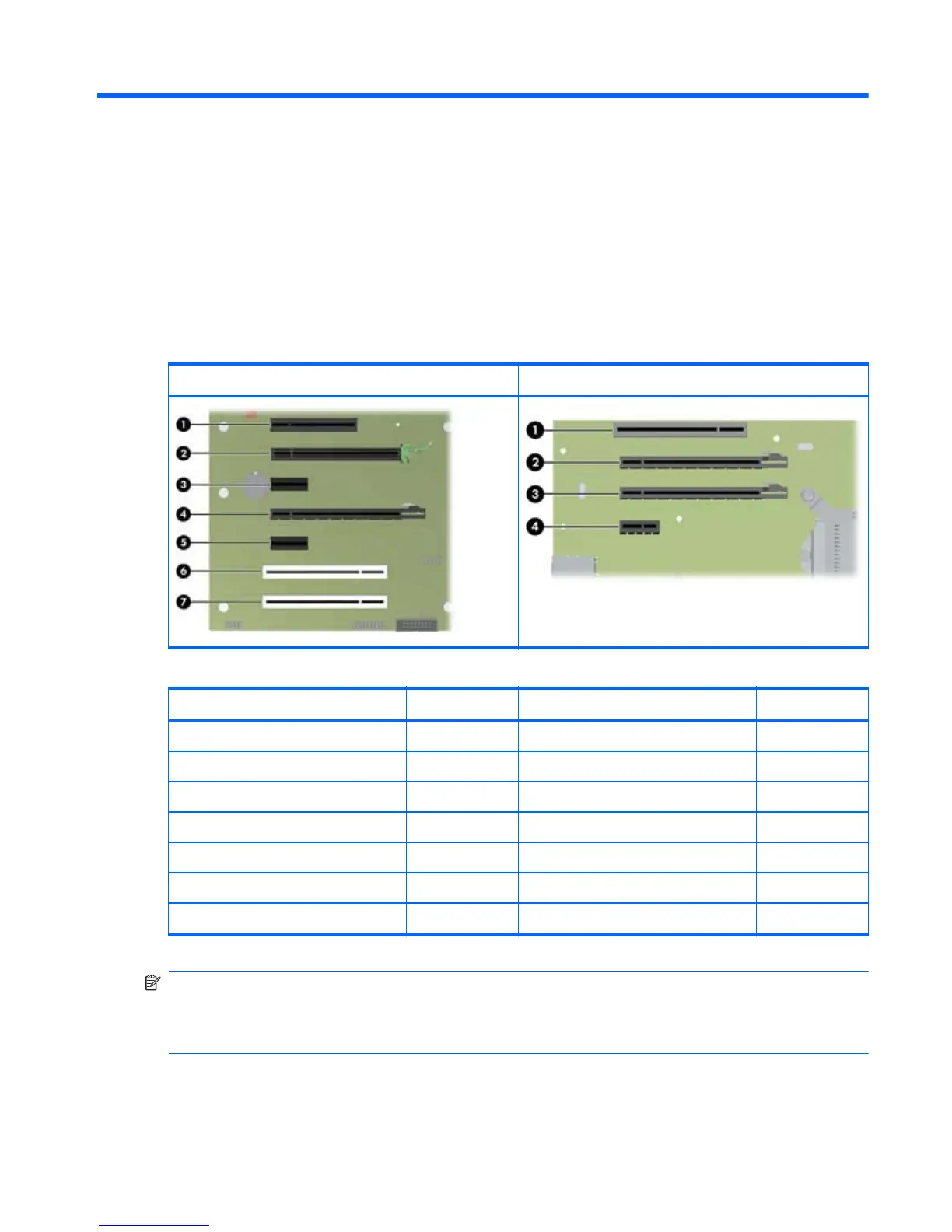

Expansion card slot identification

The following tables describe the expansion card slots in the HP Z210 Workstations.

Z210 CMT Z210 SFF

Slot description Slot power Slot description Slot power

1–PCIe2 - x8(4) 25W 1–PCI 32b/33Mhz 25W

2–PCIe2 - x16 75W 2–PCIe2 - x16 45W

3–PCIe2 - x1 10W 3–PCIe2 - x16 (4) 25W

4–PCIe2 - x16(4) 25W 4–PCIe2 - x1 10W

5–PCIe2 - x1 10W

6–PCI 32b/33Mhz 25W

7–PCI 32b/33Mhz 25W

NOTE: The x1, x4, x8, and x16 designators describe the mechanical (physical) length of the slot.

The number in parentheses lists the number of electrical PCIe lanes routed to the expansion slot. For

example, x8(4) means that the expansion slot is mechanically a x8 length connector, with four PCIe

lanes connected.

ENWW

Expansion card slot identification

HP Z210 Series User Manual
