HP Z210 Series - HP Z210 SFF Front Panel Components

HP Z210 SFF Workstation front panel components

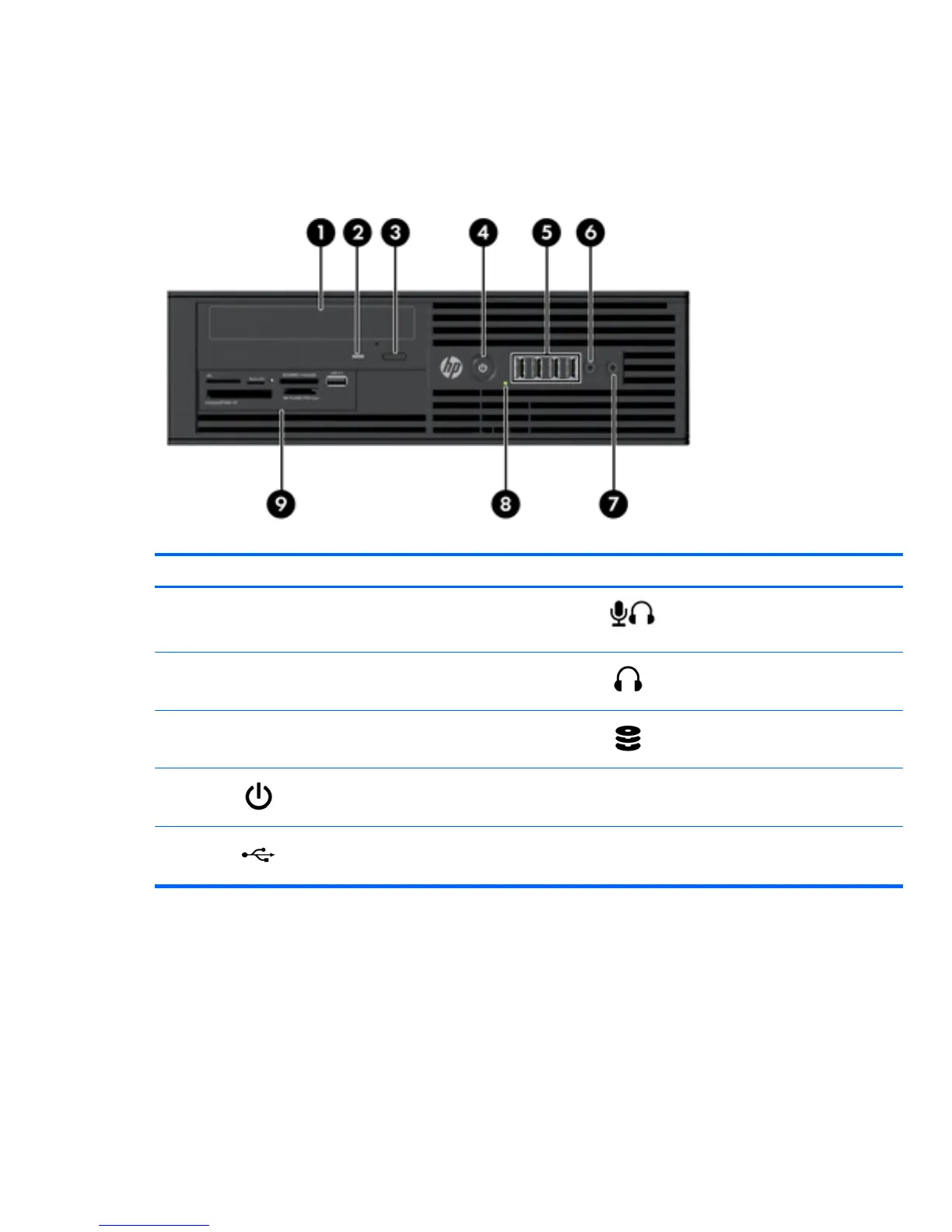

The following figure shows the front panel of an HP Z210 SFF Workstation. Drive configurations can
vary.
Figure 2-5 HP Z210 Workstation front panel
Table 2-5 Front panel components
Item Symbol Description Item Symbol Description
1 Optical drive 6
Microphone or headphones connector
(software selectable, default mode is
microphone)
2 Optical drive activity light 7
Headphones connector
3 Optical drive eject button 8
Hard drive activity light
4
Power button 9 Optional media card reader or second
hard disk drive
5
USB 2.0 ports (4)
