2. Align the card keyway with the slot key, and then firmly seat the card in the slot as shown in the
following illustration (1).

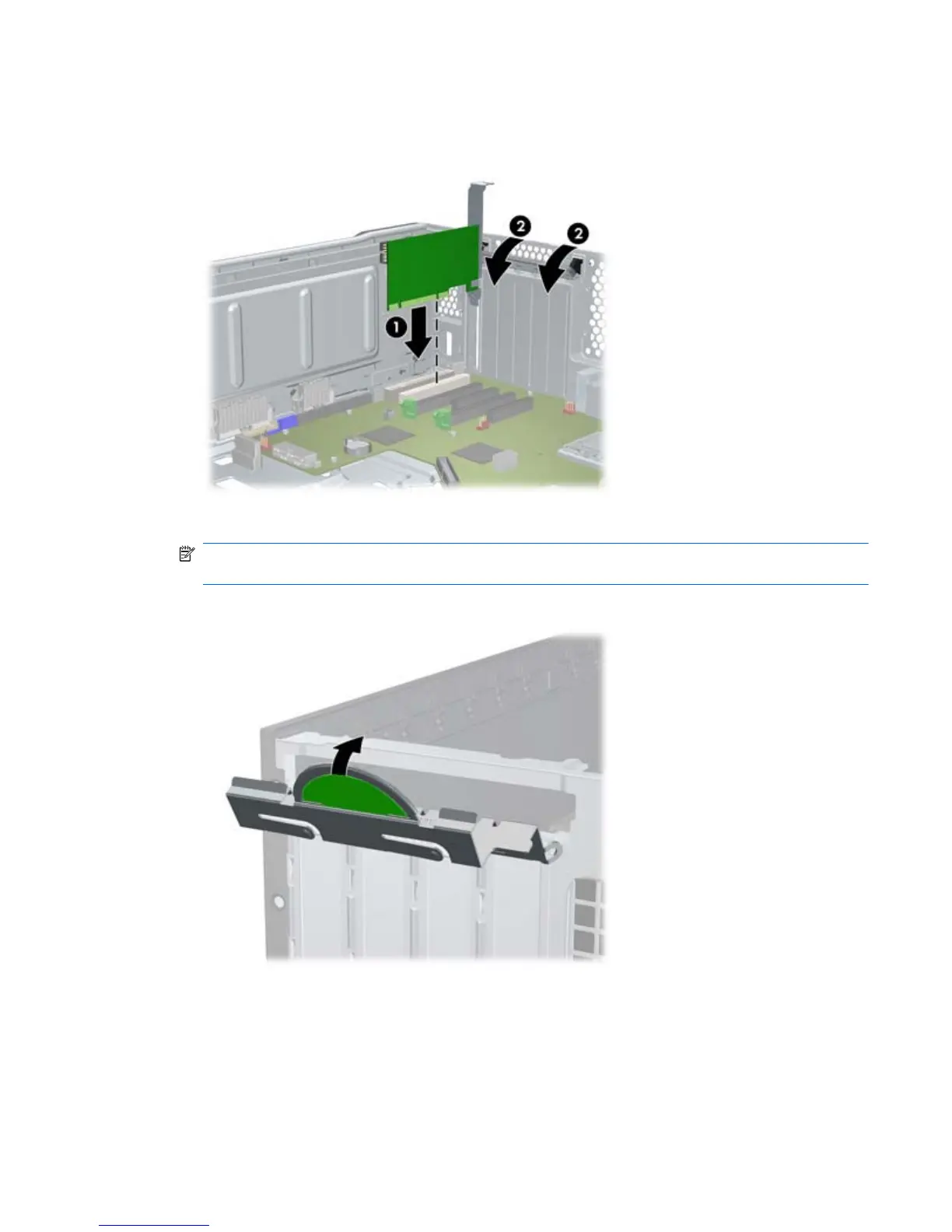

Figure 8-1 Installing an expansion card (Z210 CMT shown)
3. Close the retention clamp by rotating it downward (2) as shown in the illustration above.
NOTE: For the Z210 SFF Workstation, close the expansion slot retention clamp making sure all
cards are seated.
Figure 8-2 Closing the expansion card retention clamp (Z210 SFF)
4. Connect all necessary power and interface cables to the card (follow instructions that came with
the expansion card).
5. Replace all components removed in preparation for component installation.
ENWW
Installing an expansion card
43
