b. Disconnect the two LCS VR fan assembly bracket screws and remove the assembly from the
chassis as shown in the following figure.

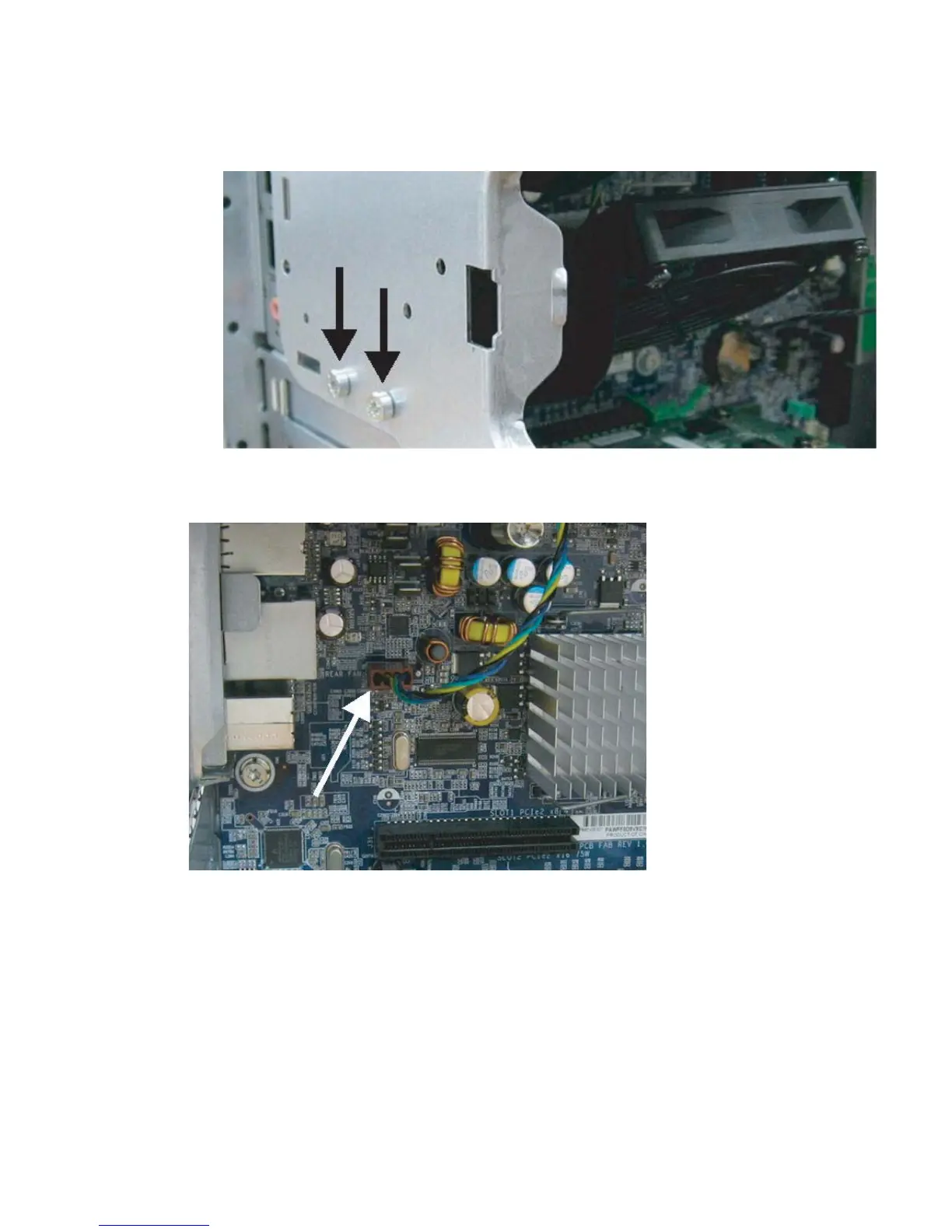

Figure 5-49 Removing the LCS VR fan assembly
5. Disconnect the rear system fan cable from the system board as shown in the following figure.
Figure 5-50 Disconnecting the rear system fan cable
114 Chapter 5 Replacing components ENWW
