HP Z400 - Workstation

6. Remove the screws and the LCS radiator assembly from the chassis as shown in the following
figure.

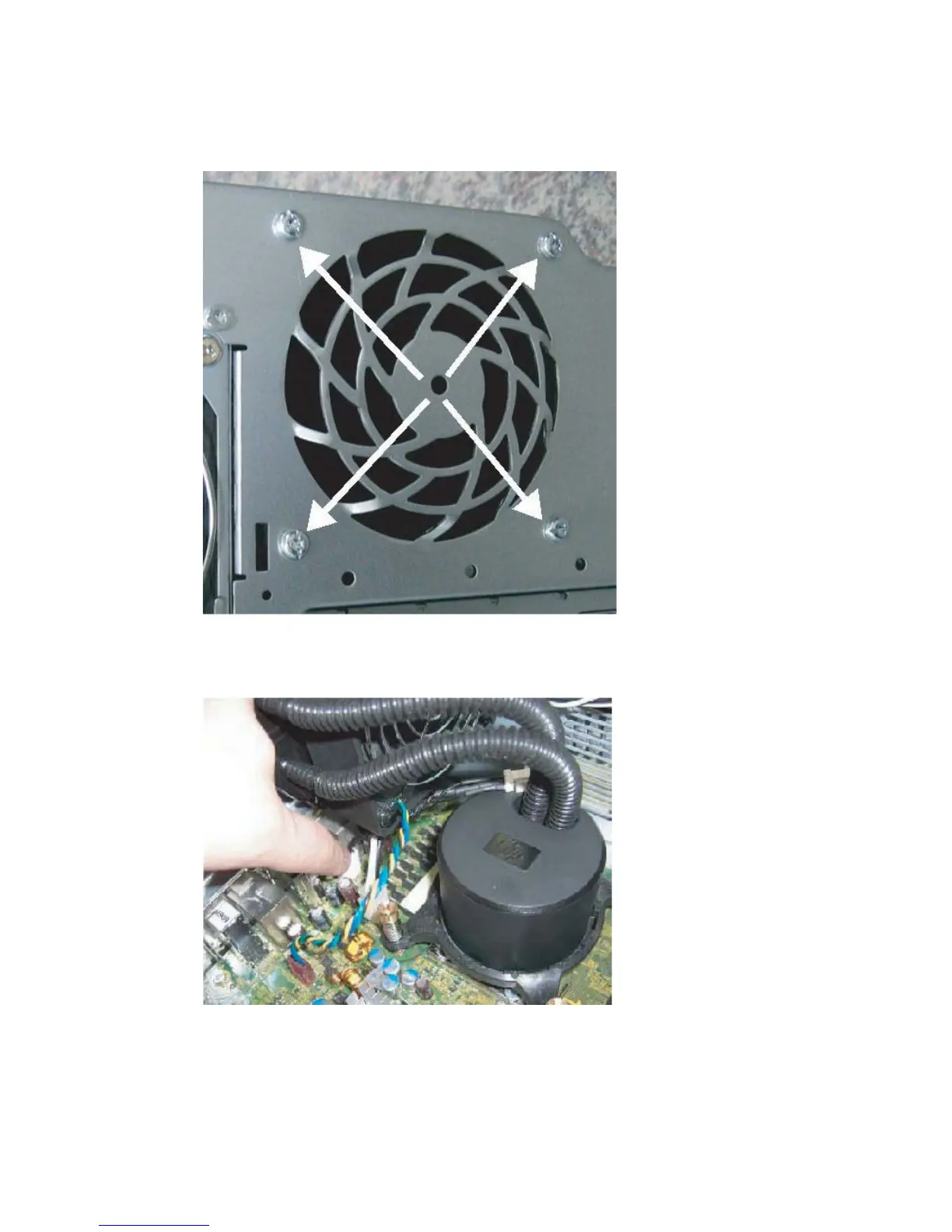

Figure 5-51 Removing the LCS radiator assembly
7. Disconnect the LCS pump cable from the system board as shown in the following figure.
Figure 5-52 Disconnecting the LCS pump cable
ENWW Removing and installing components 115
