8. Remove the cold plate assembly.
a. Remove the four heatsink mounting screws shown in the following figure from the LCS cold
plate assembly, and then lift the assembly from the CPU.

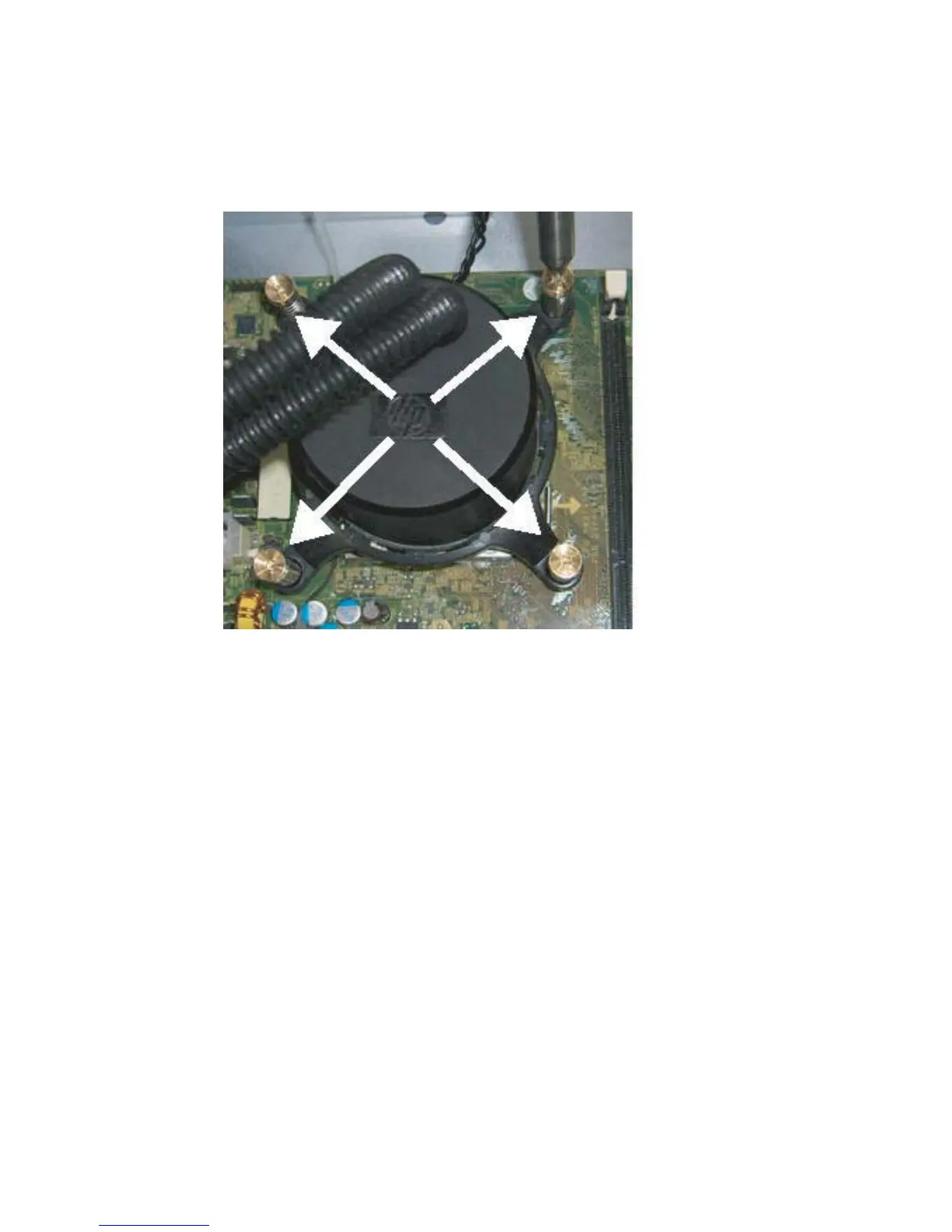

Figure 5-53 Disconnecting the LCS cold plate from the CPU
