b. With the cold plate assembly removed, gently twist the cold plate and remove it from the
retention ring
2
as shown in the following figure.

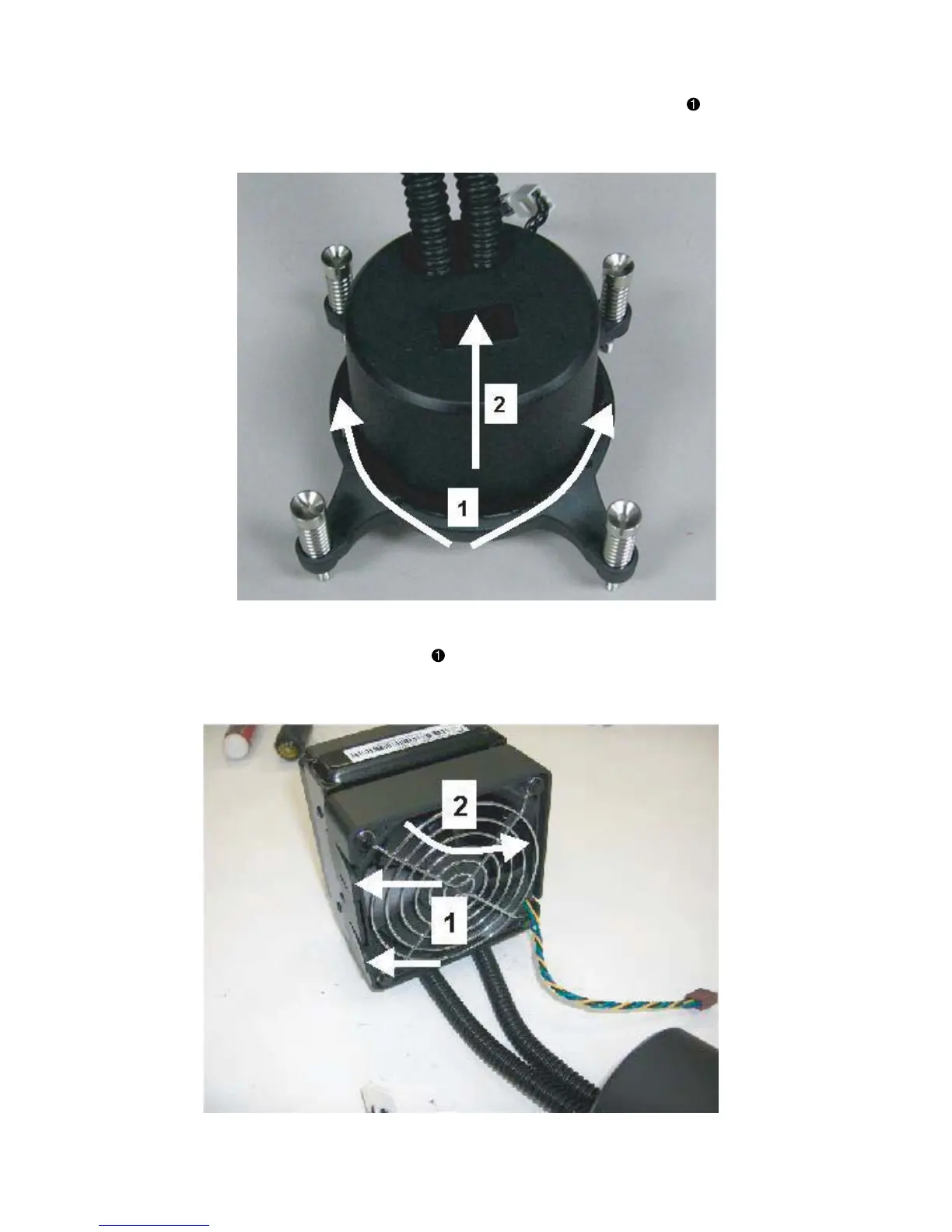

Figure 5-54 Removing the cold plate assembly from the retention ring
9. Remove the rear system fan from the LCS radiator fan holder.
Press the fan holder tabs outward
, and rotate the fan out of the holder
2
as shown in the following
figure. Release the tabs when the fan is removed.
Figure 5-55 Removing the rear system fan from the radiator fan holder
ENWW Removing and installing components 117
