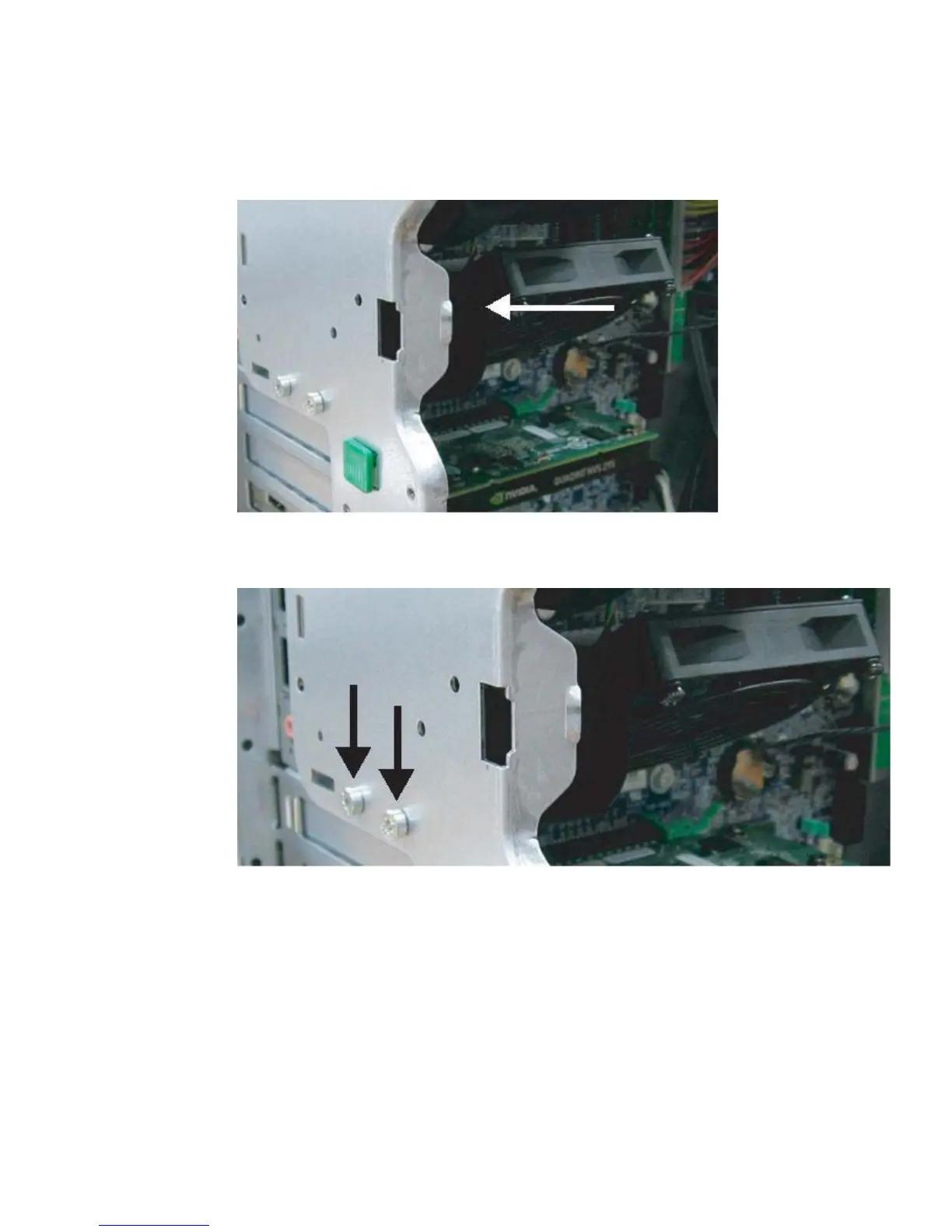

12. Install the LCS VR fan in the chassis.
a. Place the LCS VR fan in the chassis so that the fan bracket holes align with the holes in the
chassis as shown in the following figure.
Figure 5-65 Aligning the LCS VR fan bracket
b. Fasten the LCS VR fan assembly to the chassis as shown in the following figure.
Figure 5-66 Fastening the LCS VR fan
ENWW Removing and installing components 125
