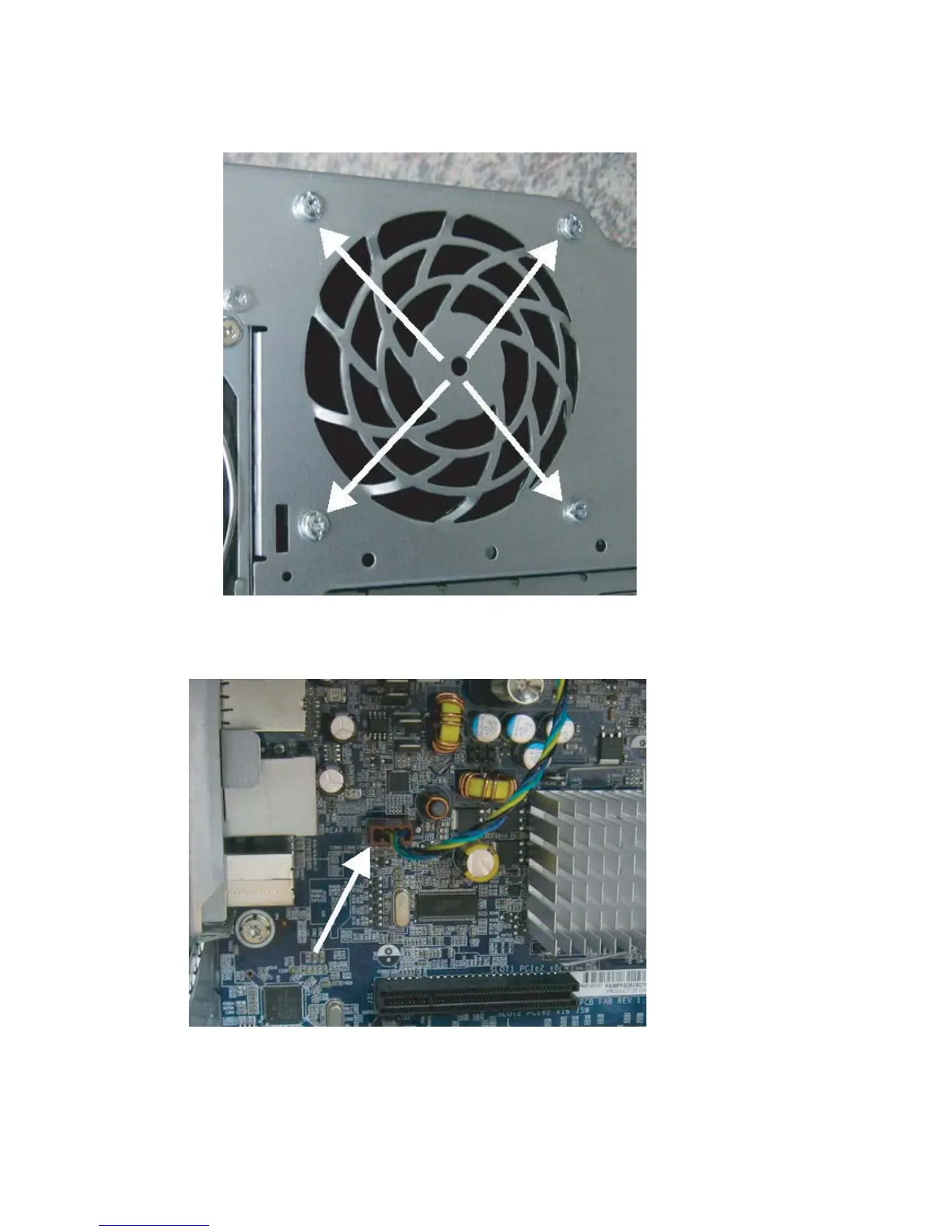

b. Fasten the LCS radiator assembly to the chassis as shown in the following figure.
Figure 5-63 Fastening the LCS radiator assembly
11. Connect the rear system fan cable to the system board as shown in the following figure.
Figure 5-64 Connecting the rear system fan cable
124 Chapter 5 Replacing components ENWW
