10. Install the LCS radiator with attached rear system fan in the chassis. as shown in the following
figure.
a. Align the LCS radiator assembly in the chassis as shown in the following figure.
TIP: Align the radiator assembly with the rear system fan screw holes in the chassis.

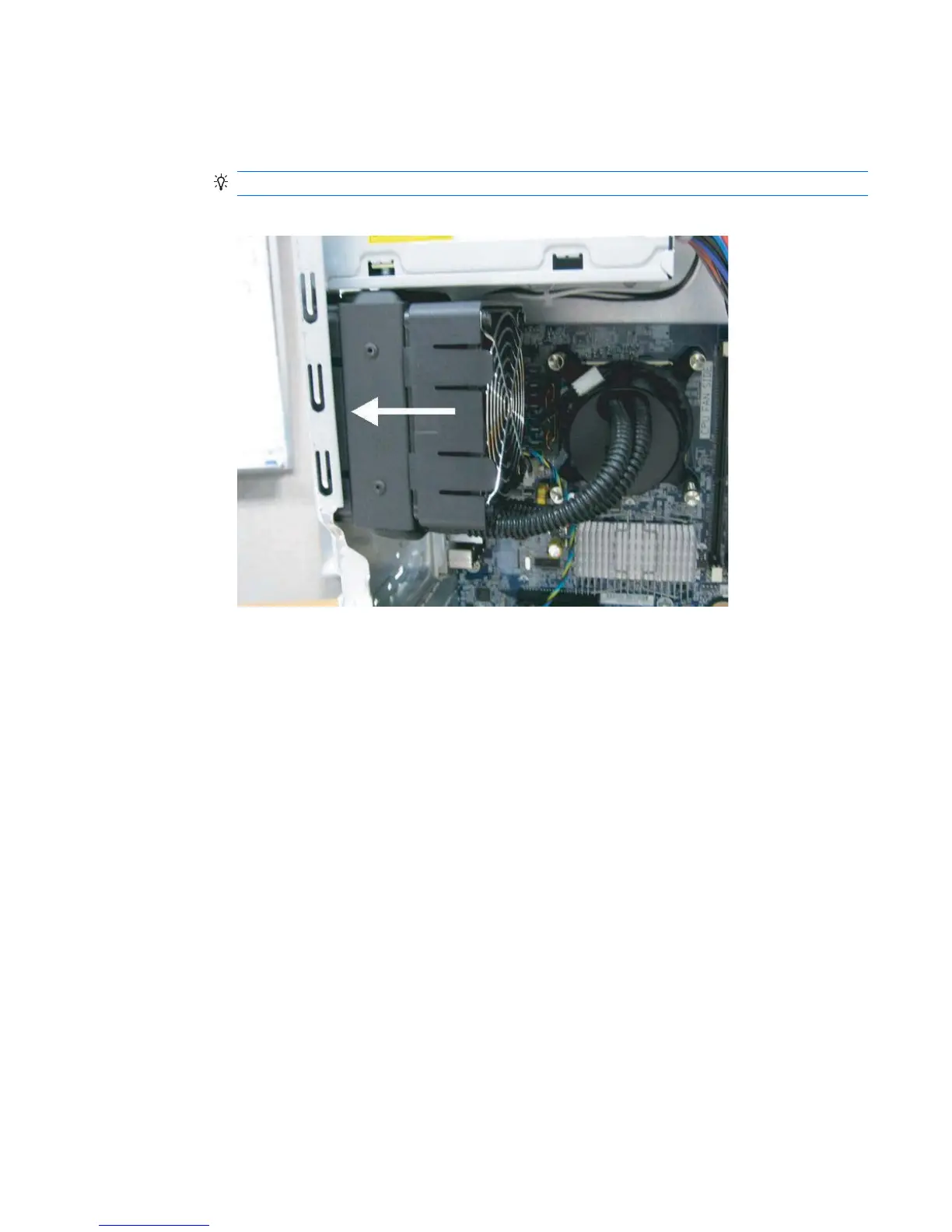

Figure 5-62 Aligning the LCS radiator assembly
ENWW Removing and installing components 123
