Connector repair
This procedure includes HDMI, Display Port, Mini Display Port, USB-C LAN and USB-A connectors.
The connectors are on the main board (board part number 7ZB.04C01.0011).

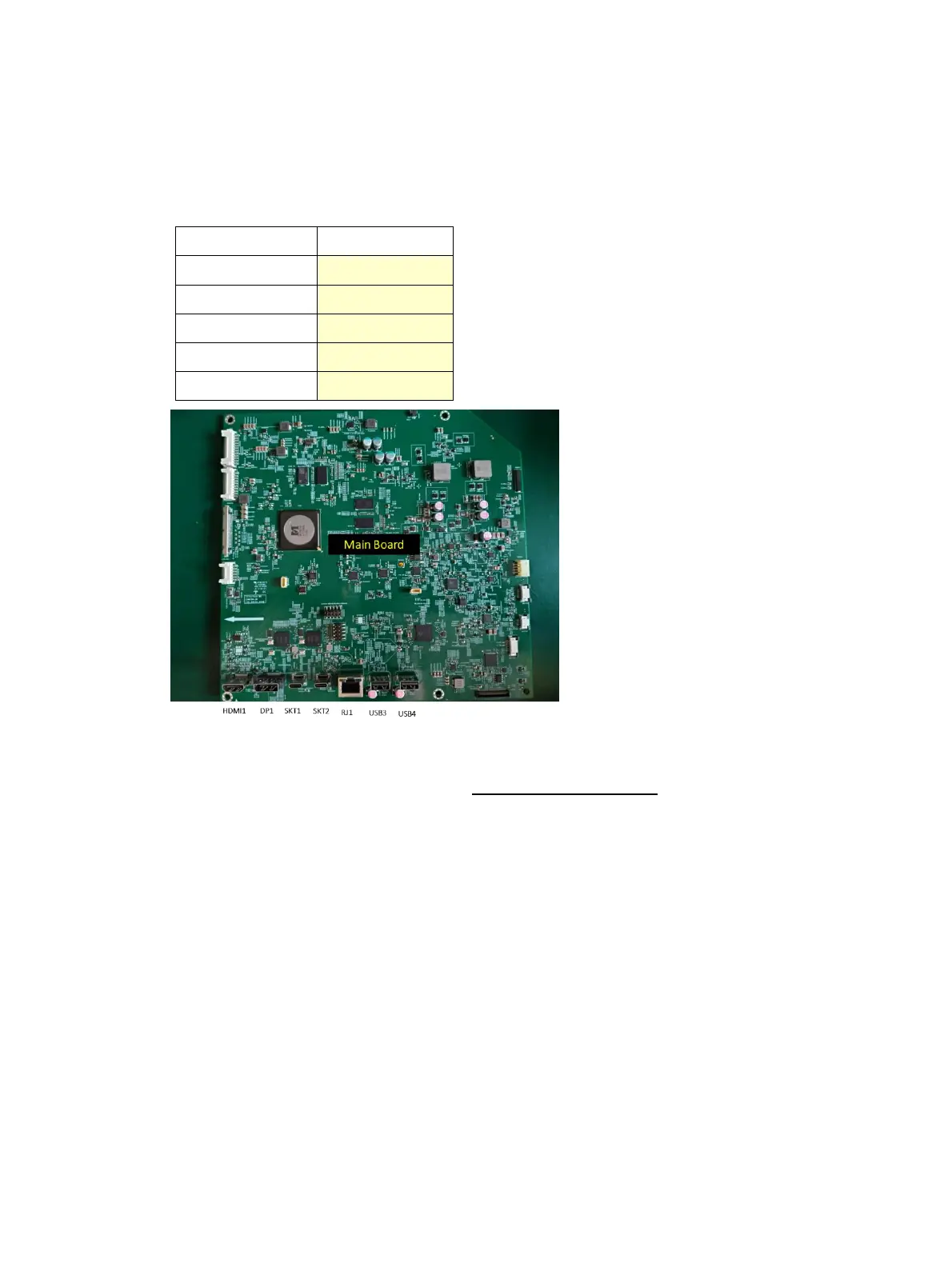

The connector identifiers are as follows:
Before repairing connectors, follow these steps:
▲ Prepare the monitor for disassembly. See Preparation for disassembly on page 11.
HDMI connector HDMI1
Repair the HDMI connector:
1) Use a soldering iron and a de-soldering pump to remove as much solder as possible from the pin.
