HP Z440 Workstation Series Service Manual

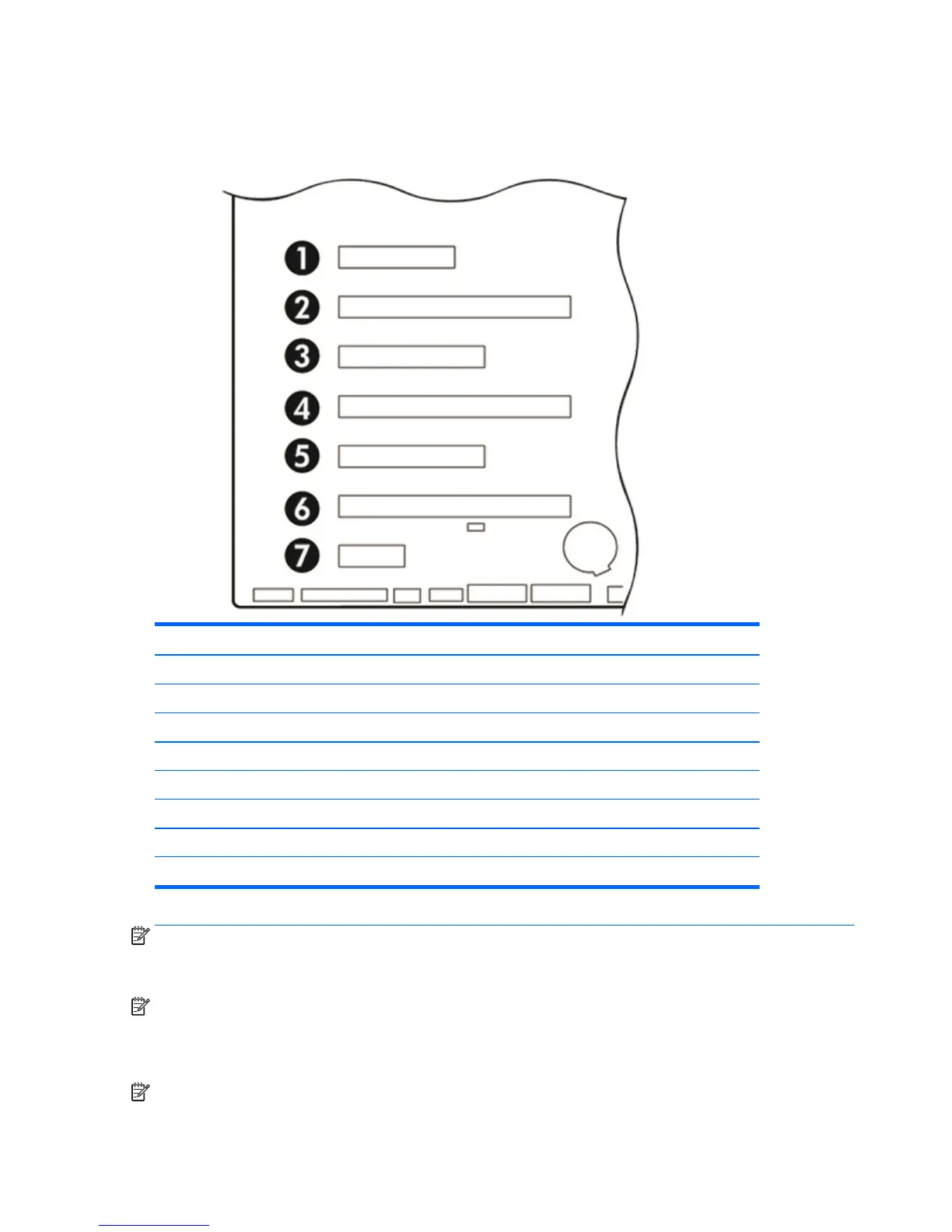

HP Z840 Workstation slot identification and description
Maximum power used by all slots must not exceed total system power and is subject to configuration
limitations.
Slot Type Mechanical compatibility Electrical compatibility
1 PCIe3 x4 x4 x4
2 PCIe3 x16 x16 x16
3 PCIe3 x8 x8 x8
4 PCIe3 x16 x16 x16
5 PCIe2 x8 x8 x4
5 PCIe3 x8 (CPU1) x8 x8
6 PCIe3 x16 x16 x16
7 PCIe2 x1 x1 x1
NOTE: The PCIe designators indicate the mechanical connector size and number of electrical PCIe lanes
routed to an expansion slot. For example, x16(8) means that the expansion slot is mechanically an x16
length connector, with 8 PCIe lanes supported.
NOTE: Slots one and five use open-ended PCIe connectors, so a PCIe x16 card can be inserted. This allows
the workstation to support more PCIe x16 expansion cards. An x16 card typically trains and runs at the
maximum lane width available by the expansion slot. The card runs at the reduced lane width, with a
corresponding performance decrease.
NOTE: A eighth slot opening in the chassis has no corresponding expansion connector on the system board.
This slot opening is provided for devices that do not require system board plug-in capability.
56 Chapter 3 Component replacement information and guidelines

HP Z440 Workstation Series Specifications

General

Chipset	Intel C612
Memory Slots	8 DIMM slots
Audio	Integrated Realtek HD ALC221 Audio
Processor Options	Intel Xeon E5-1600 v3 series; Intel Xeon E5-2600 v3 series
Memory	Up to 128 GB DDR4-2133 ECC
Graphics Options	NVIDIA Quadro or AMD FirePro professional graphics cards
Power Supply	700W 90% efficient, wide-ranging, active Power Factor Correction (PFC)
Operating System	Windows 10 Pro, Windows 7 Professional, or Linux
Weight	11 kg
Network	Integrated Intel I218LM PCIe GbE
Expansion Slots	1 PCIe Gen2 x1, 1 PCI
