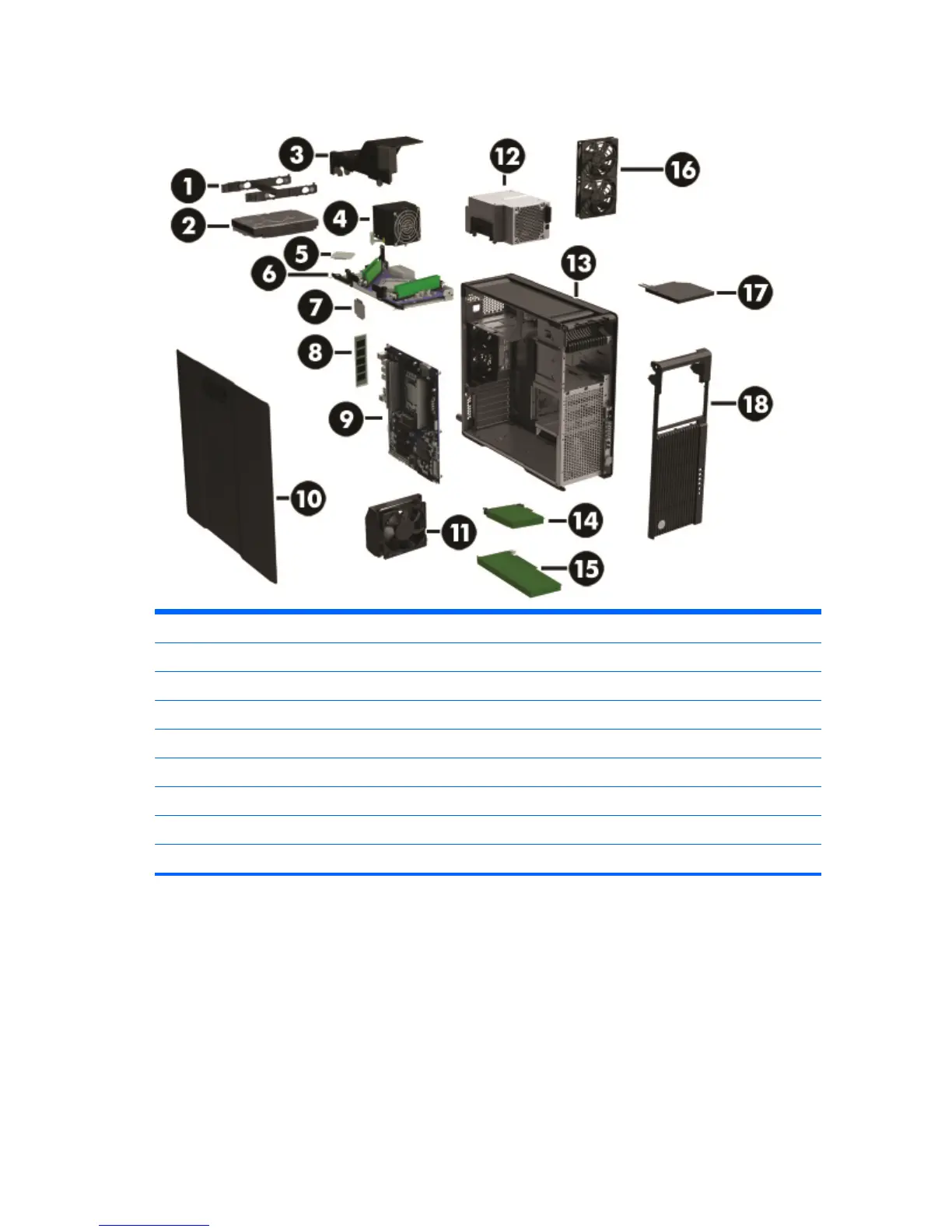

HP Z640 Workstation chassis components
1 Hard drive carrier 10 Side access panel
2 Hard drive, 3.5-inch 11 Card guide and front fan
3 Fan baffle 12 Power supply
4 Processor Heatsink 13 Chassis
5 Processor 14 PCI card
6 Second processor module (optional) 15 PCIe card
7 Second processor (optional) 16 Rear system fan
8 Memory module (DIMM) 17 Optical drive, slim
9 System board 18 Front bezel
10 Chapter 1 Hardware overview
