HP Z840 Workstation Series Service Manual

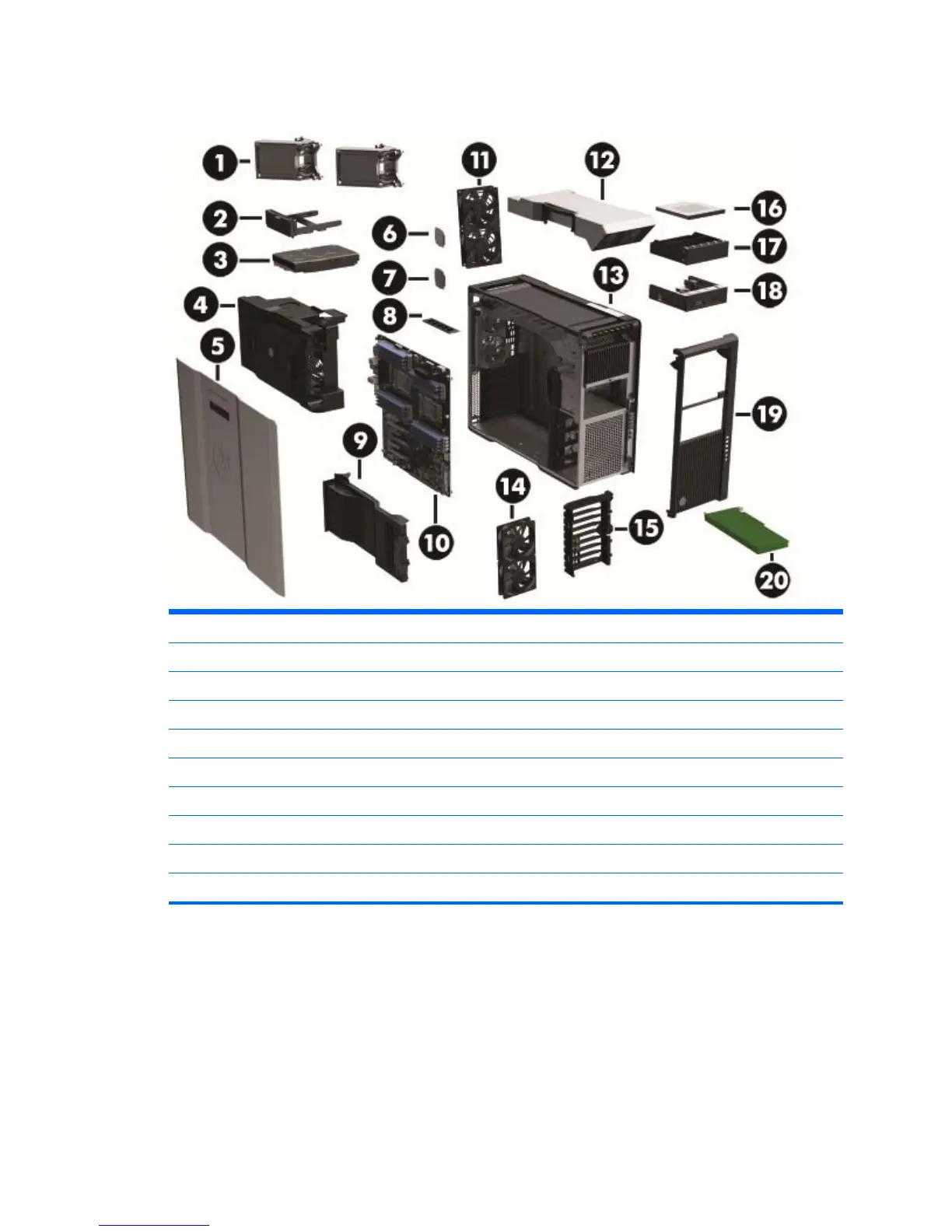

HP Z840 Workstation chassis components
1 Processor heatsinks (primary and secondary) 11 Rear system fans
2 Hard drive carrier 12 Power supply
3 Hard drive 13 Chassis
4 Processor/memory fans 14 Front system fans (two fans with 1125 W power supply)
5 Side access panel 15 PCI card guide
6 Processor 16 Optical drive, slim
7 Second processor (optional) 17 Front bay filler
8 Memory module (DIMM) 18 Media card reader
9 PCI Retainer 19 Front bezel
10 System board 20 PCIe card
HP Z840 Workstation components 17

HP Z840 Workstation Series Specifications

General

Chipset	Intel C612
Memory Slots	16 DIMM slots
Processor	Intel Xeon E5-2600 v3/v4 series
Storage	Supports SATA, SAS, and SSD
Graphics	NVIDIA Quadro and AMD FirePro options
Expansion Slots	7 PCIe slots
Power Supply	1125W 90% efficient
Operating System	Windows 10 Pro 64, Red Hat Enterprise Linux, SUSE Linux Enterprise Desktop
Ports	USB 3.0, USB 2.0
