HPC CodeMax - Page 17

Jaw C – Medeco
®
Jaw (MJ-1) Optional Equipment Required For Cutting Medeco
®
Keys (Not Required For Biaxial Keys)

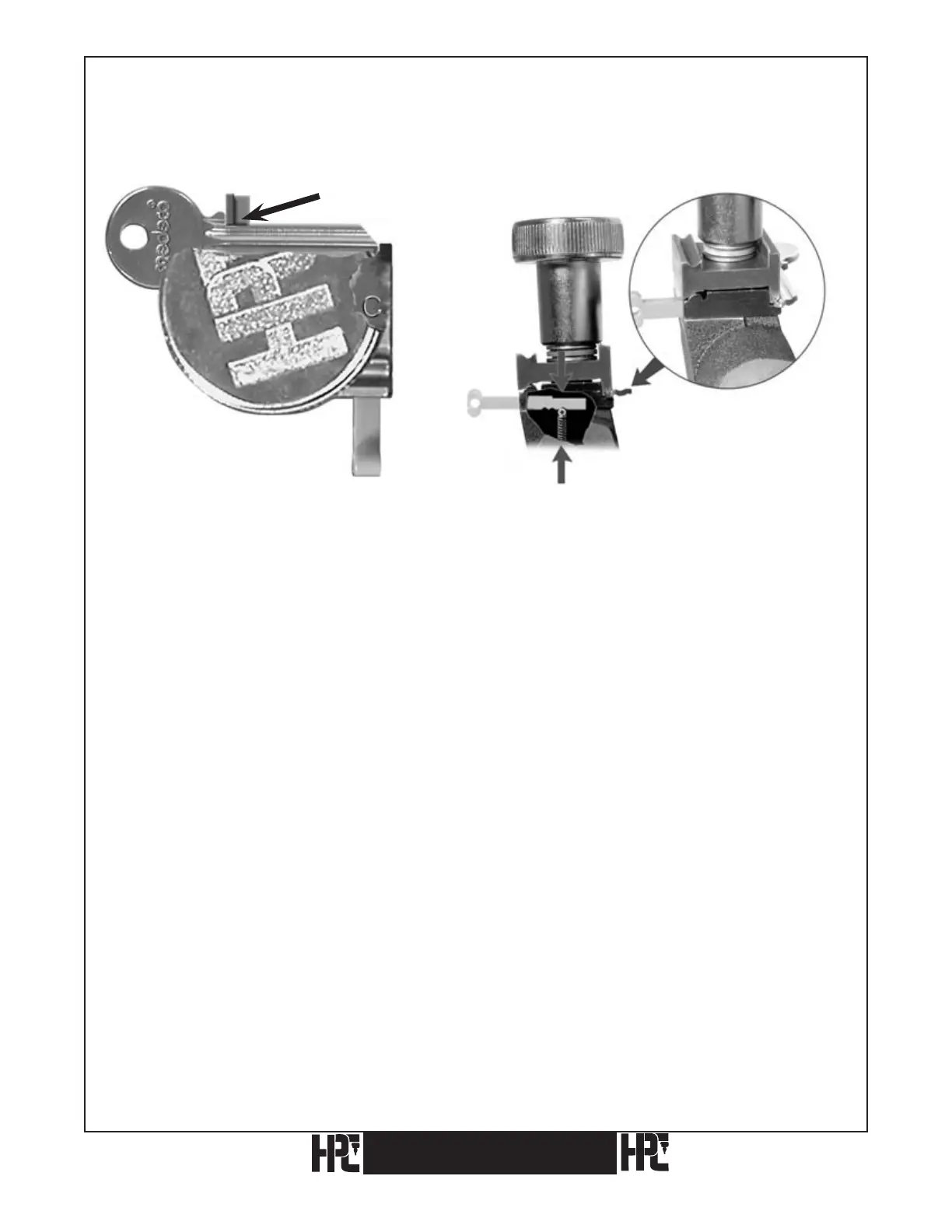

Fig. 3A. Fig. 3B. Properly seated key in jaw C.
An optional cutter (CW-1012) and Jaw C (MJ-1) are required to cut commercial level
Medeco
®
keys. Both parts are readily available from your HPC distributor. Biaxial keys
only require the CW-1012 cutter, not MJ-1.
The optional Jaw C is a specially milled CodeMax
®
jaw. It is required for holding the
standard Medeco
®
keys (see Fig. 3A). Vise Jaw C is milled to fit and firmly nest into
the Medeco
®
commercial key grooves. The proper and firm grip provided by Jaw C is
necessary due to the extremely deep cuts used on Medeco
®
keys. Instructions for using
Medeco’s KeyMark
®
Jaw are available from Medeco
®
.
Gauge the key from the shoulder, making sure the key grooving and special jaw milling are
nested together (see Fig. 3B).
16
Shoulder Gauge
CodeMax
®
CodeMax
®
