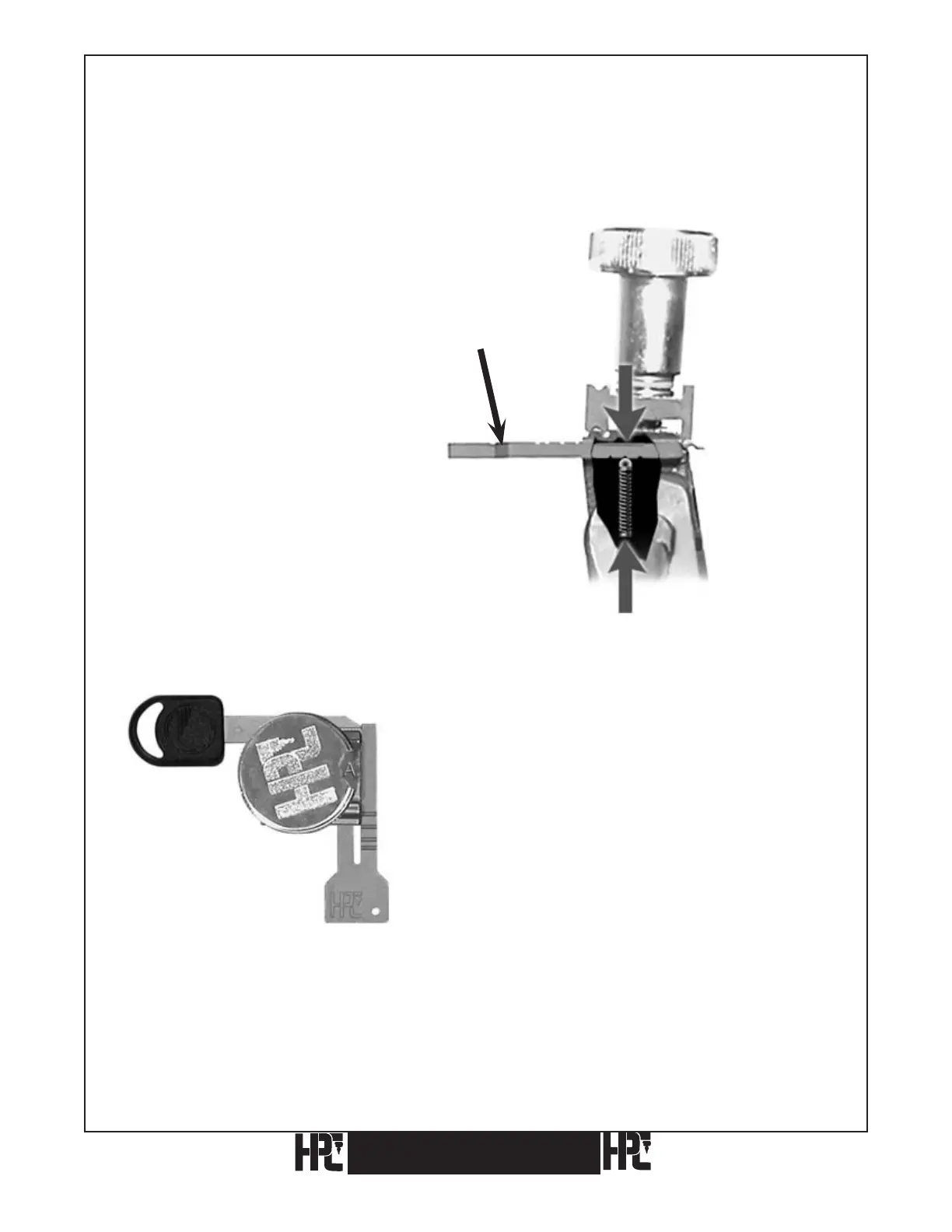

3.3.7 Black Horseshoe Tip Gauge In Position 2 Using Jaw A or B
(Example: GM Modular 94+, DSD #259)
1) The Horseshoe Tip Gauge is
pushed inward to position 2.
2) The key is gauged from the tip as shown. Be sure
the key lies flat against the back of the Bottom
Jaw before tightening the Wing Nut. Lower the
Shoulder Gauge.
Note: Undue pressure against the right leg will cause the legs to
spread, resulting in inaccurately cut keys.
Note: On Ford blanks (DSD’s 35 and 261) the key blank grooving
edge lies directly on the face of the key vise. No riser blocks are
used.
Position 2
Horseshoe Tip
Gauge
