2.2 Replacing Cutter Wheels

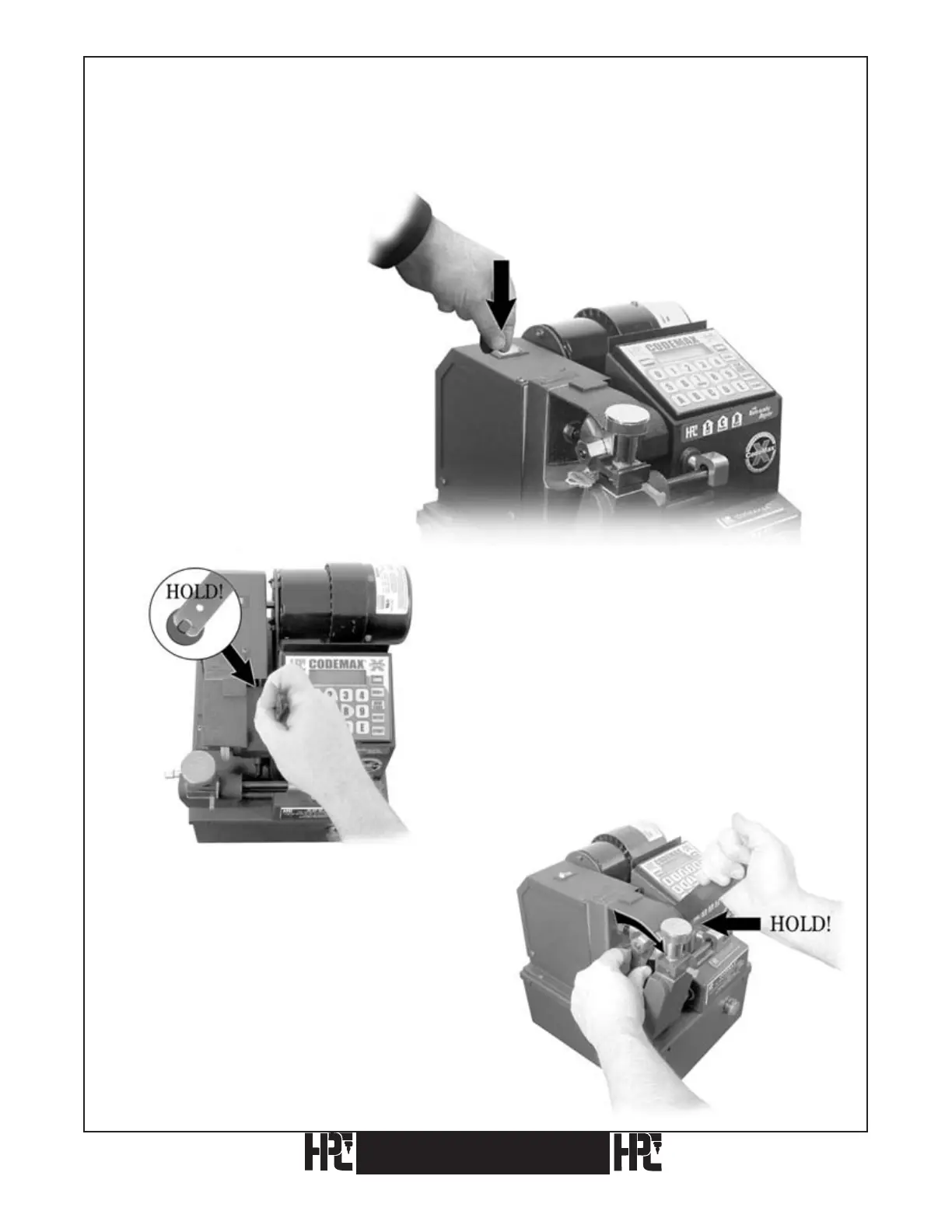

The following procedure is recommended when changing cutters:
IMPORTANT NOTE: Be sure the cutter is installed for a clockwise rotation, with the arrow
facing the outside, so it can be seen.
1) Turn the CodeMax
®
off.
2) Hold the cutter shaft with the
1/2 inch end of WRENCH-1.
3) Loosen the cutter shaft nut with
the 3/4 inch WRENCH-3 by turning
it clockwise (left hand thread). The
cutter shaft is threaded with reverse,
left-hand thread.
