P1/P2

I/O-A

I/O-B

P1/P2

I/O-A

I/O-B

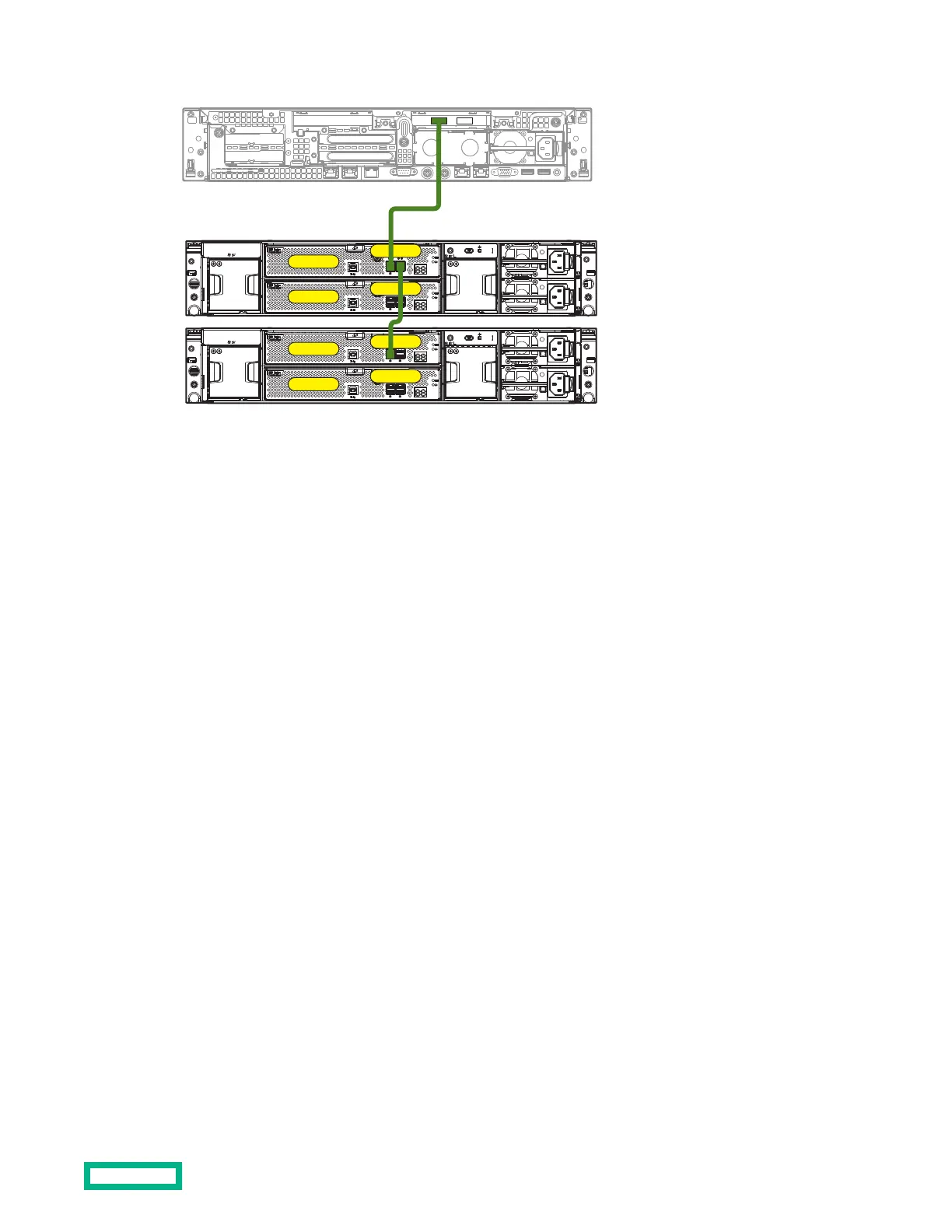

Figure 2: Disk enclosure to disk enclosure (single-domain)

Power cord guidelines

When connecting power cords, use the cords shipped with the disk enclosure. The power cord should be approved for use

in your country. The power cord must be rated for the product and for the voltage and current marked on the electrical

ratings label of the product. The voltage and current rating for the cord should be greater than the voltage and current

rating marked on the product. In addition, the diameter of the wire must be a minimum of 100 mm2 or 18 AWG, your

maximum length may be up to 366 m (12 ft).

After power is supplied to the disk enclosure, the power supply automatically senses the input voltage and the power

supply LED illuminates as solid green. To protect the system from power-failure-related downtime, each disk enclosure

ships standard with a redundant power supply. Depending how you connect the power supplies to the power source, you

can eliminate downtime caused by power-related failures.

Installing
