Item Description CSR status
11 Fan module Mandatory
12 Rear Unit ID Mandatory
13 Disk drive Mandatory

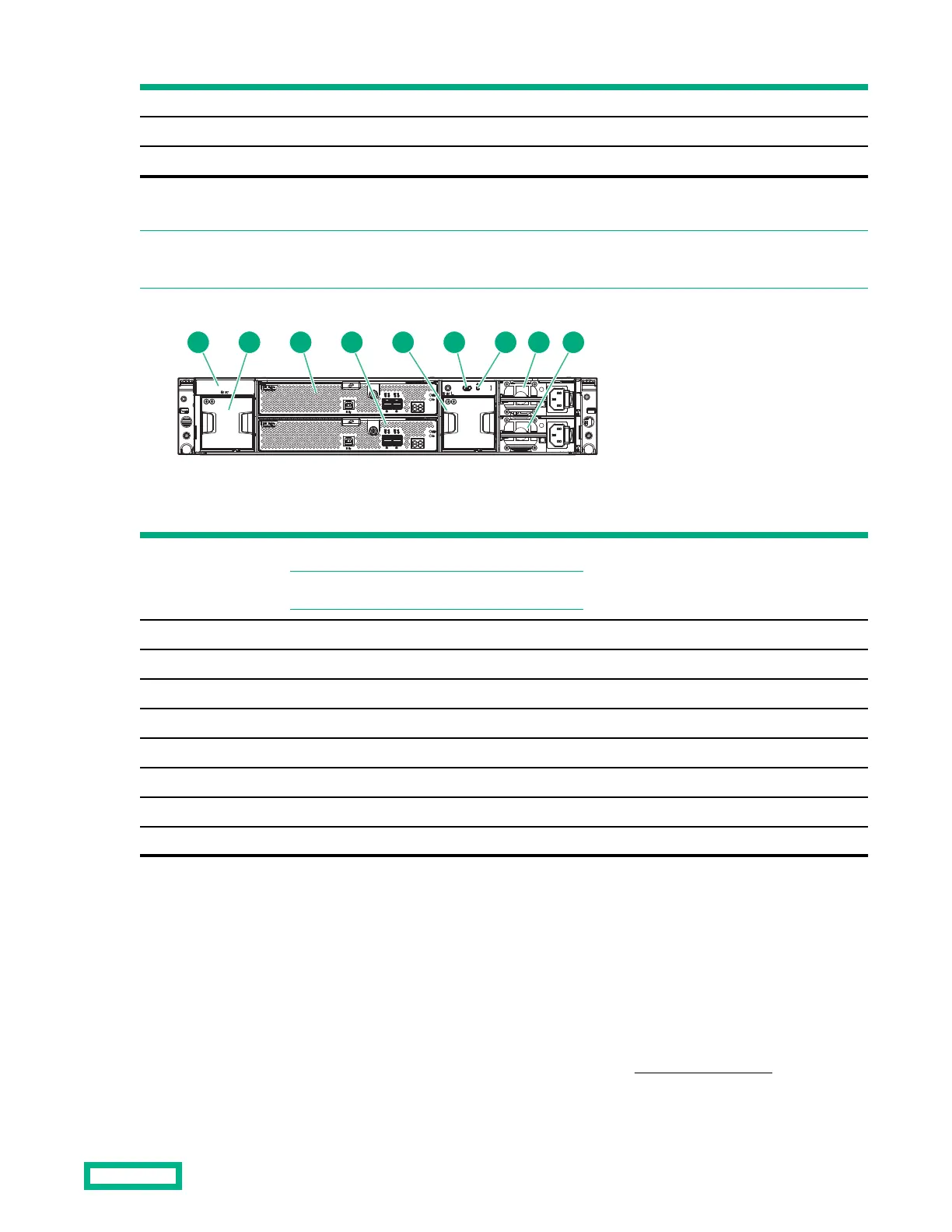

Rear view of disk enclosure chassis
NOTE: The disk enclosure chassis rear view for both the D3600/D3610 LFF and D3700/D3710 SFF enclosures share the
same layout.
Item Description
1 Metal cover with fan module ID
NOTE: A pull tab is provided for label placement
2 Fan
3 I/O module A
4 I/O module B
5 Fan
6 Rear UID button
7 Rear system health LED
8 Power supply
9 Power supply
Disk drives
Depending on the types of hard disk drives (HDDs) you are using, the following numbers of drives can be installed in a
single enclosure:
• Large form factor (LFF): 12 HDDs
• Small form factor (SFF): 25 HDDs
A variety of disk drive models are supported for use, including dual-ported and single-ported models.
For more information, see the HPE D3000 Enclosures QuickSpecs, available on the Accessing QuickSpecs website.
