D3600/D3610 Small form factor disk enclosure chassis
Each HPE D3700/D3710 enclosure includes the following standard components:
• D3700/D3710 base enclosure with redundant power supplies and fan modules
• Two integrated 12Gb SAS I/O Modules
• Rack mounting hardware kit
• Two 05m HD mini-SAS cables
• Two PDU interconnect cords
• Optional digital rain bezel
1 2 3

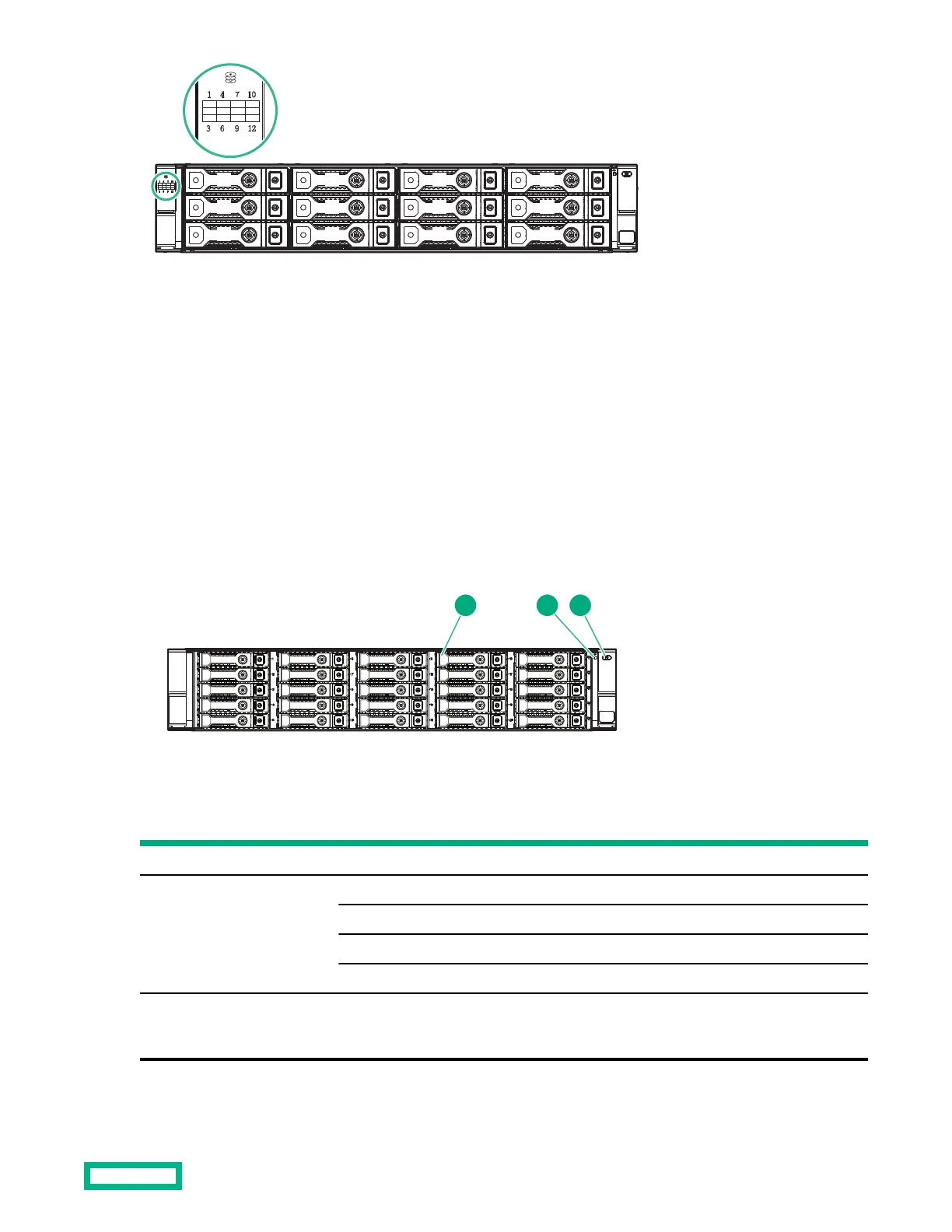

Figure 6: Small form factor disk enclosure - Front view
Item
Description Status State
1 HDD N/A N/A
2 System health LED Solid green Startup or system functioning properly
Flashing amber Noncritical system fault
Solid amber Critical system fault
O No power
3 UID button When the UID button is pressed, the UID LED illuminates blue on the UID-health
module at the enclosure rear. The blue UID LED is used for locating the enclosure from
the rack rear.
Reference 30
