HPE D3000 Installation Guide

To order a replacement part, contact an Hewlett Packard Enterprise-authorized service provider or see the Hewlett
Packard Enterprise Parts Store website.
D3600/D3610 Large form factor disk enclosure chassis
Each HPE D3600/D3610 enclosure includes the following standard components:
• D3600/D3610 base enclosure with redundant power supplies and fan modules
• Two integrated 12Gb SAS I/O Modules
• Rack mounting hardware kit
• Two 05m HD mini-SAS cables
• Two PDU interconnect cords
• Optional digital rain bezel
1 2 3 4

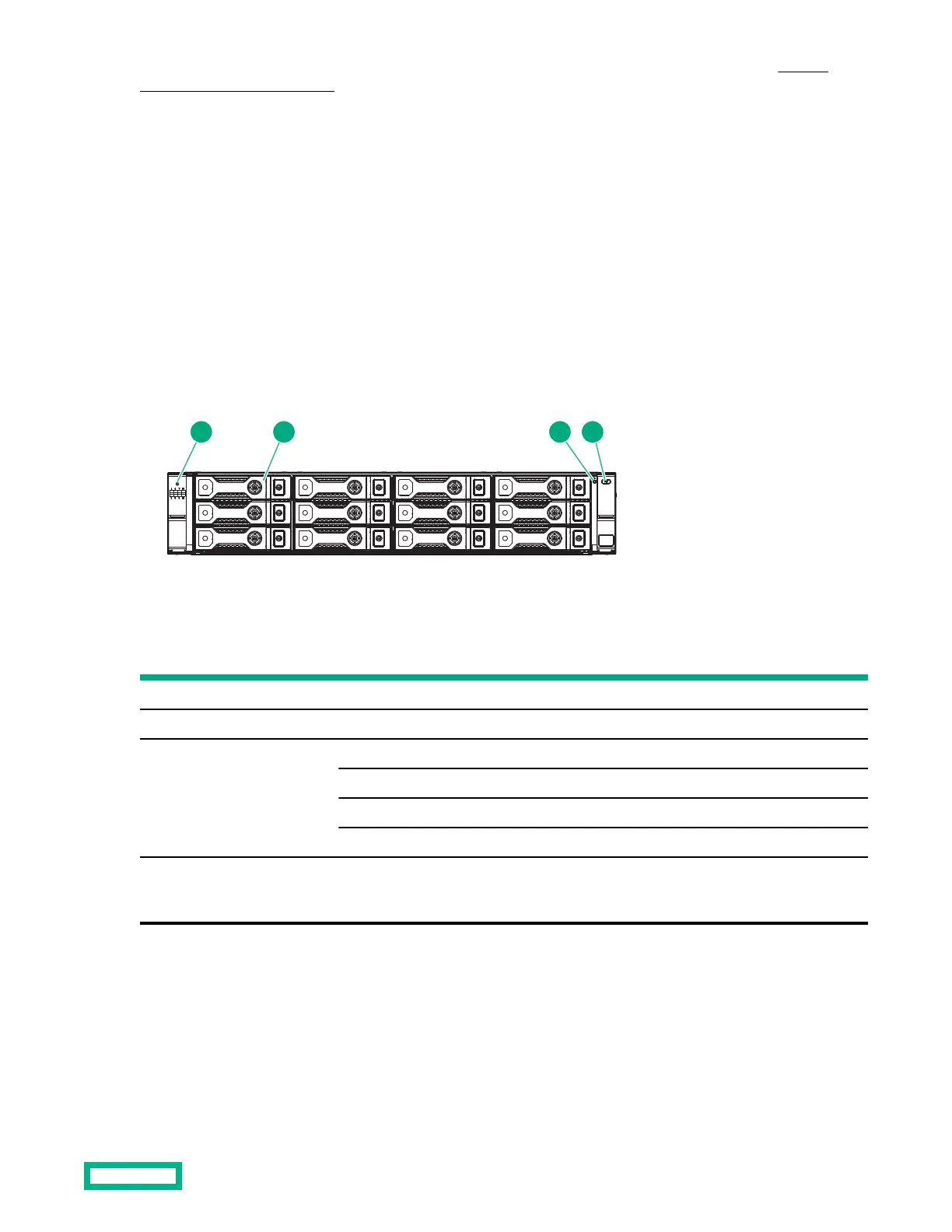

Figure 5: Large form factor disk enclosure - Front view
Item
Description Status State
1 Drive-bay legend N/A N/A
2 HDD N/A N/A
3 System health LED Solid green Startup or system functioning properly
Flashing amber Noncritical system fault
Solid amber Critical system fault
O No power
4 UID button When the UID button is pressed, the UID LED illuminates blue on the UID-health
module at the enclosure rear. The blue UID LED is used for locating the enclosure from
the rack rear.
Drive bay numbering - Large form factor disk enclosure chassis
Disk drives mount in bays on the front of the enclosure. Bays are numbered sequentially from top to bottom and left to
right. A drive-bay legend is included on the left bezel.
Reference
29
