State Definition NVDIMM-N Function LED
0 The restore operation is in progress. Flashing
1 The restore operation is successful. Solid or On
2 Erase is in progress. Flashing
3 The erase operation is successful. Solid or On
4 The NVDIMM-N is armed, and the NVDIMM-N is in
normal operation.
Solid or On
5 The save operation is in progress. Flashing
6 The NVDIMM-N finished saving and battery is still
turned on (12 V still powered).
Solid or On
7 The NVDIMM-N has an internal error or a firmware
update is in progress. For more information about an
NVDIMM-N internal error, see the IML.
Fast-flashing
More information
Viewing the IML on page 93
Storage module LEDs

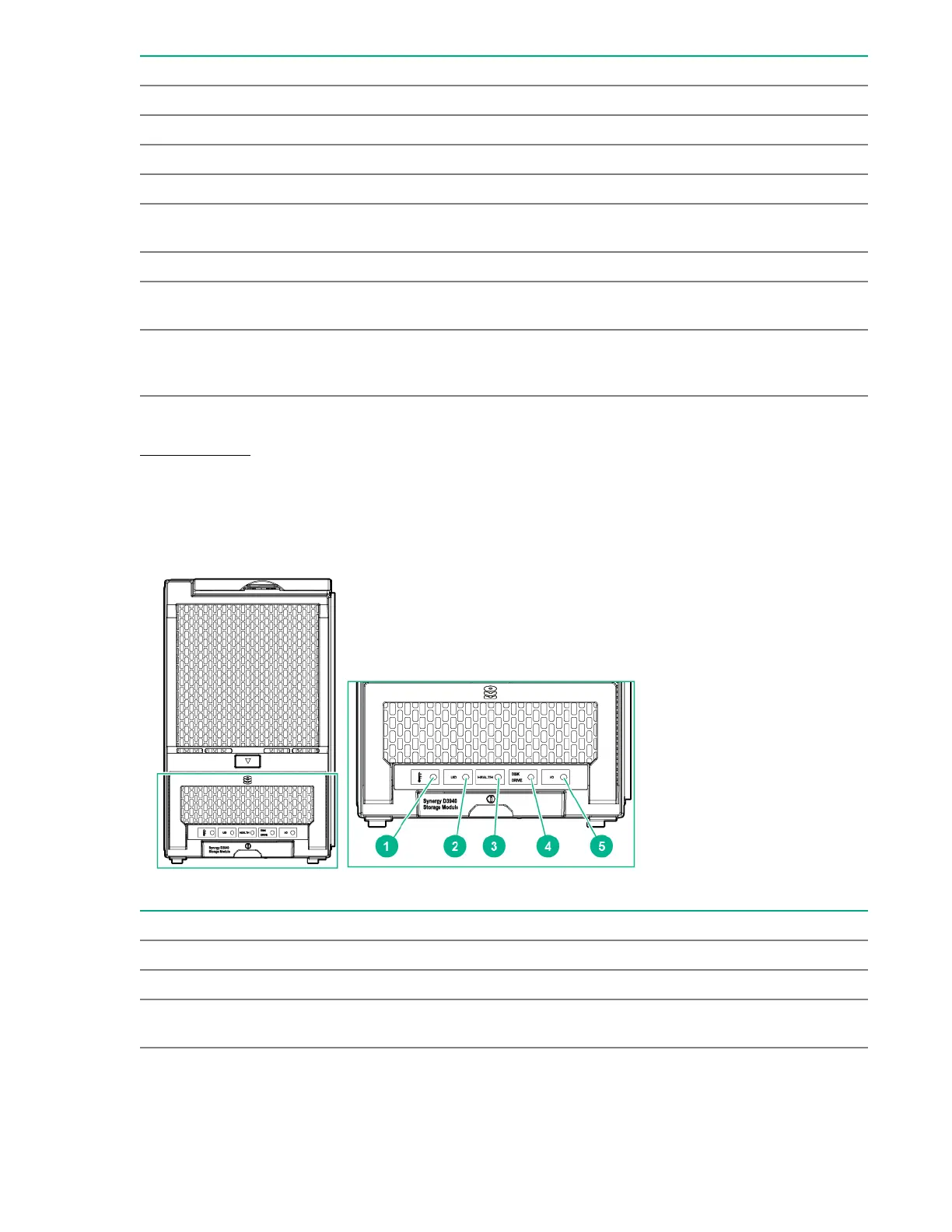

The front panel and LED layout shown in the following illustration is an example. Depending on your
specific model, the LEDs might be different.
Item LED Status Definition
1 Drawer status
1
Solid green Drive drawer is closed
Flashing green Drive drawer is open
Flashing amber Thermal warning, close
the drive drawer
Table Continued
Component and LED identification 75
