hpmont HD3L-4T5P5 User Manual

Chapter 5 Operation Instructions Shenzhen Hpmont Technology Co., Ltd.
―34― HD3L Series Controller User Manual
5.2.2 Display Status
The keypad can display parameters at stop, run, edit, alarm and special status.
Parameter display status at stop / run
When HD3L is in stop / sun status, the keypad will display stop / run status and its parameters, and the
unit indicator displays unit, as shown in Figure 5–1.
Other parameters stop (F15.08-F15.13) / run (F15.02-F15.07) can be displayed by pressing .

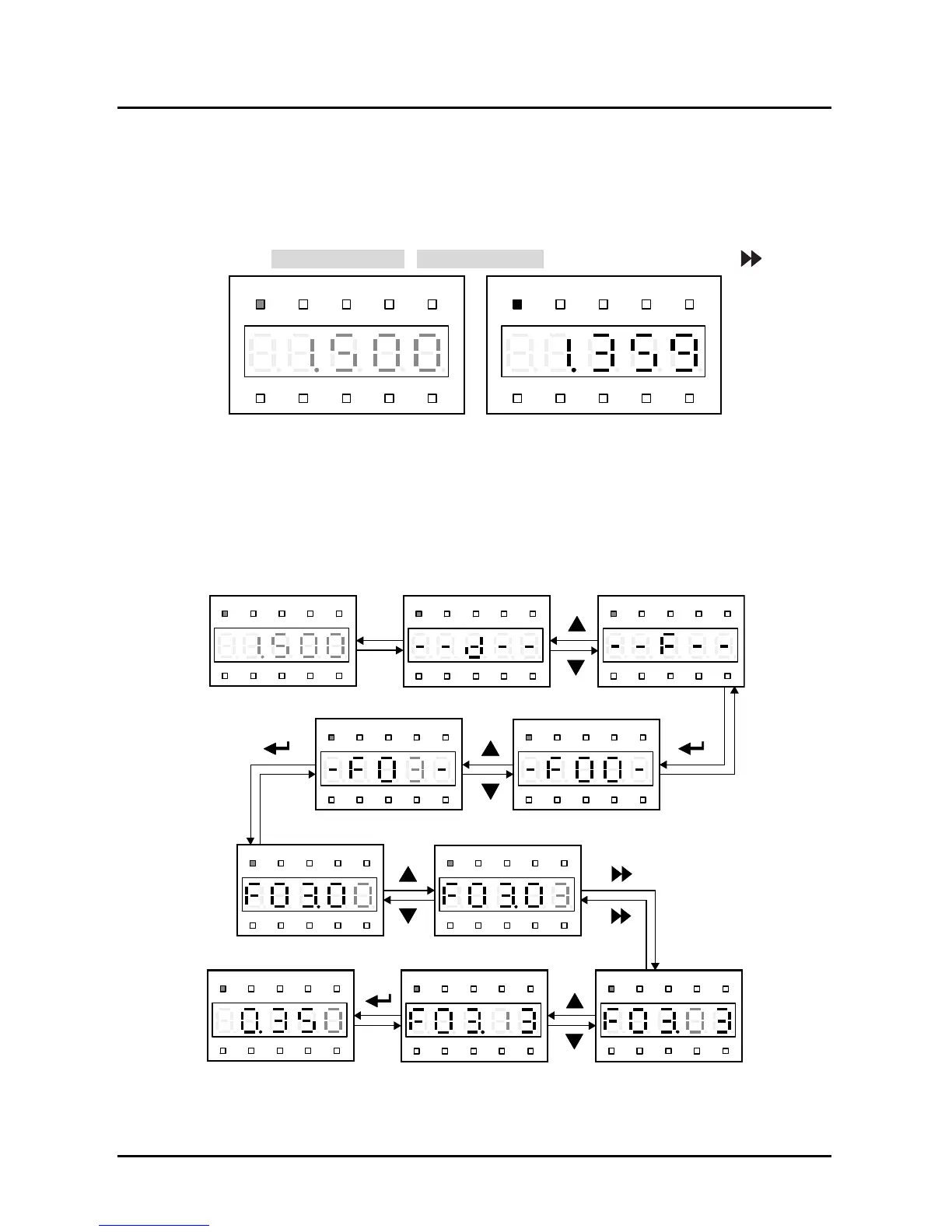

Figure 5–1 Display status of stop (left) and run (right)
Four-level menu switching operation
The keypad uses four-level menu configuration for parameter setting or other operations.
Configuring mode can be displayed in 4-level menu:
mode setting (first-level)
→
function parameter
group setting (second-level)
→
function parameter setting (third-level)
→
parameter setting
(fourth-level)
. The operation process is shown in Figure 5–2 and the description of the keys is shown in
Table 5-4.
Figure 5–2 Four-level operation process
Hz
AVRPM%
REVFWD ALM LO/RE LOCK
Hz
AVRPM%
REVFWD ALM LO/RE LOCK
Hz
AVRPM%
REVFWD ALM LO/RE LOCK
Hz A V RPM %
REVFWD ALM LO/RE LOCK
Hz
AVRPM%
REVFWD ALM LO/RE LOCK
Hz
AVRPM%
REVFWD ALM LO/RE LOCK
Hz
AVRPM%
REVFWD ALM LO/RE LOCK
Hz
AVRPM%
REVFWD ALM LO/RE LOCK
Hz
AVRPM%
REVFWD ALM LO/RE LOCK
Hz
AVRPM%
REVFWD ALM LO/RE LOCK
Hz
AVRPM%
REVFWD ALM LO/RE LOCK
Hz
AVRPM%
REVFWD ALM LO/RE LOCK
PRG
PRG
PRGPRG
PRG
Stop status First-level menu First-level menu
Second-level menu Second-level menu
Third-level menu Third-level menu
Third-level menuFourth-level menu Third-level menu
