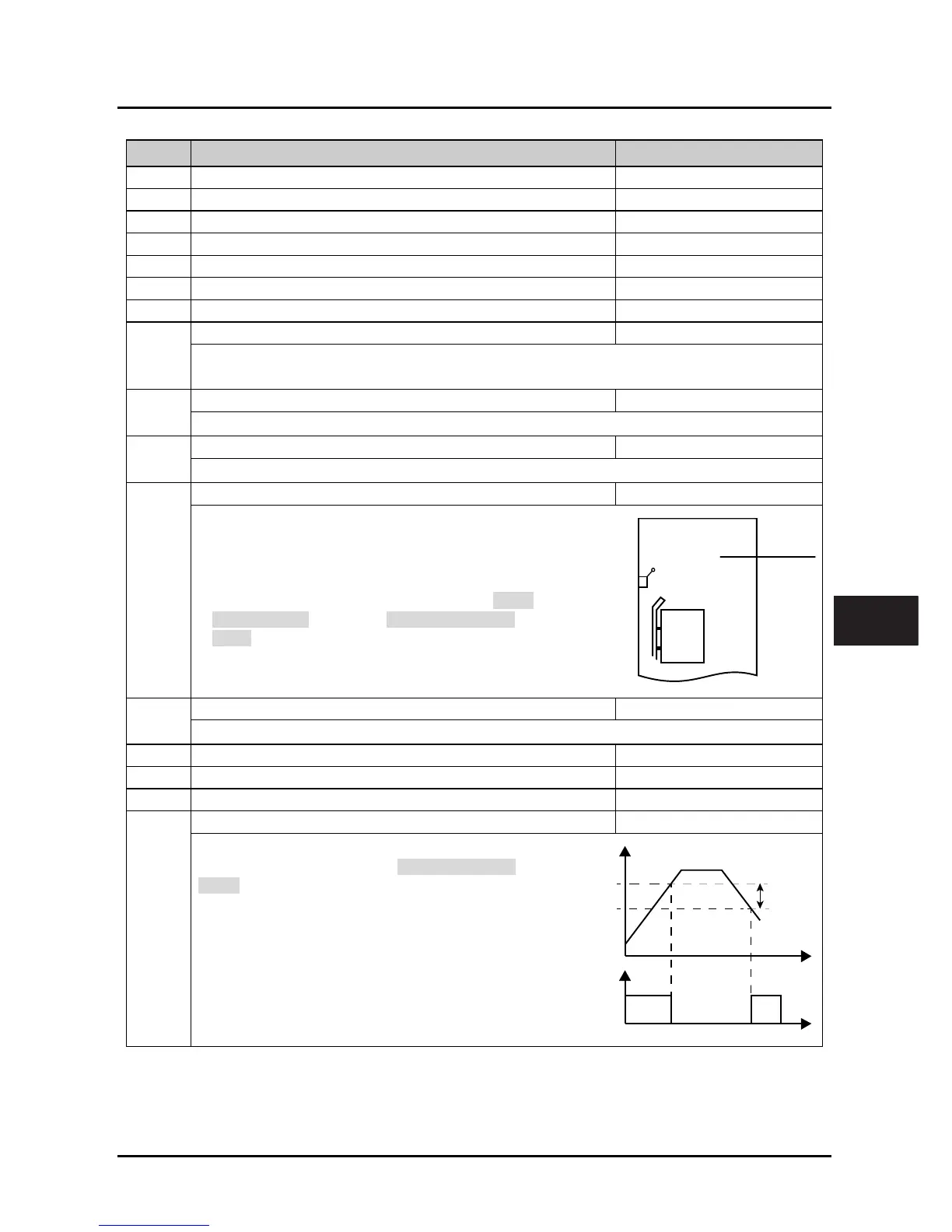

6.2.6 F05: Speed Parameters
Ref. Code Function Description Setting Range [Default]
F05.00 Multi-speed 0 0.000 - F00.02 [0.000m/s]
F05.01 Multi-speed 1 0.000 - F00.02 [0.000m/s]
F05.02 Multi-speed 2 0.000 - F00.02 [0.000m/s]
F05.03 Multi-speed 3 0.000 - F00.02 [0.000m/s]
F05.04 Multi-speed 4 0.000 - F00.02 [0.000m/s]
F05.05 Multi-speed 5 0.000 - F00.02 [0.000m/s]
F05.06 Multi-speed 6 0.000 - F00.02 [0.000m/s]
F05.07 Multi-speed 7 0.000 - F00.02 [0.000m/s]
F05.00 - F05.07 define the MS running speed which is used in MS run mode.
• F00.02 defines the rated speed of elevator.
F05.08 Inspection run speed 0.000 - 0.630 [0.200m/s]
Defines the running speed of elevator in inspection mode.
F05.09 Battery driven run speed 0.000 - F00.02 [0.100m/s]
Defines the running speed of elevator in the battery driven run mode.
F05.10 Up forced speed switch detection value 0.0 - 100.0 (F00.02) [97.0%]
Defines the speed detection value at the forced
switch action.
• After forced switch act, the running speed exceeds
speed switch detection value, and decelerates to F05.22
(creeping speed) according to F03.12 (abnormal Dec
speed).
• Properly set F05.10 to avoid climbing elevator at
elevator up.
F05.11 Down forced speed switch detection value 0.0 - 100.0 (F00.02) [97.0%]
To avoid plunging elevator at elevator down. Refer to F05.10.
F05.12 FDT1 0.0 - 100.0 (F00.02) [90.0%]
F05.13 FDT2 0.0 - 100.0 (F00.02) [90.0%]
F05.14 FDT1 delay level 0.0 - 100.0 (F00.02) [1.0%]
F05.15 FDT2 delay level 0.0 - 100.0 (F00.02) [1.0%]
When running speed is lower than one speed (F05.12 +
F05.14) as FL in the right figure, ON indicating signal will
output till the running speed is lower than F05.12.
• Refer to parameter F05.12 and F05.14 about F05.13 and
F05.15.
Car
Up forced
Dec switch
Shaft top space
Top floo
