6.2.4 F03: Acc / Dec Parameters
Ref. Code Function Description Setting Range [Default]
F03.00 Acc speed 0.020 - 9.999 [0.700m/s
2
]
F03.01 Start Acc jerk 0.020 - 9.999 [0.350m/s
3
]
F03.02 End Acc jerk 0.020 - 9.999 [0.600m/s
3
]
F03.03 Dec speed 0.020 - 9.999 [0.700m/s
2
]
F03.04 Start Dec jerk 0.020 - 9.999 [0.600m/s
3
]
F03.05 End Dec jerk 0.020 - 9.999 [0.350m/s
3
]

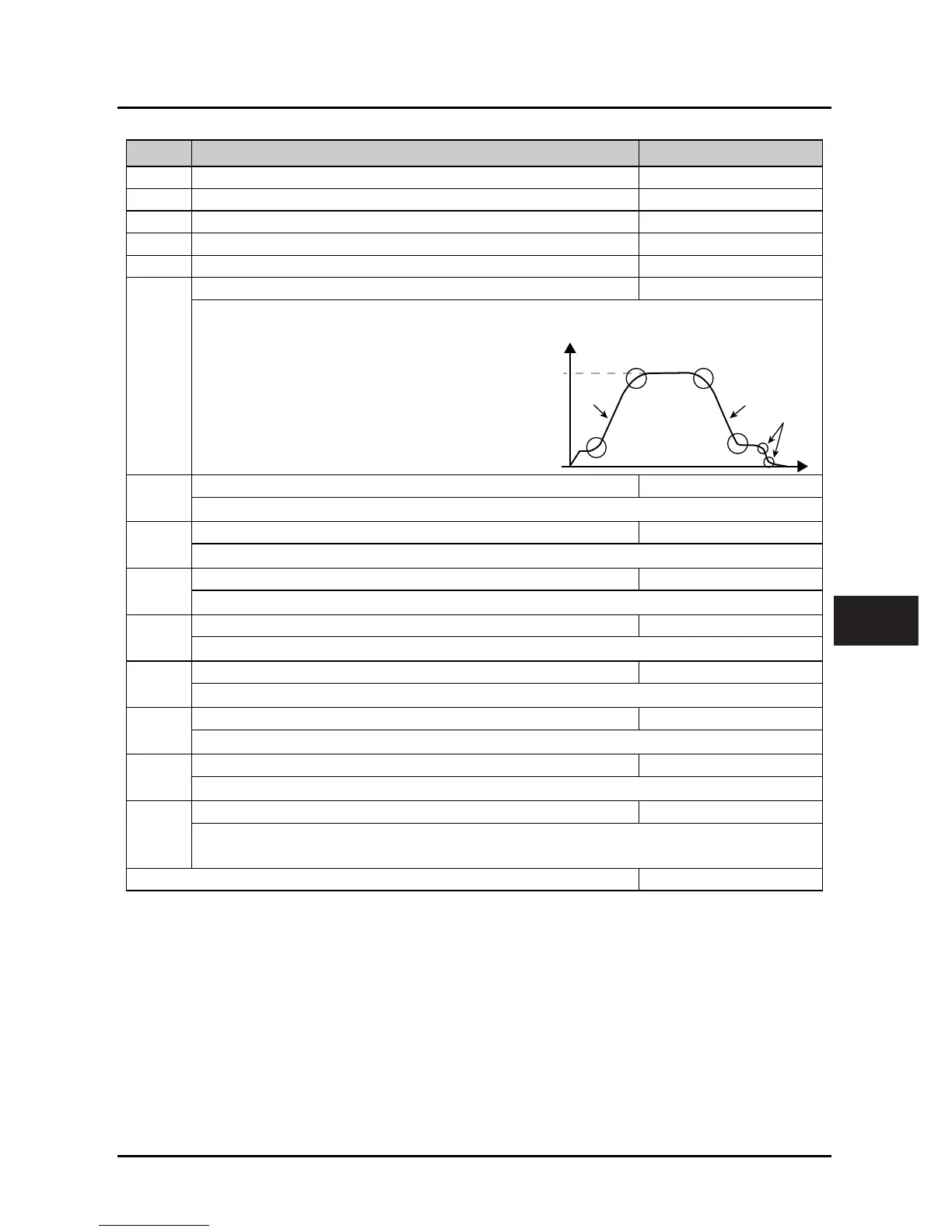

F03.00 - F03.05 adjust the elevator speed via S-curve which can cushion the shock at elevator start / stop
and improve riding comfort.
• Acc jerk: The change ratio of Acc.
• See the right figure for the adjustment of S-curve.
• The S-curve becomes steeper when parameter
values are raised;
• The S-curve becomes slower when parameter
values are decreased.
F03.06 Inspection Acc speed 0.020 - 9.999 [0.200m/s
2
]
Defines the Acc speed of elevator at inspection run mode.
F03.07 Inspection Dec speed 0.020 - 9.999 [1.000m/s
2
]
Defines the Dec speed of elevator at inspection run mode.
F03.08 Battery driven Acc speed 0.020 - 9.999 [1.000m/s
2
]
Defines the Acc speed of elevator at battery driven mode.
F03.09 Battery driven Dec speed 0.020 - 9.999 [1.000m/s
2
]
Defines the Dec speed of elevator at battery driven mode.
F03.10 Motor auto-tuning Acc speed 0.020 - 9.999 [0.100m/s
2
]
Defines the Acc speed at auto-tuning of the motor.
F03.11 Motor auto-tuning Dec speed 0.020 - 9.999 [0.100m/s
2
]
Defines the Dec speed at auto-tuning of the motor.
F03.12 Abnormal Dec speed 0.020 - 9.999 [1.000m/s
2
]
Defines the Dec speed at valid forced dec or wrong run mode.
F03.13 Stop Dec jerk 0.020 - 9.999 [0.350m/s
3
]
Defines dec change rate from non-zero speed to zero speed.
• It can adjust the smooth stop of the elevator and add riding comfort.
F03.14 - F03.20 Unused
0
