Upload and download parameters
Upload: When set the function parameter F01.03 = 1, it uploads the setting value to the panel.
When the upload is finished, the panel will jump to display F01.00.
Download: When set the function parameter F01.02 = 2, it downloads the setting value from the
panel. When the download is finished, the panel will jump to display F01.03.
The upload and download parameters are as shown in.

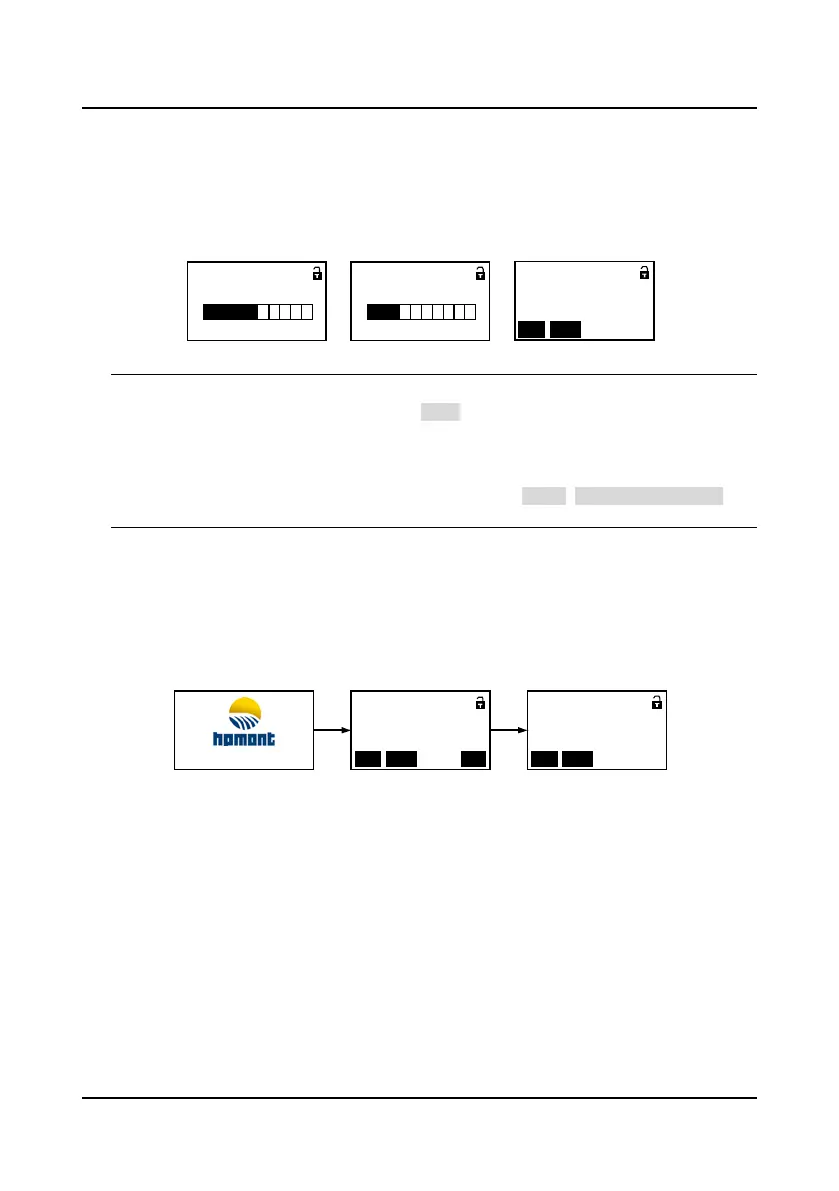

Figure 5-13 Display upload and download parameters
Note:
1. When downloading parameters, it displays “dFAiL” which represents that the EEPROM
storage parameters of panel and the function parameters of present controller do not match.
First, you need upload the setting value of the correct function code to the EEPROM of panel,
and then you can download.
2. When upload or download parameters, the panel displays “E0022” (panel EEPROM fault). It
will jump to next function code 10 seconds later. The troubleshooting is in Chapter 8 (Page 99).
5.3 Initial Power On
It need carefully check before power is on. Please wire the controller according to the
specifications supplied by this manual.
After checking the wiring and mains supply voltage, switch on the circuit breaker and the
controller will be initialization. The panel will display as shown in Figure 5-14.
Figure 5-14 Display initialing panel
Para. being uploaded
Upload progress:
050%
=0 1.5 0 0 m/s
停机状态参数
Dnload fail
=0 1.5 0 0 m/s
ALMSTOPUP LO/RE
Para. being dnloaded
Dnload progress :030%
=0 1.5 0 0 m/s
Hpmont Technology
Lu：
DC bus low
ALMSTOPUP LO/RE
Ready para.
Setting speed
= 1.5 0 0 m/s请按键以检测其有效性
ALMSTOPUP LO/RE
