HS-Technik NutBee NBLS-21 - Selection of Threaded Mandrel and Mouthpiece

- 25 -
 
NOTE
The threaded mandrel (sleeve) and the mouthpiece must be selected in
accordance with the blind rivet nut, blind rivet screw or earthing pin used.
You can use the riveng tool for processing dierent sizes and materials. When doing so,
note the exact specicaon of the blind rivet nut or the blind rivet screw and adjust the
threaded mandrel (sleeve) and mouthpiece.

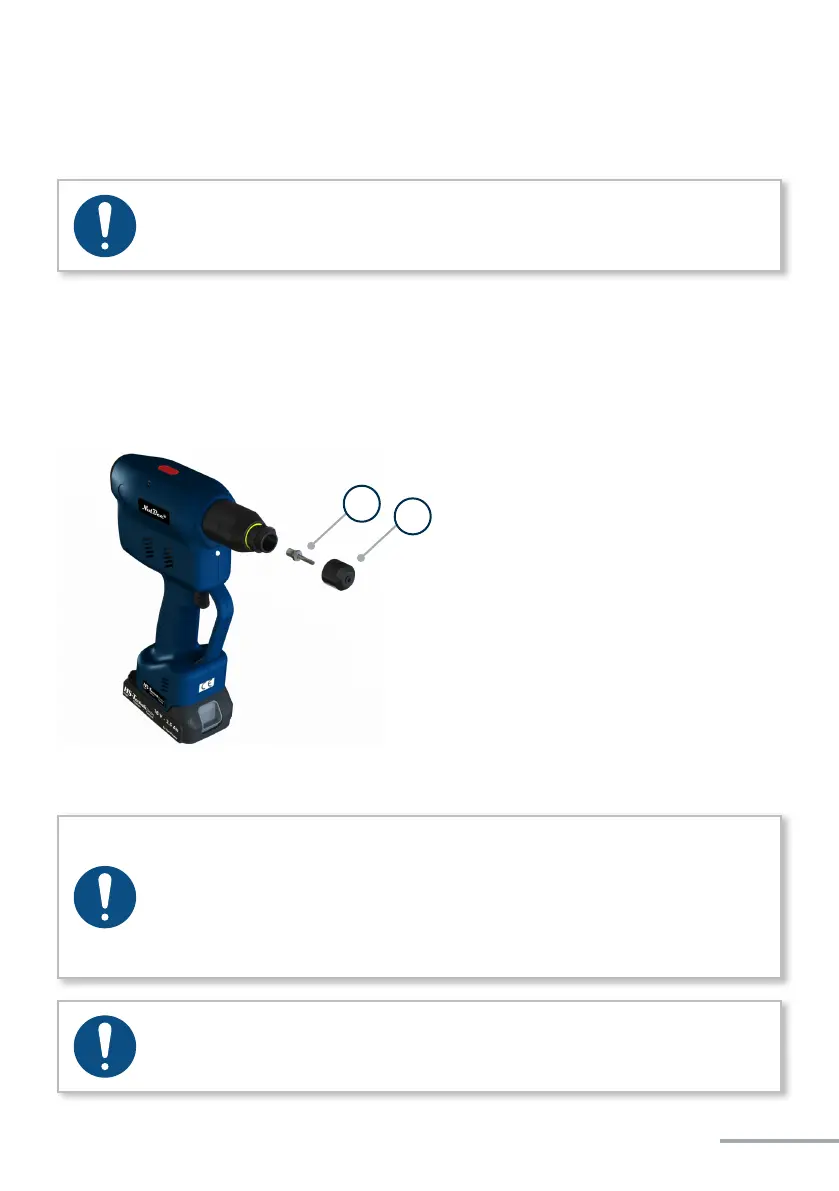

Blind rivet nuts M3 – M10
Blind rivet screws M3 – M8
1) Mouthpiece
2) Threaded mandrel
NOTE
Use only the appropriate traction head for your blind rivet nut or blind rivet
screw. Non-compliance may cause damage to riveting machine. Furthermore,
material damages can result from a damaged thread. Do not use force, the
traction the traction head as well as the blind rivet nuts and blind rivet screws
must be able to be tightened by hand.
NOTE
Assemble the traction heads only in accordance with the quick guides
provided by HS-Technik GmbH.
2
1
