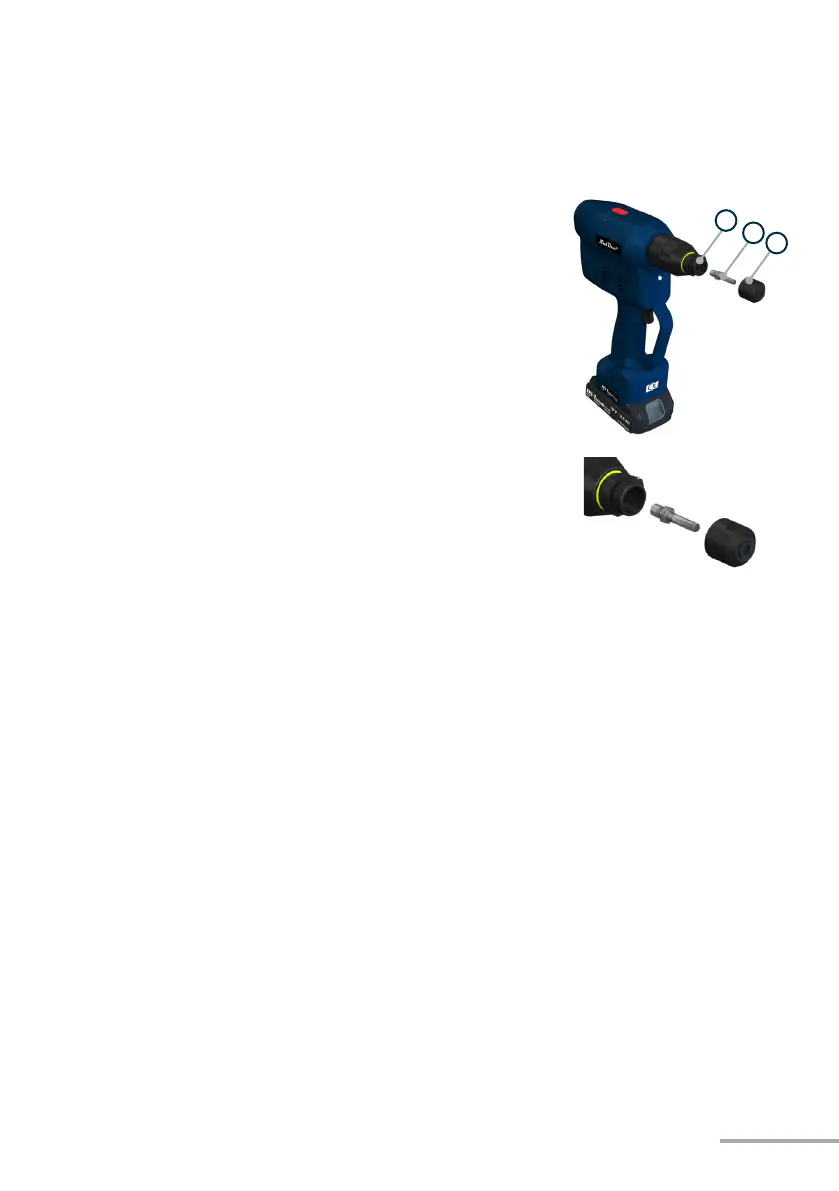

Loosen and remove the mouthpiece (1).
In order to clean or replace the threaded mandrel (2) pull back
the silver lock ring (3) and loosen the mandrel by turning.
If the housing can not be loosened by hand it can be loosened
using two SW24 keys.
These components can be cleaned using a wire brush or
a cloth. Any shavings should be removed. Then check the
mandrel and replace if necessary.
Then reassemble the device in reverse order. While doing so
ensure that the threaded mandrel is again locked into place
ush with the lock ring.
We recommend an annual machine capability study for high quality standards and a long
life span. This can be combined with maintenance and inspecon of the overall tool.
The machine capability study can be completed by HS-Technik GmbH.
