28

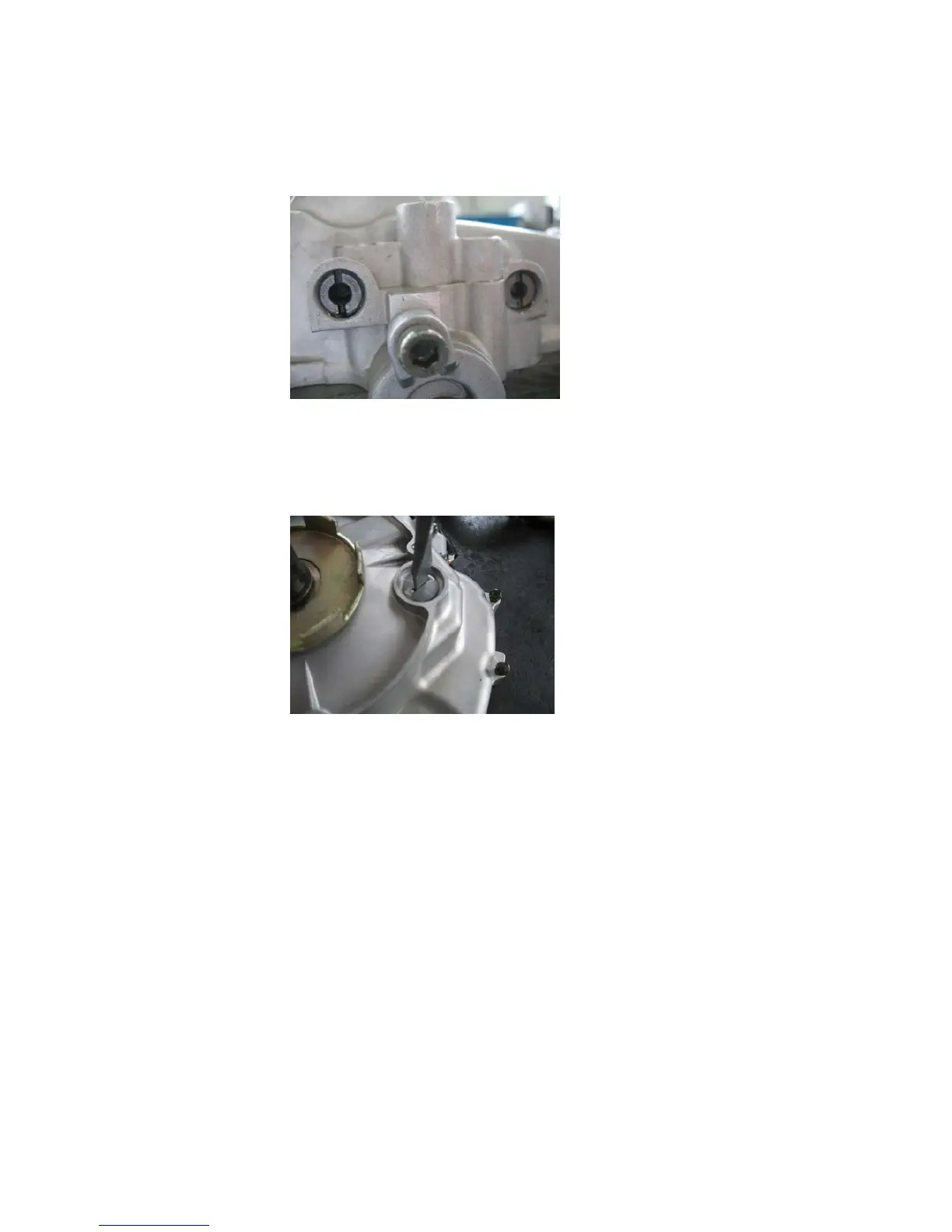

remove lower rocker arm shaft.See figure 2-28
Figure 2-28
Remove vision hole cover of left front cover .See figure 2-29
Figure 2-29
Alignment: asjust these two ＂●＂symbols of the cam chain wheel to
be at the same level with cylinder cover.
alignmentment of top dead center:
Rorate the crankshaft with “T” sleeve anti-clockwise until these
two ＂●＂symbols of the cam chain wheel to be at the same level
with cylinder cover .That is to say the piston of cylinder is at the top
dead center.
