29

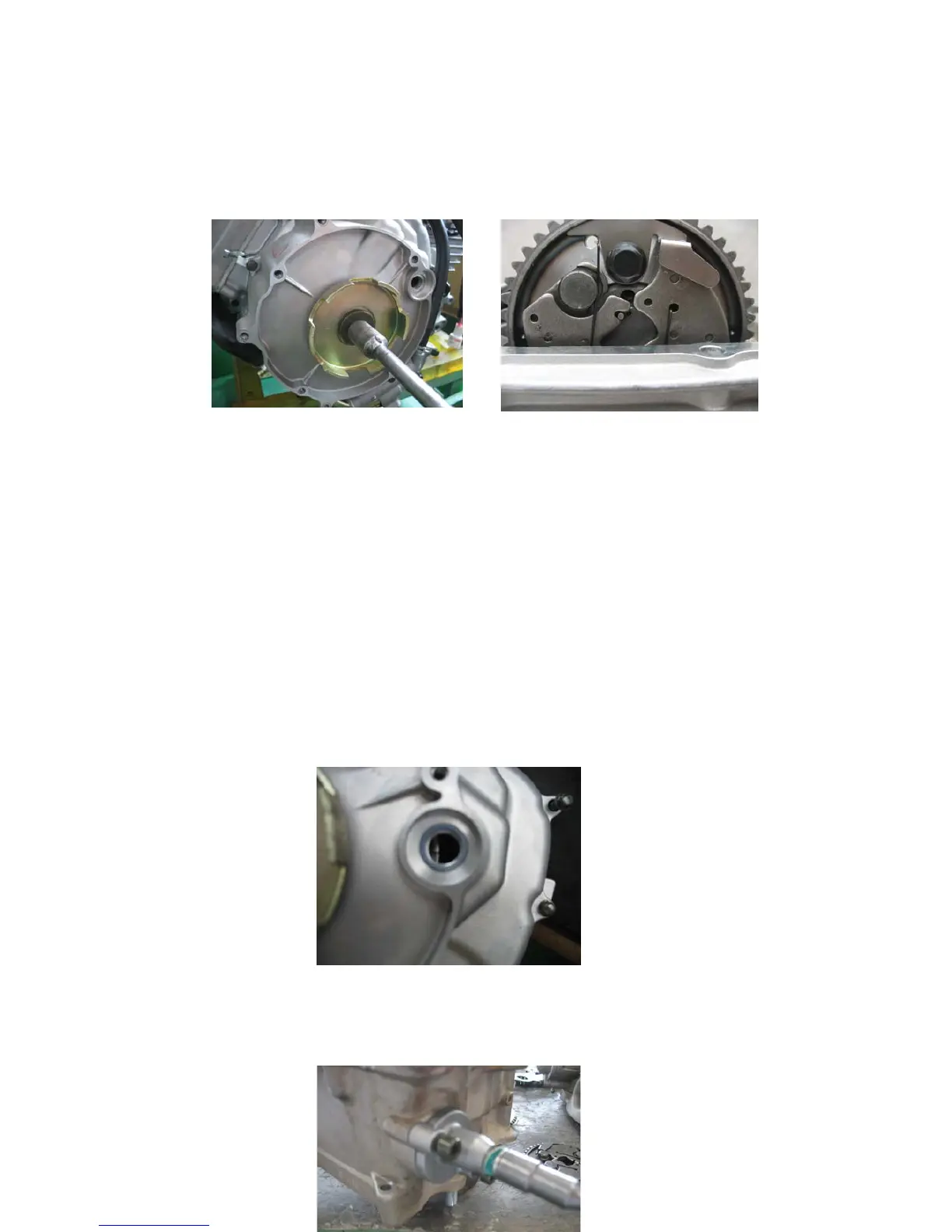

Inspection of compression top dead center:
See figure 2-30-1 and figure 2-30-2.
figure 2-30-1 figure 2-30-2.
When inlet valve spring rise,rotate the crankshaft until the “T”
indicator on the magneto rotor to be at the same level with the center
of vision hole cover of left front cover.That is to say the piston is at
the compression top dead center and there are valve clearance in
these four rocker arms of cylinder head. See figure 2-31
Figure 2-31
Remove chain tensioner adjuster.See figure 2-32.
