40

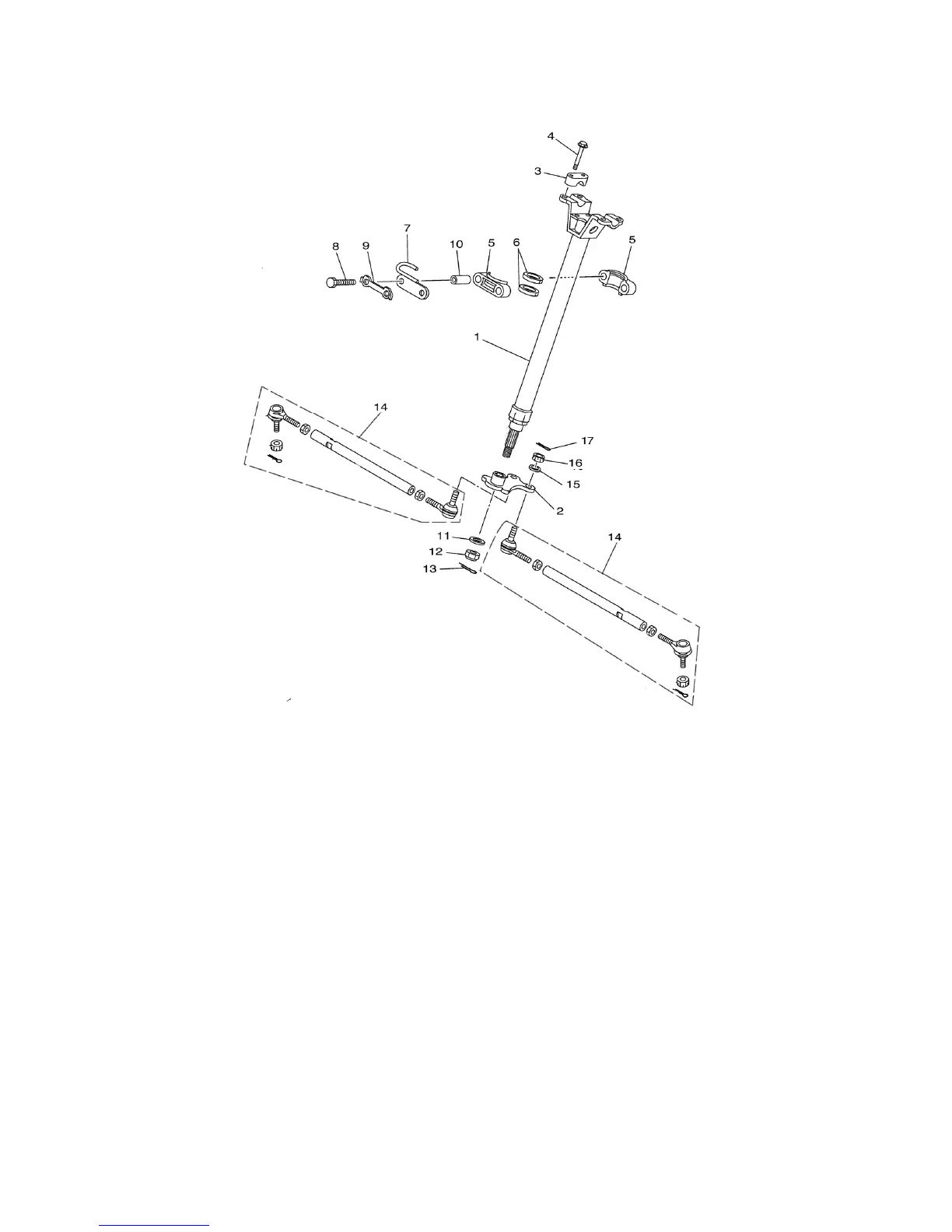

1、steering vertical column components 2、turning rocker arm components 3、Steering Bar
Clip 4、hexagon flange bolt M8×35
5、inner and external bearing of steering vertical column 6. supporting seal ring of steering vertical
column 7、Supporting stent 8、hex bolt M8×60
9、stop reverse piece 10、Supporting Collar Sheath 11、cushionф14×ф32×4 12、Hexagon
open-groove nut M14
13
cotter pin 3.2×32 14、tension rod assembly 15、、cushionф10 16 Hexagon open-groove nut
M10 17 cotter pin
