vertical column. Figure 4-1-5
Inspection method:
Assemble the steering vertical column to the main frame with
supporting bracket and M8 bolts etc. and rotate the steering bar to
ensure the column is not stuck or swinging.
In occasion of above problems, the supporting bracket must be
replaced.
Rotating Torque of the steering vertical column: 3-5N.m
4.1.1.3 Assembly of steering vertical column

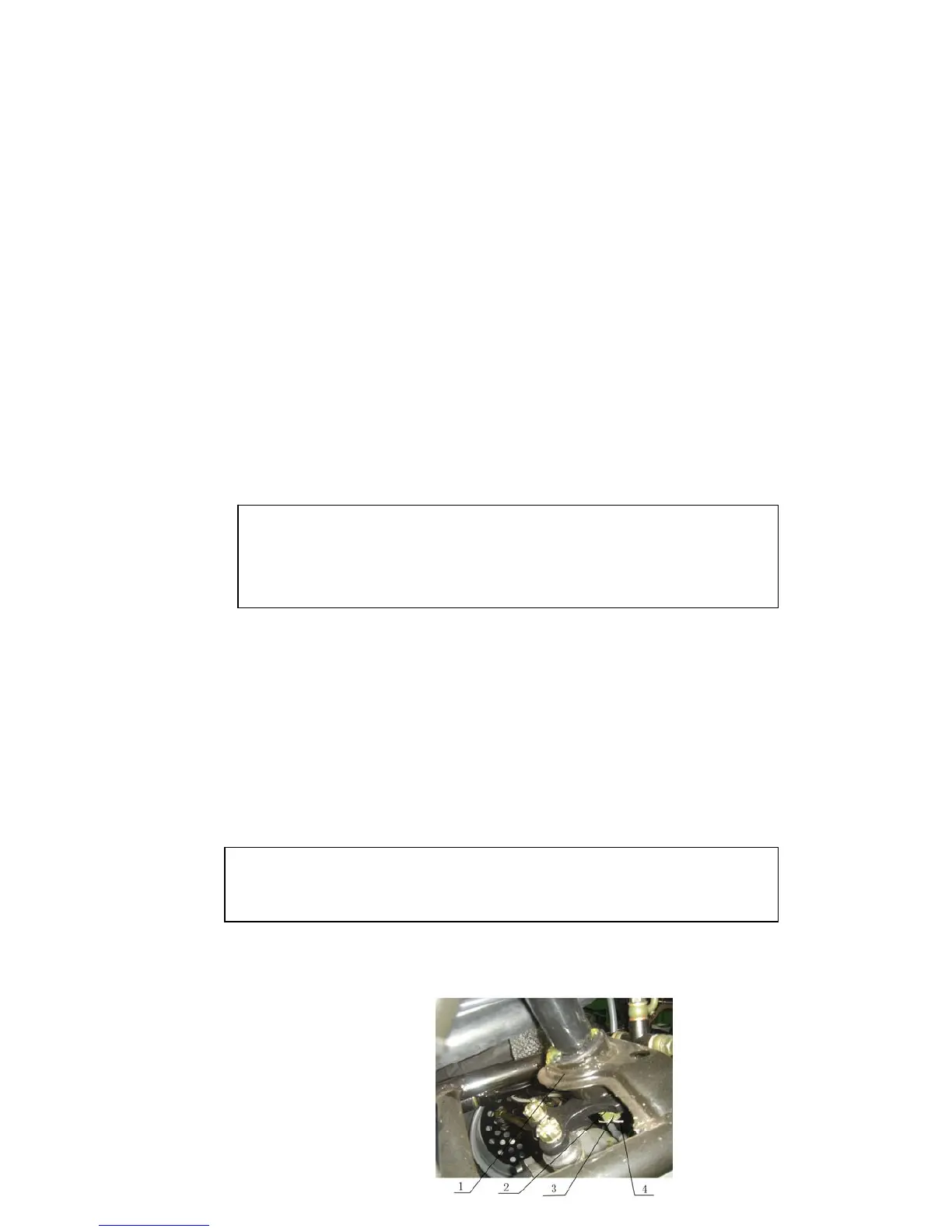

a、Firstly,fix the Turning rocker arms comp into the steering
vertical column.Then plug the steering vertical column into the
bottom seat and fix it with M14 open-groove nut
(1pcs),14×36×4 cushion (1pcs), collar sheath (1pcs) and 3.2×32
cotter pin (1pcs)( Figure 4-1-9).
Fastening Torque of M14 open-groove nut: 70-80N.m
Caution: before inserting the steering vertical column into the
bottom seat, both upper and lower oil seals must be
greased with lithium lubrication.
