2)Cushion ф10
3)Hexagon open-groove nut M12
4)Cotter pin 3.2×32
4.1.2 Disassembly, inspeciton and assembly of steering bar
4.1.2.1 Disassembly of steering bar
1.Remove all of the Plastic cover and Plastic oranments on
Steering Bar (Figure 4-1-1)
2.Remove steering bar clip（附图4-1-2）
3.Unplug all cables and wires and remove the steering bar
(Figure 4-1-3)
4.1.2.2 Inspection of steering bar
1.Check any existing or potential crack on the steering bar. In case
of above defects, the steering bar must be replaced(Figure

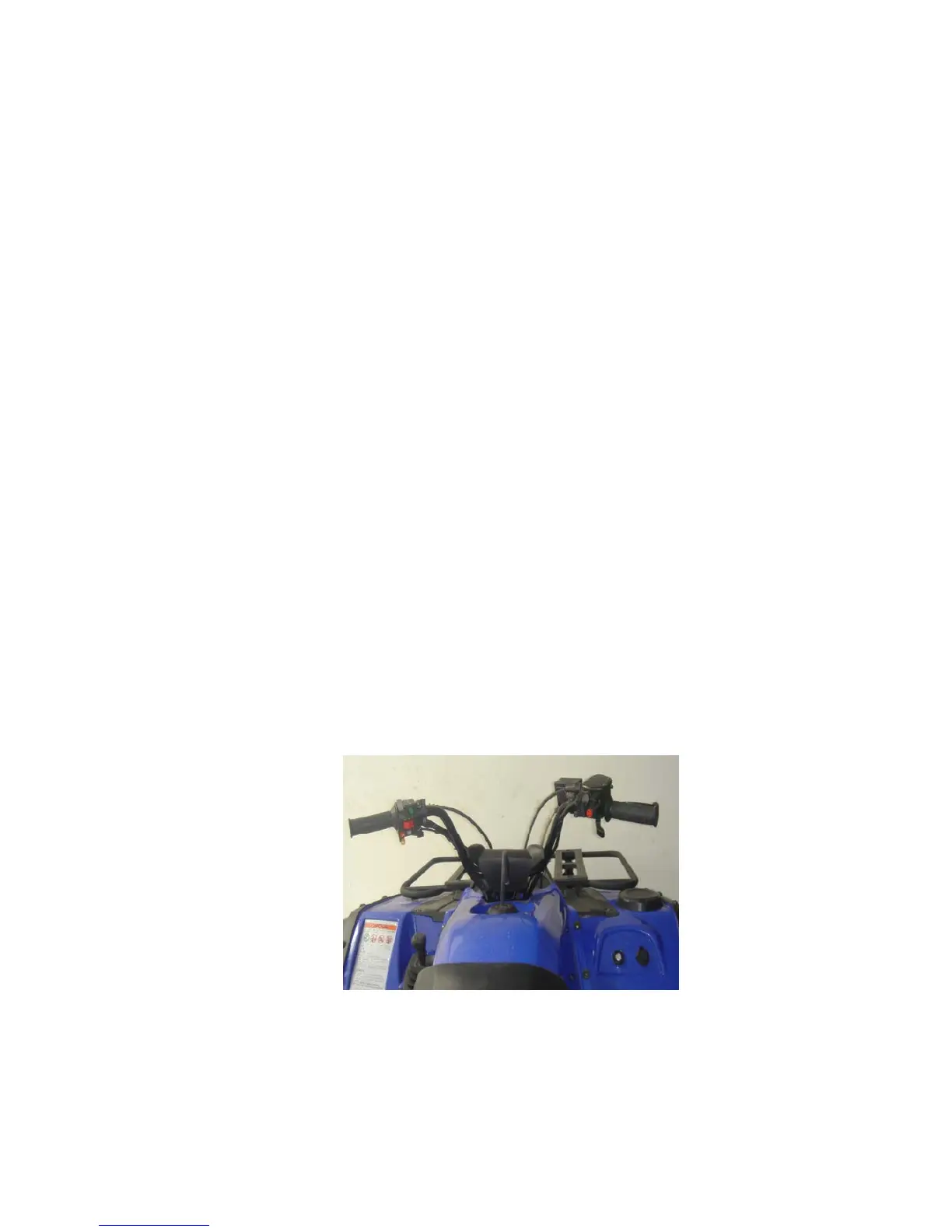

4-1-12)
Figure 4-1-12
2.Altitude balance on each end of the steering bar must be less
To Next Page
