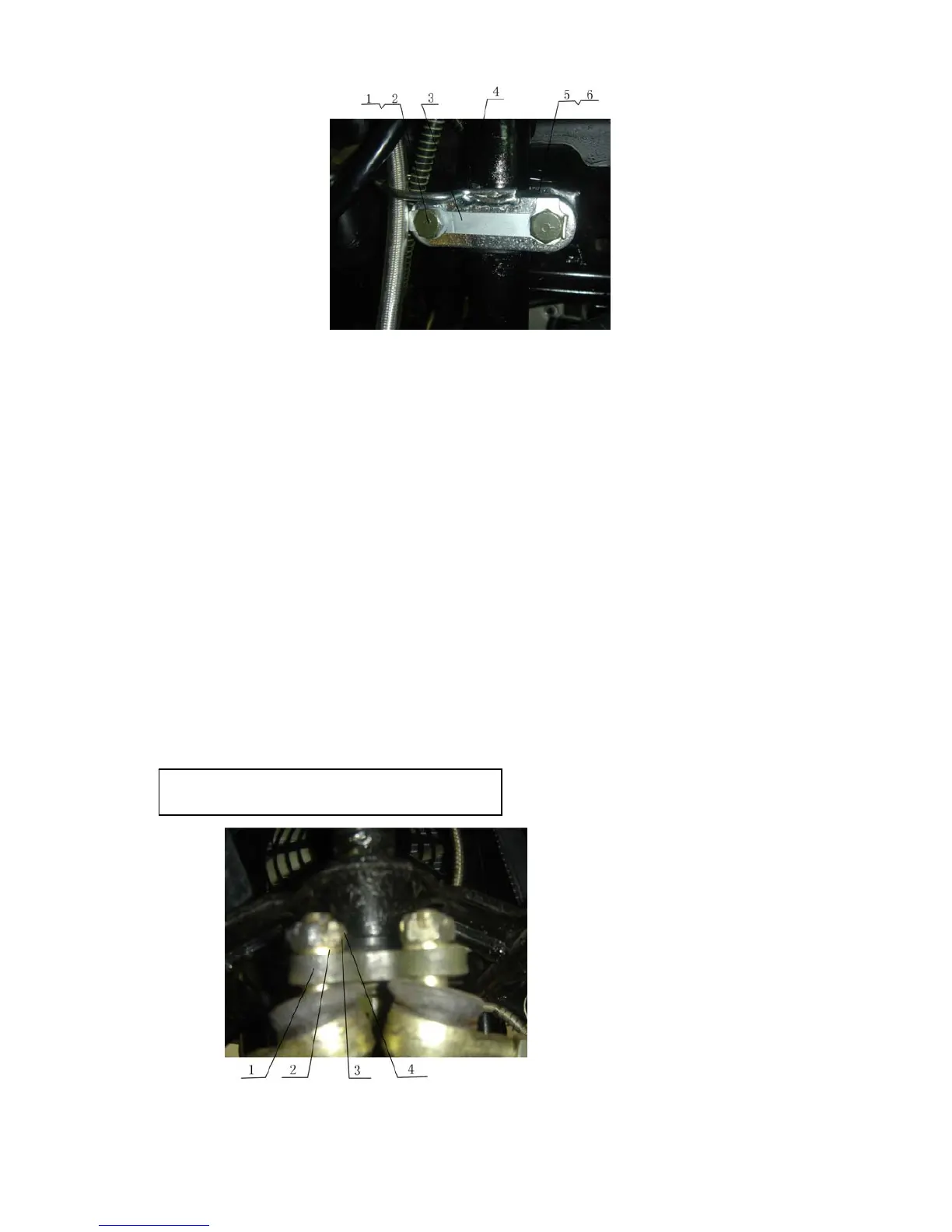

Figure 4-1-10
1)、 hexagon flange bolt M8*6
2)、Inner and outer supporting bracket
3)、stop reverse piece
4)、Supporting stent
5)、Supporting Collar Sheath
6)、Supporting ferrel
4.Fix the tension rod into the conical bore of the steering vertical column
with tension rod components (2sets), cushion12 (2pcs), M10 hexagon
open-groove nuts (2pcs) and cotter pins 3.2×32 (2pcs). Figure 4-1-11
Fastening Torque: 28N.m
Figure 4-1-11
1)Turning rocker arms comp
