54

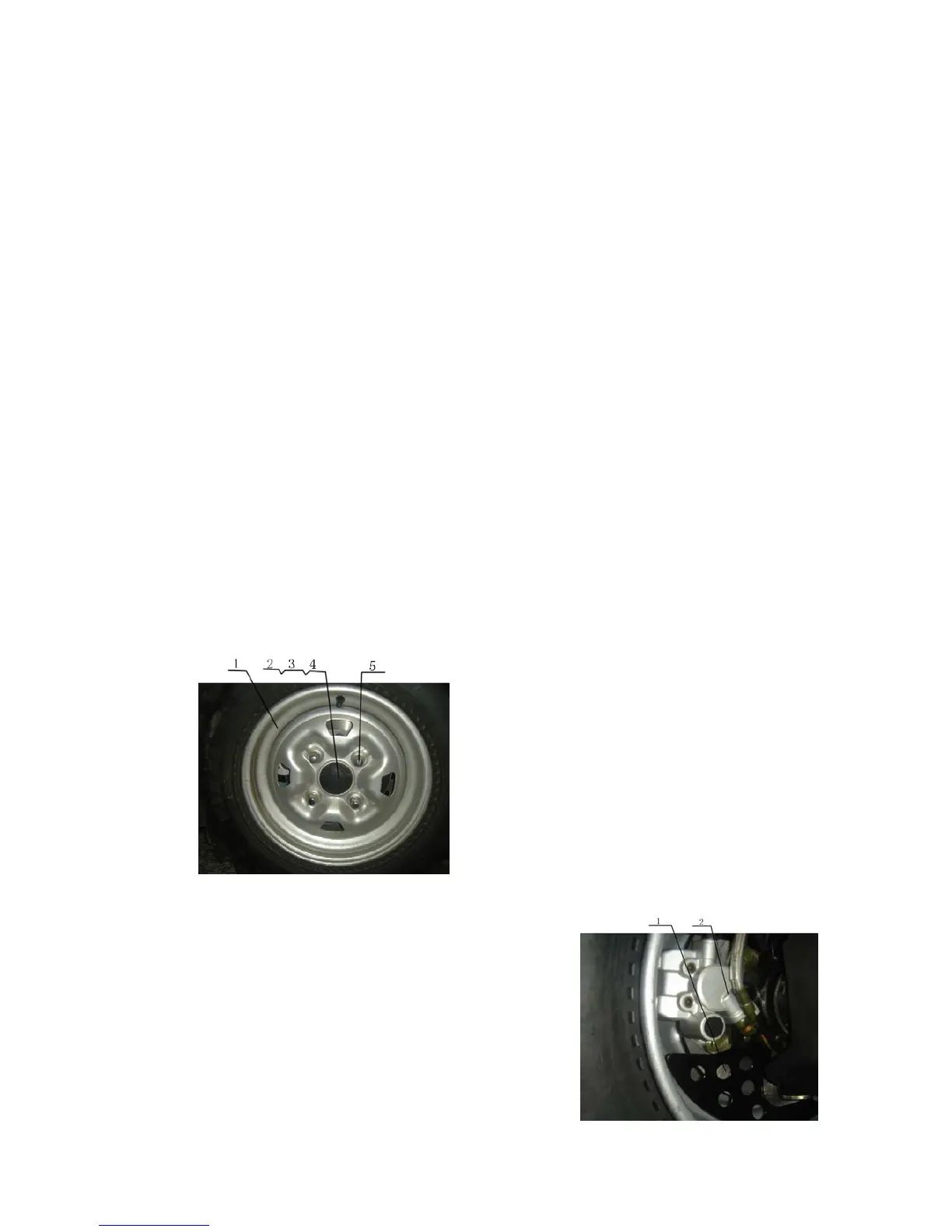

Figure 4-2-3
1)Brake plate clip
2)Hexagon self-lock nut M8
f)Disk brake plate uses hydraulic pressure of the brake fluid.
Therefore, fuel pipe must be periodically inspected and
replaced.
Inspection Method: Fuel pipe must be replace when worn
out, cracked or distorted.
4.2.1.1 Disassembly, inspection, maintenance and assembly of Front
Disk Brake System.
4.2.1.2 Disassembly of front disk brake plate
1、Removing the wheel component see Figure 4-2-4
1)front wheel hub
2)Hexagon open-groove nut M30
3) cotter pin 3.2*32
4)cushion
5)taper nut M10
Figure 4-2-4
2.Sequently remove the cotter pins,
open-groove nuts, cushion and front wheel hub
from the front wheel shaft. (Figure 4-2-4)
3.Remove the disk brake
plate from the front wheel hub.
